LUBRICATING THE LOADER
Lubrication Locations
Lubricate the loader as specified for the best
performance of the loader. (See SERVICE SCHEDULE
on Page 131.)
Record the operating hours each time you lubricate the
Bobcat loader.
Always use a good quality lithium based multipurpose
grease when you lubricate the loader. Apply the lubricant
until extra grease shows.
Remove attachment from the loader. (See Installing And
Removing The Attachment (Hand Lever Bob-Tach) on
Page 103.) OR (See Installing And Removing The
Attachment (Power Bob-Tach) on Page 105.)
Tilt the Bob-Tach forward until it contacts the ground. (Not
required on later models with Bob-Tach wedge grease
fittings that are accessible from the side.)
Stop the engine.
Lubricate the following:

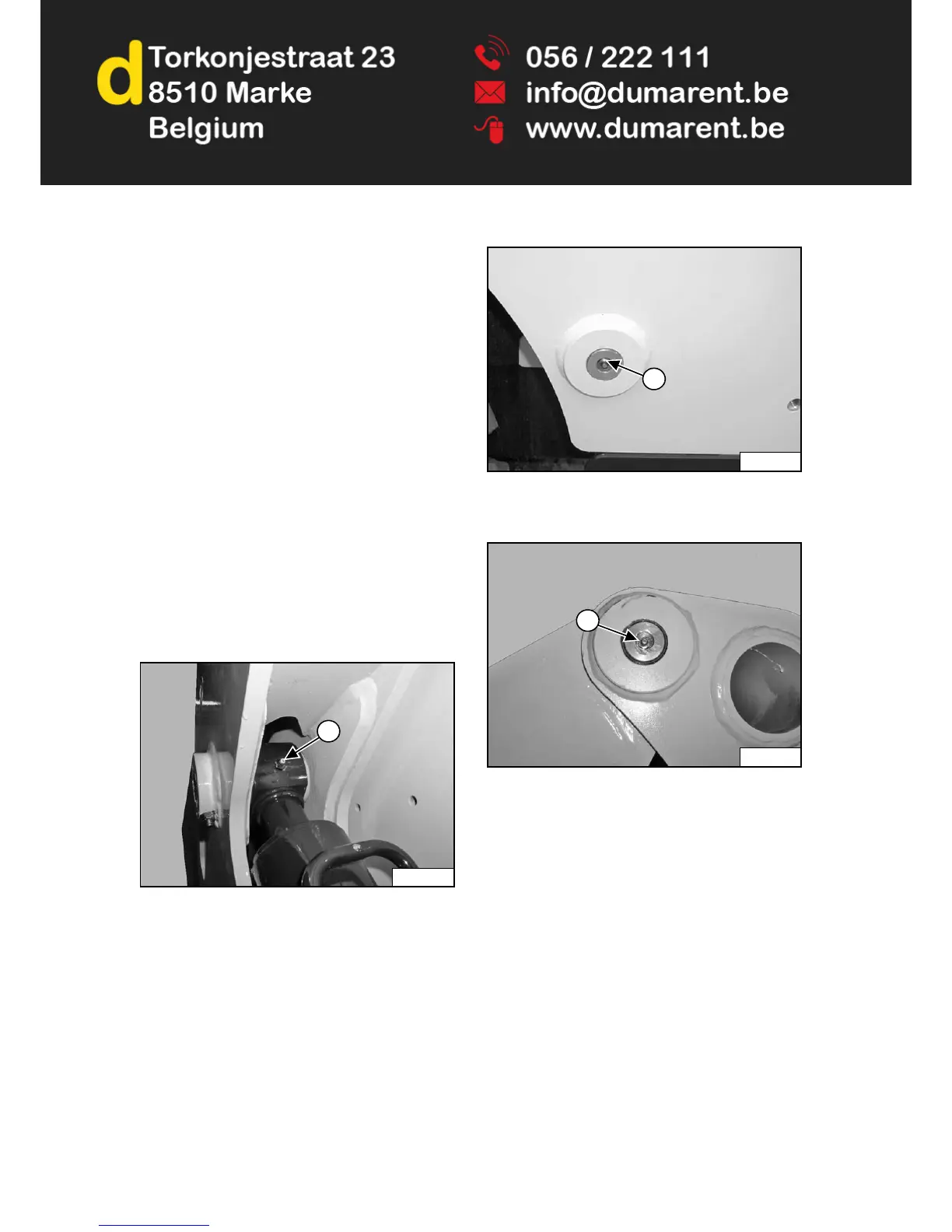

Figure 276
1. Rod End Lift Cylinder (Both Sides) (2) [Figure 276].
Figure 277
2. Base End Lift Cylinder (Both Sides) (2) [Figure 277].
Figure 278
3. Lift Arm Pivot Pin (Both Sides) (2) [Figure 278].
P100011
1
P-90572A
2
P-90543A
3
