179 S650 Operation & Maintenance Manual
LUBRICATING THE LOADER (CONT’D)

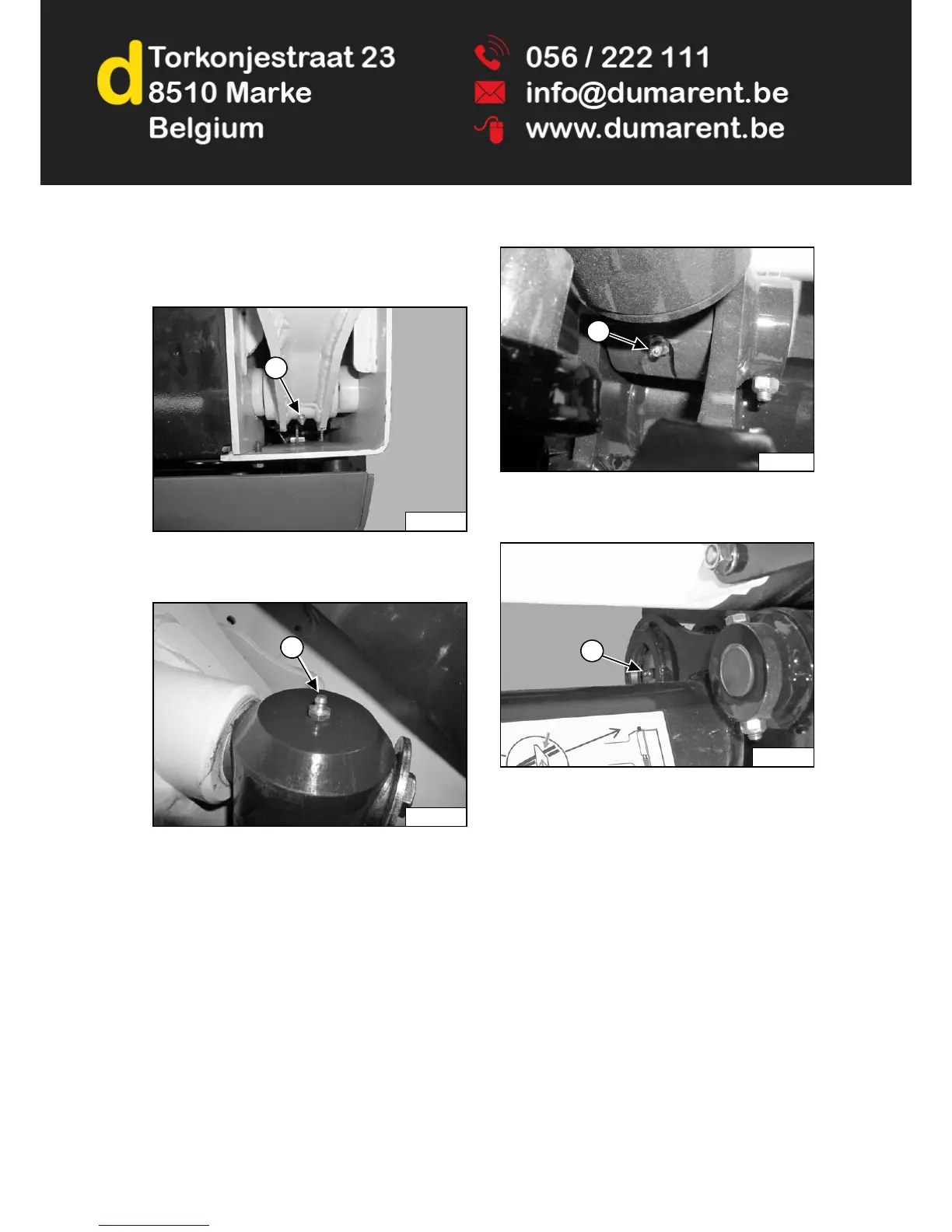

Lubrication Locations (Cont’d)
Figure 279
4. Lift Arm Link Pivot (Both Sides) (2) [Figure 279].
Figure 280
5. Base End Tilt Cylinder (Both Sides) (2) [Figure 280].
Figure 281
6. Rod End Tilt Cylinder (Both Sides) (2) [Figure 281].
Figure 282
7. Bob-Tach Pivot Pin (Both Sides) (2) [Figure 282].
P-90542A
4
P-85484
5
P-85720
6
P-85719A
7
