80 S650 Operation & Maintenance Manual
HYDRAULIC CONTROLS (CONT’D)
FRONT Auxiliary Hydraulics Operation

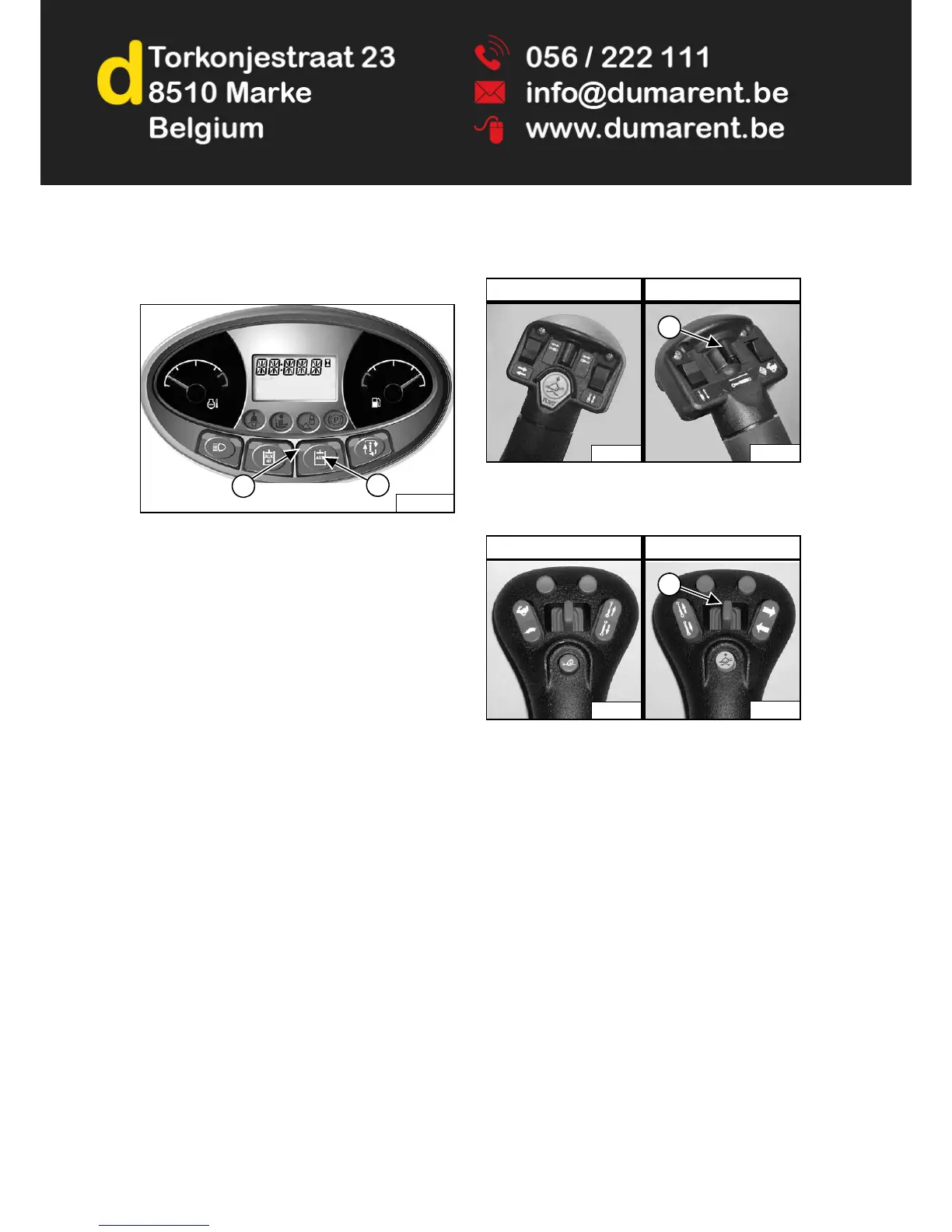

Figure 79
Press the auxiliary hydraulics button (Item 1) [Figure 79]
once to activate the auxiliary hydraulics.
The light (Item 2) [Figure 79] will be ON.
Standard, ACS And AHC (If Equipped)
Figure 80
SJC (If Equipped)
Figure 81
Move the front auxiliary hydraulic switch (Item 1)
[Figure 80] or [Figure 81] to the right or left to change
direction of the auxiliary hydraulic oil flow to the front
quick couplers. If you move the switch half-way, the
auxiliary functions move at approximately one-half
speed. (EXAMPLE: Open and close grapple teeth.)
Release the front auxiliary hydraulic switch to stop
hydraulic oil flow to the front quick couplers.
To deactivate the auxiliary hydraulics, press the auxiliary
hydraulics button (Item 1) [Figure 79] again.
The light (Item 2) [Figure 79] will be OFF.
NOTE: When the operator is seated and raises the
seat bar, the Auxiliary Hydraulic System
(Front and Rear) will deactivate.
