BLT421S Product Manual
16
Appendix A - Care/Maintenance

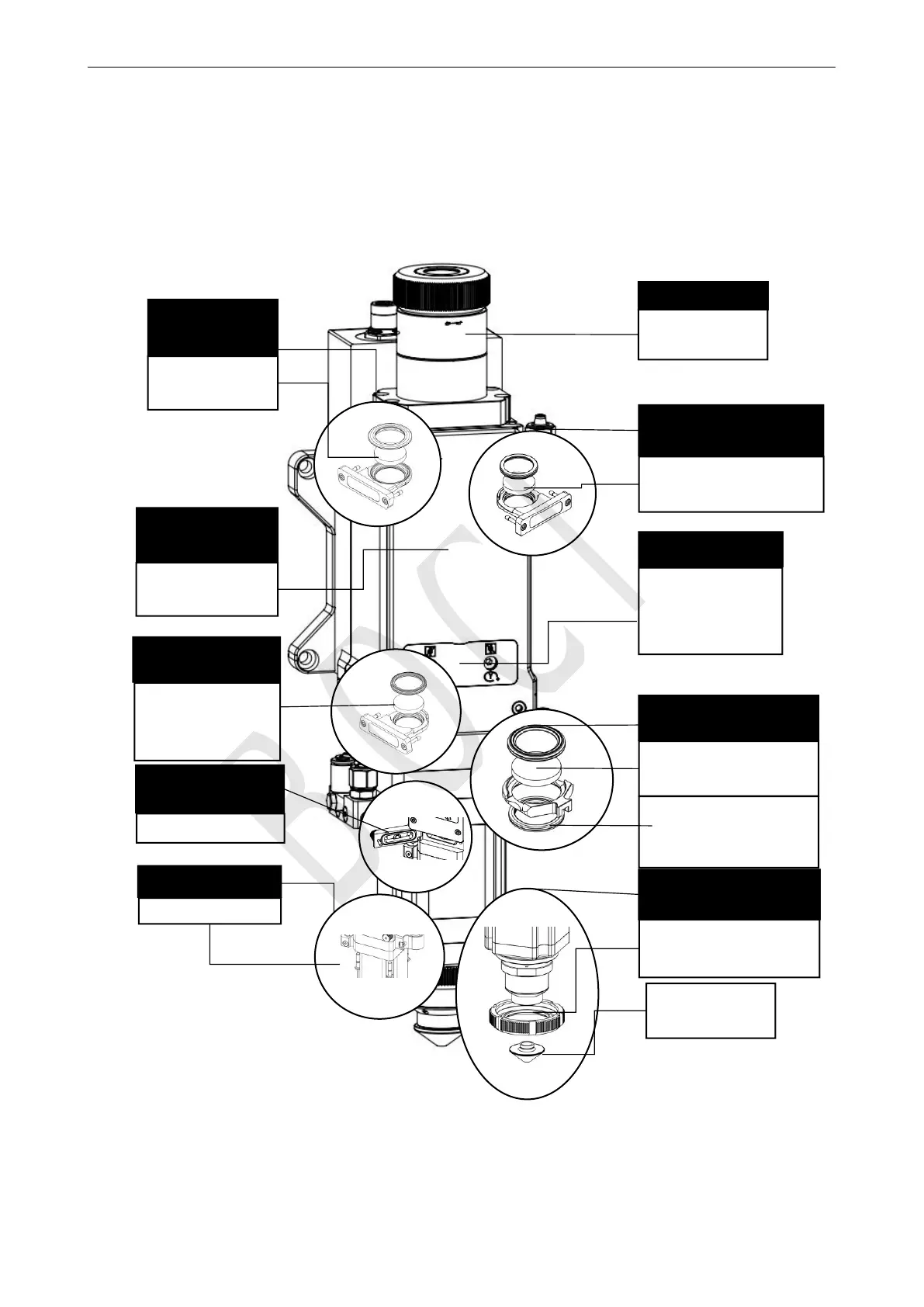

A.1 Schematic diagram of product structure
Ceramic Part
M11*0.75
Plane Capacitance Sensor
Module
Lower Protective Window
Spring Seal
SRLC-P385
1st-Lower Protective Window
D34.0T5-2
1st-Lower Protective
Window Cartrid
g
e
QBH
EOC
Laser Fiber
DP.M.Q0249AA
Lower Protective
Window Cover
Focusing Cartridge
Focusing Length
F150mm
F200mm
Upper Protective
Window Cartridge
Upper Protective
Window D25.4T4-2
2
Collimating
Cartridge Unit
Focal length Collimation
F100mm
2nd-Upper Protective
Window Cartridge
2nd-Upper Protective Window
D25.4T4-2
Anti-Collision Set
DP.M.Q0210AA
2nd-Lower Protective
Window Cartrid
g
e
2nd-Lower Protective
Window
D25.4T4-2
Nozzle
M11*0.75 Thread
BOCI
