Assembly Instructions
Attention:
Please follow these assembly instructions step by step to assemble this bike

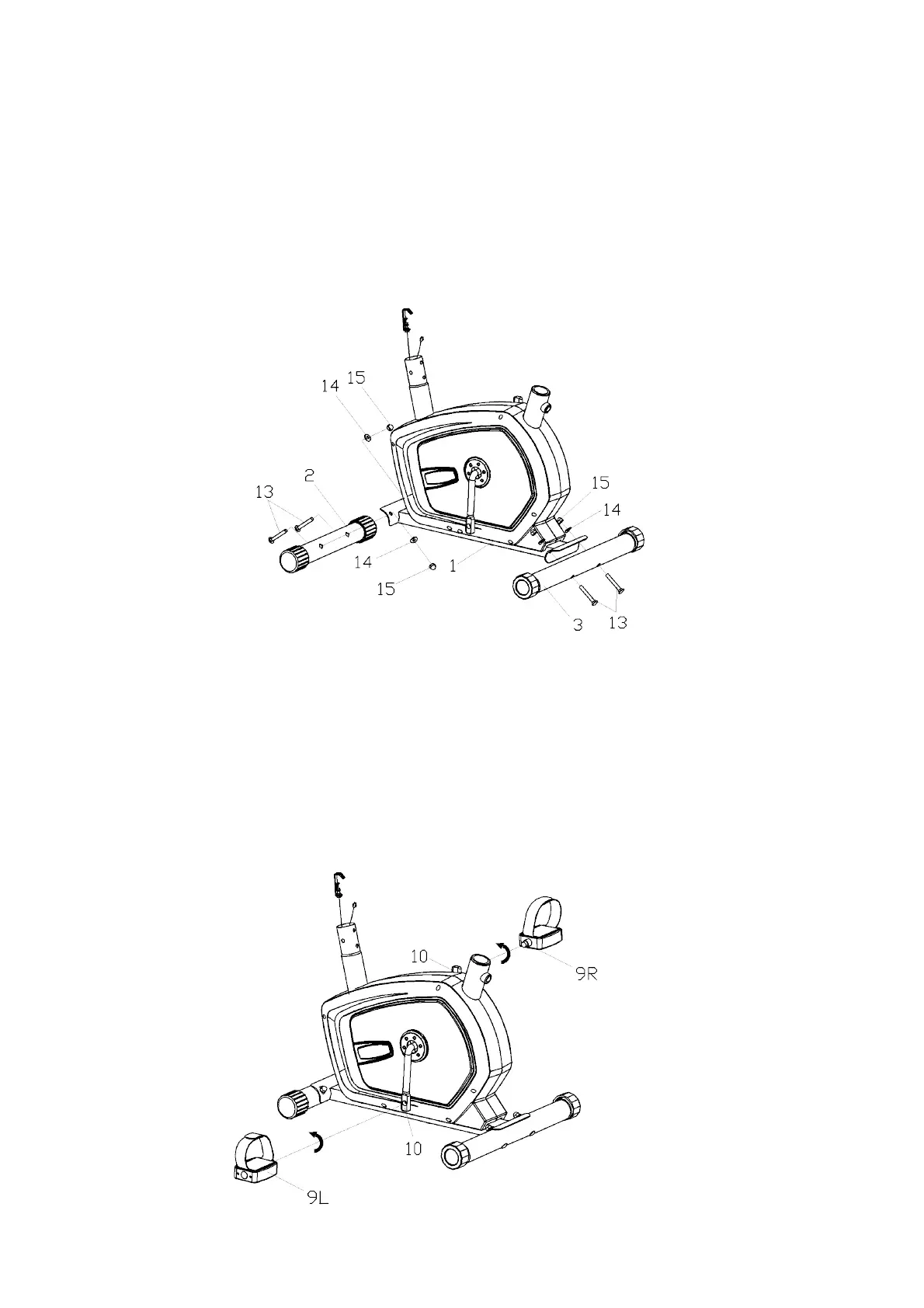

1. Install the Front and Rear Stabilizers
Fix the Front stabilizer (2) and Rear stabilizer (3) to the Main frame (1) with the Carriage bolt (13), Arc
washer (14) and Acorn nut (15).
2. Install the Right and Left Pedals
Attach the right and left Pedals (9L/R) to the Crank (10) respectively. The right Pedal (9R) should be threaded clockwise.
The left Pedal (9L) should be threaded counterclockwise.
NOTE: The right and left Pedals (9L/R) are marked “R” for right & “L” for left.
