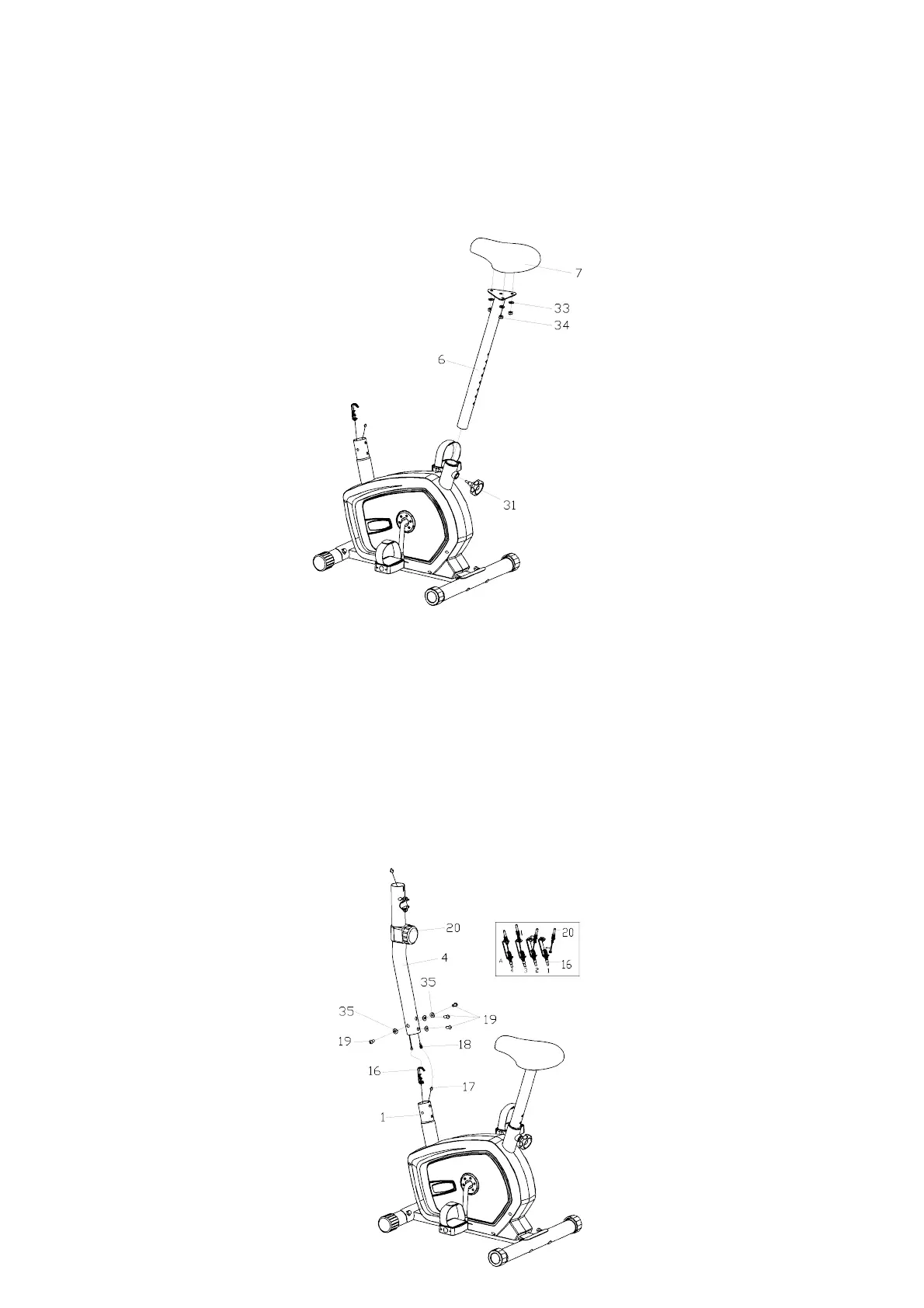

3. Install the Saddle Post
Fix the Saddle (7) to the Saddle post (6) with Flat washer (33) and Nylon nut (34), and then insert the Saddle post (6) with
Saddle into the Main frame (1), tighten with the Knob (31).
Note: When adjusting the height of saddle post, the maximum insert depth mark line cannot be higher
than the edge of the tube of Main Frame section.
4. Install the Handlebar Post
Connect the Sensor wire (17) from the Main frame (1) to the Connective wire (18) from the
Handlebar post (4).
Put the end of Tension controller (20) into the spring hook of Tension cable (16) as Picture shown.
Pull the resistance cable of Tension controller (18) up and force it into the gap of metal bracket of
Tension cable (16).
Finally, insert the Handlebar post (4) to the Main frame (1) and secure with the Allen bolt (19) and
Arc washer (35).
