BCB5280/PRO5000 Page 7

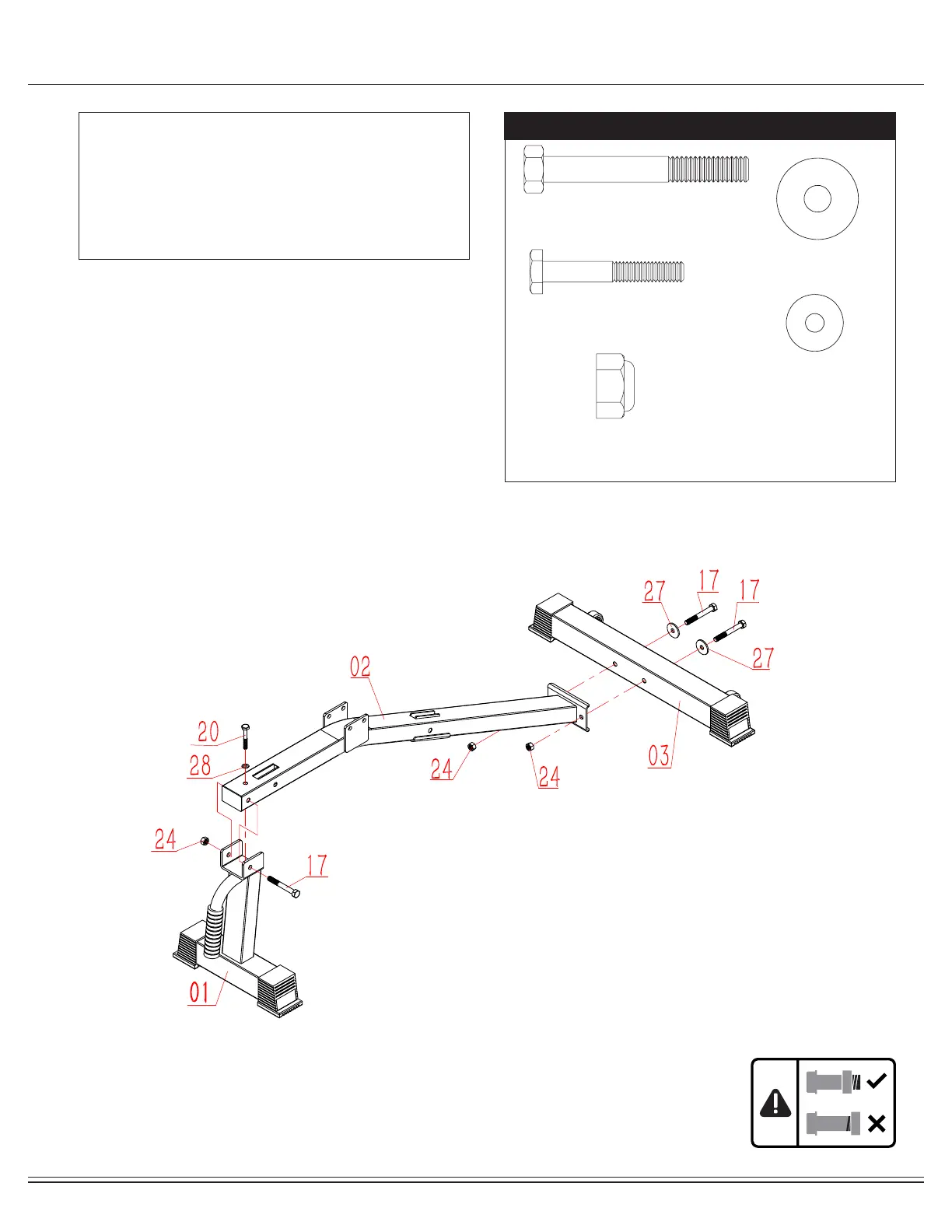

Assembly STEP 1 WEIGHT BENCH
Connect the Main Frame (#02) to the Rear Stabilizer (#03) by
inserting two Hex Bolts (#17) through two Washers (#27), the Rear
Stabilizer (#03) and Main Frame (#02), then secure with two Nylon
Nuts (#24).
Connect the Main Frame (#02) to the Front Stabilizer (#01), secure
by using one Hex Bolt (#17) and one Nylon Nut (#24) from the side
then with one Hex Bolt (#20) and one Washer (#28) from the top.
Hardware Required
NOTE:
To avoid misalignment due to over-tightening, please do
not use a wrench at this time.
Hand-tightening for now will help ensure easy assembly.
Wrench-tightening should be performed after all parts are
assembled to ensure all nuts, bolts, and parts are tightly
secured before use.
#17 Hex Bolt (M10X80mm)
[3 Pieces]
#20 Hex Bolt (M8X55mm)
[1 Piece]
#28 Washer (M8)
[1 Pieces]
#27 Washer (M10)
[2 Pieces]
#24 Nylon Nut (M10
)
[3 Pieces]
To Next Page
