BUB350/BUB375 Page 10

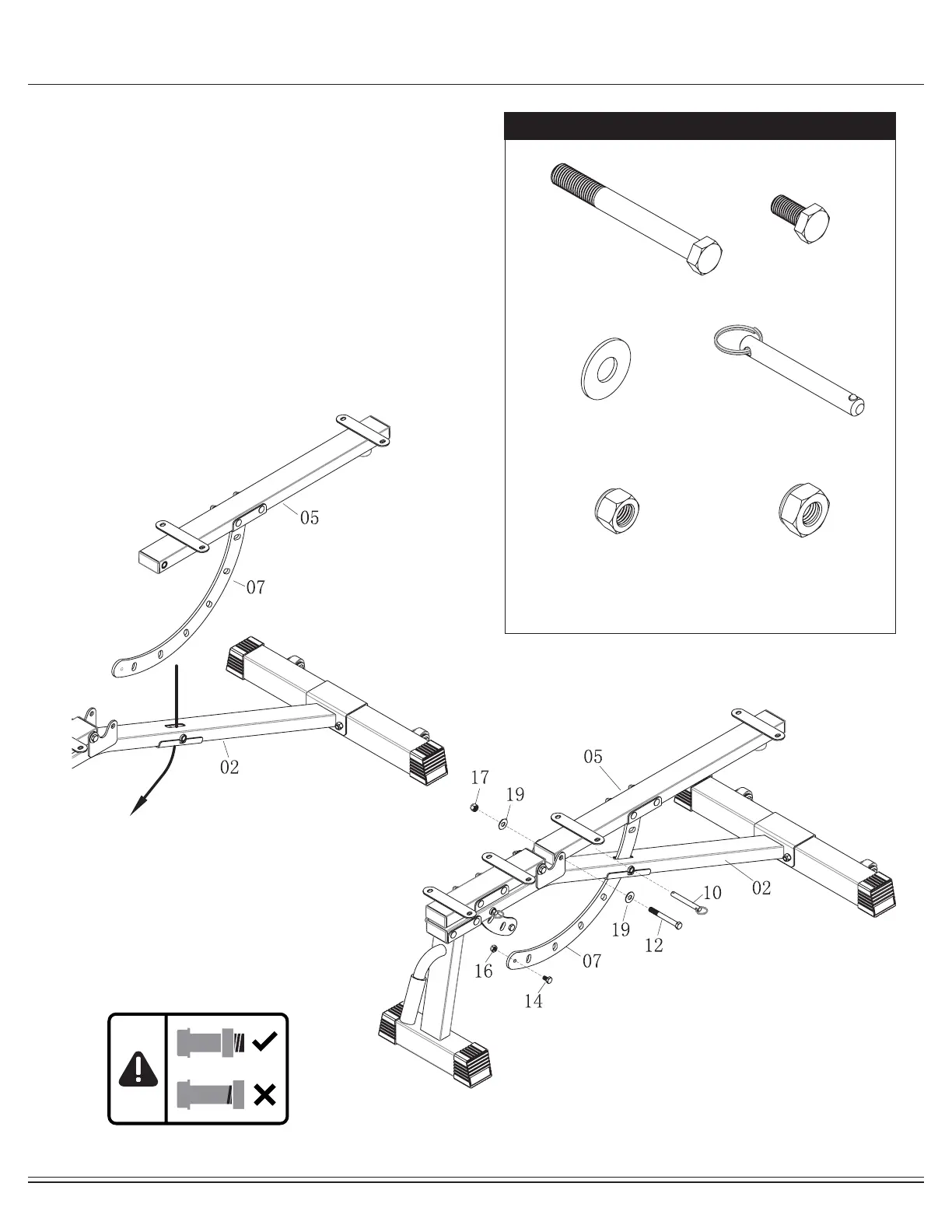

Assembly STEP 6
Attach Backrest Cushion Tube (#05) (now with Backrest
Cushion Adjust Bracket (07)) to the Main Frame (#02) ,
secure them together by using one Hex Bolt (#12), two
Washers (#19) and one Nylon Nut (#17) from front hole on
the Backrest Cushion Tube (#05) and rear hole on the Main
Frame (#02) bracket.
Screw a Hex Bolt (#14) through bottom of the Backrest
Cushion Adjust Bracket (#07), and secure it use a Nylon Nut
(#16). This is for safety measure.
Insert Lock-pin (#10) into the hole on the Main Frame (#02)
and any desired hole setting on the Backrest Cushion Adjust
Bracket (#07).
Hardware Required
#16
Nylon Nut (M8)
[1 Piece]
#17
Nylon Nut (M10)
[1 Piece]
#10
Lock-pin (Ø10x85L)
[1 Piece]
#12
Hex Bolt (M10x85 mm)
[1 Piece]
#14
Hex Bolt (M8x16 mm)
[1 Piece]
#19
Washer (Ø10.5xØ25)
[2 Piece]
To Next Page
