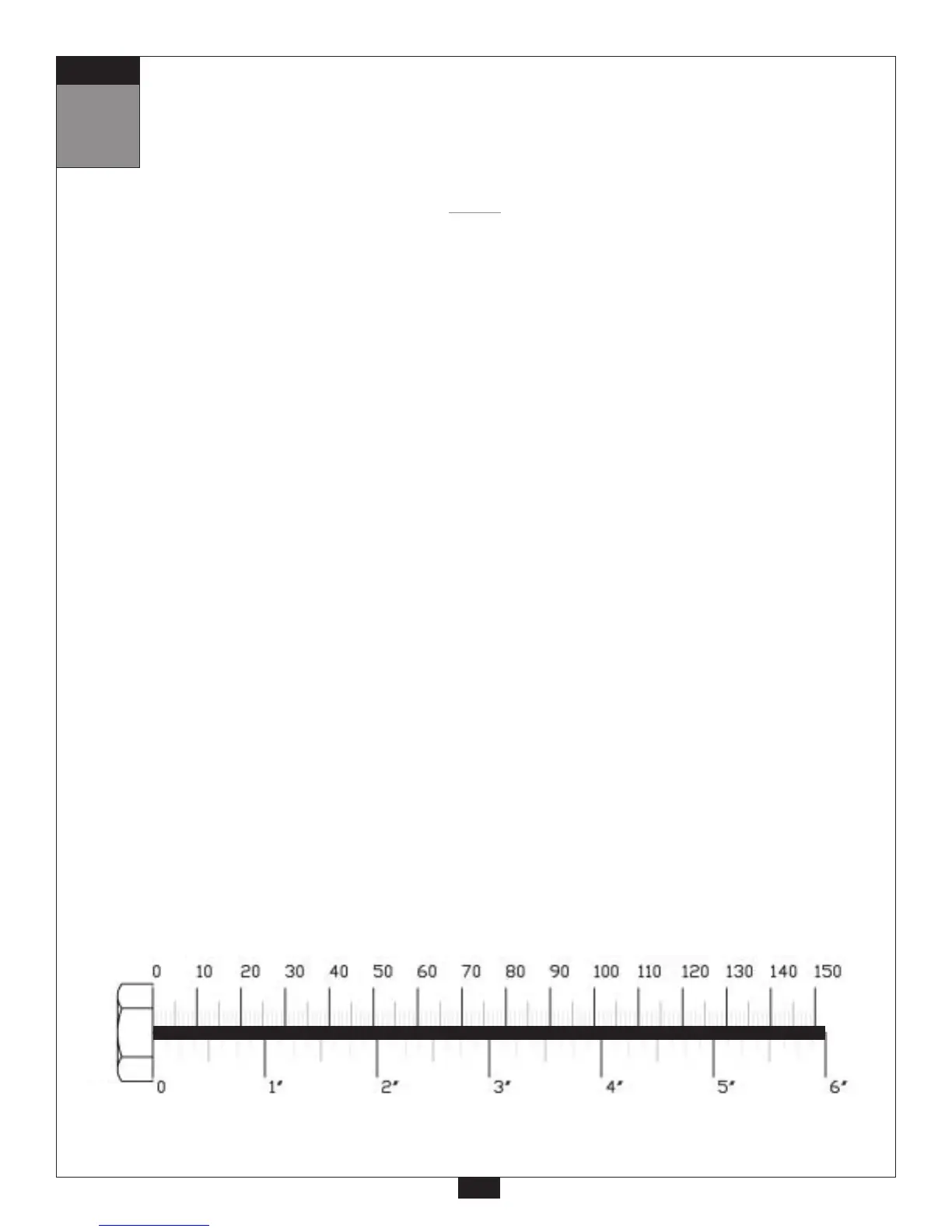

1
mm
Inch
10
STEP
Be careful to assemble all components
in the sequence they are presented.
A. Attach Frame Leveler (10) to Main Base Frame (A) as shown.
Insert two Weight Stack Shims (11) to Main Base Frame (A) as shown.
Insert Convex End Cap (28) to the opening in Main Base Frame (A) as shown.
B. Attach Main Base Frame (A) to Rear Base Frame (B) and Rear Vertical Frame (C) using:
Two 40 (1/2” x 3 1/4” hex head bolt)
Four 73 (1/2” washer)
Two 70 (1/2” nylon lock nut)
Also use:
Two 55 (3/8” x 2 3/4” hex head bolt)
T
wo 74 (3/8” washer)
Two 71 (3/8” nylon lock nut)
C. Insert two Foot Caps (6) to the ends of Rear Base Frame (B).
Inser
t Convex End Cap (2) to the top of Rear Vertical Frame (C) as shown.
NOTE:
Finger tighten all har
dware in this step. Do Not
wrench tighten until end of step 3.
