Body Solid G6B - Shroud Installation

Be careful to assemble all components
in the sequence they are presented.

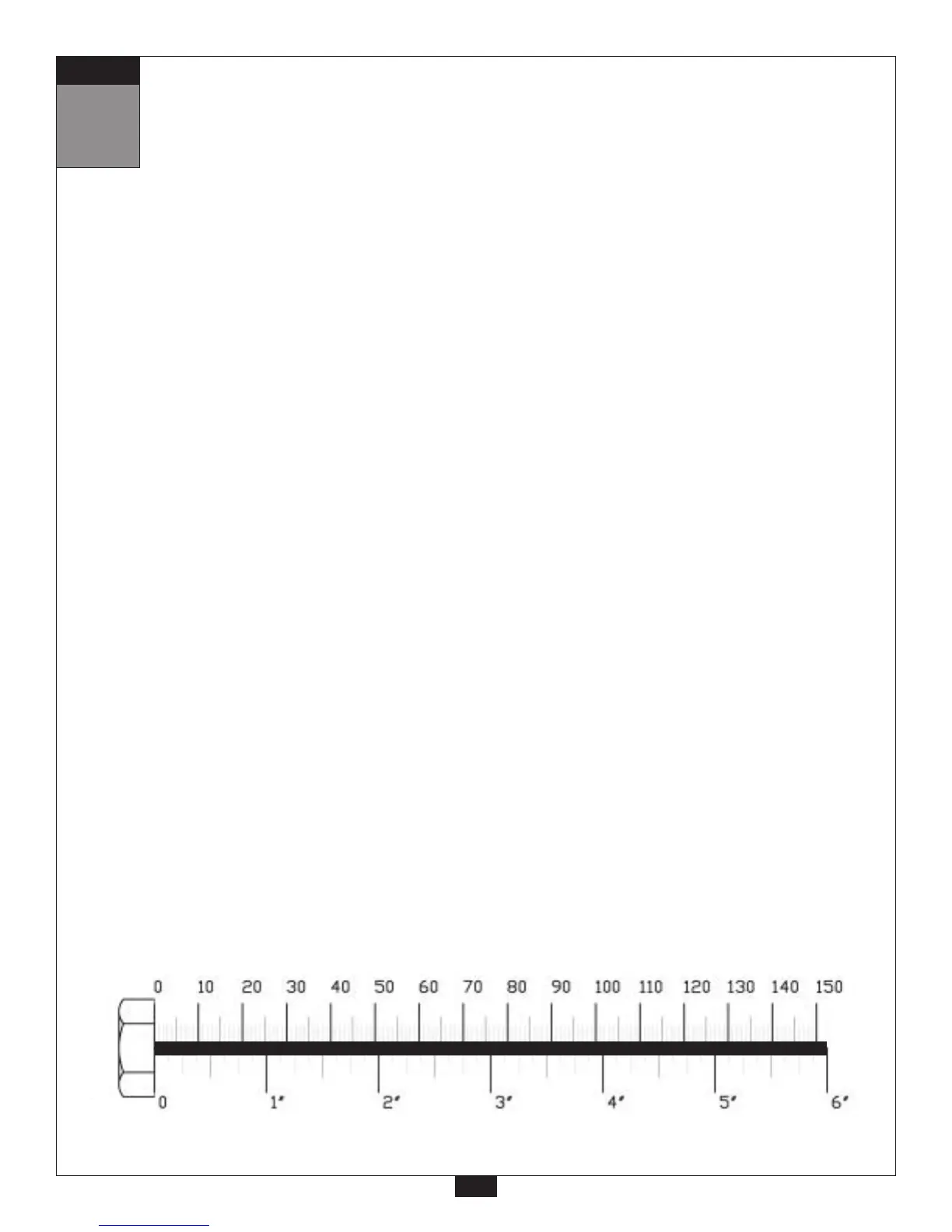

mm
Inch
SEE NOTE 1 ON PAGE 41:
A. Apply weight stack numbers to weight stack Top Plate (17) and each Weight Stack Plate (38)
as shown.
SEE NOTE 2 ON PAGE 41:
B. Weight Stack Shroud (DA) is pre-assembled with Shroud Insert (DB).
Attach W
eight Stack Shroud (DA) to the side of the weight stack as shown.
Bolt onto Main Base Frame (A) at the bottom and Top W
eight Stack Frame (G) using:
Two 89 (3/8” x 5/8” round allen head)
T
wo 74 (3/8” washer)
C. Attach Back Weight Stack Shr
oud (DC), to the back side of the weight stack, onto the Main Base
Frame (A) at the bottom and to the T
op Weight Stack Frame (G) as shown using:
Two 89 (3/8” x 5/8” r
ound allen head)
Two 74 (3/8” washer)
D. Attach Press Ar
m Shroud (DD) to the Seated Press Arm Support (H) using:
Four 90 (1/8” x 3/8” round allen head)
E. Connect the Water Bottle Bracket (91) to the Weight Stack Shroud (DA) using:
Two 92 (1/8” x 3/8” screw)
F. Slide the Water Bottle Holder (93) onto the Water Bottle Bracket (91) as shown.
40
STEP
16
