A. Attach two End Caps (13) to the ends of the Low Pulley Frame (AY). Connect Low Pulley
Frame (AY) to the Main Base Frame (A) using:
One 98 (M10 washer)
One 87 (M10 x 16L round allen head)
B.
Attach Foot Brace (AZ) to the open side of Rear Base Frame (D) using:
One 73 (3/8”x 2 3/4” hex head bolt)
Two 94 (3/8” washer)
One 91 (3/8” nylon lock nut)
C. Attach two End Caps (16) and Grip Tape (33) to Foot Brace (AZ) as shown.
D. Attach Pulley (26) to Low Pulley Frame (A
Y) using:
One 76 (3/8”x 1 3/4” hex head bolt)
Two 94 (3/8” washer)
One 91 (3/8” nylon lock nut)
Note:
You should now wr
ench tighten all bolts and nuts in this step.
Do NOT re-tighten any of the pad bolts or pulley bolts.
11
Be careful to assemble all components
in the sequence they are presented.
STEP

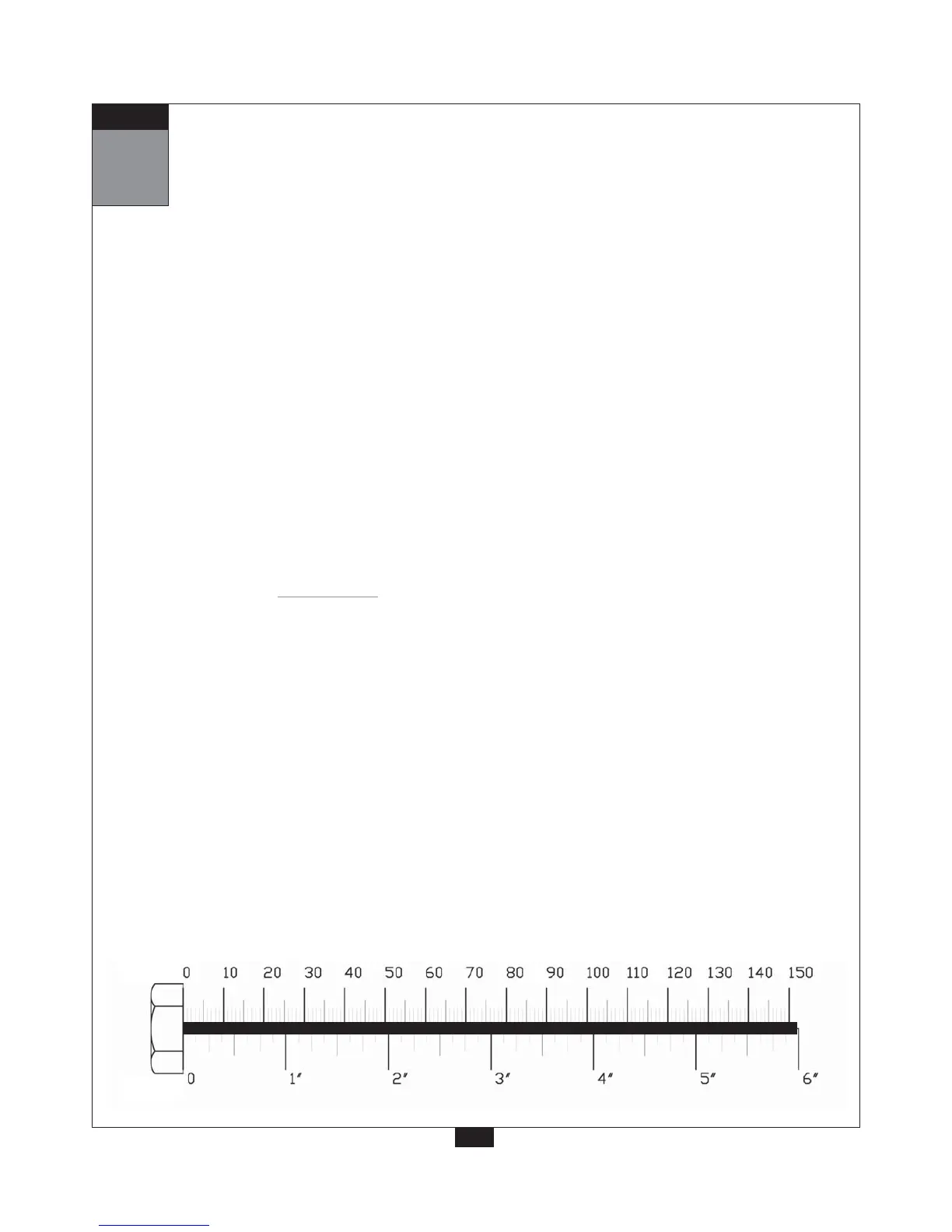

mm
Inch
30
