Body Solid G9U - Page 37

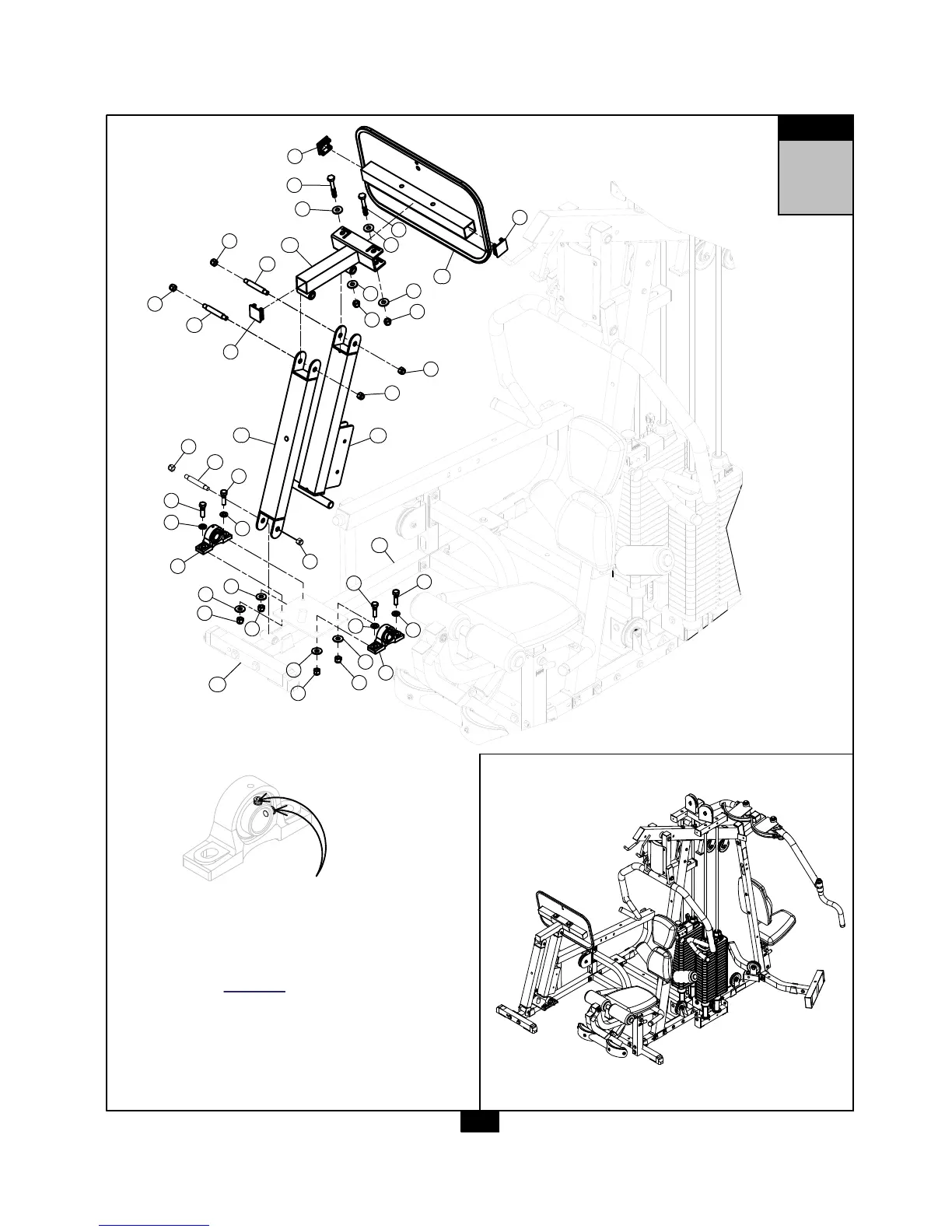

STEP
13
Above shows STEP 13
assembled and completed
35
There are two small alen set screws
in each Pillow Block Bearing(45).
For best alignment of this system
you should loosen all
allen set screws
before instlling the Pillow Block Bearings(45)
The last end final step of the
assembly process is to
wrench tighten all of these allen
set screw in all the Pillow Block Bearings(45)
45
66
93
BE
BD
BG
14
BF
BF
90
90
90
90
93
93
64
BR
14
14
BB
BC
45
93
66
93
90
93
90
90
93
93
90
90
90
BF
90
66
93
90
66
93
93
64
93
