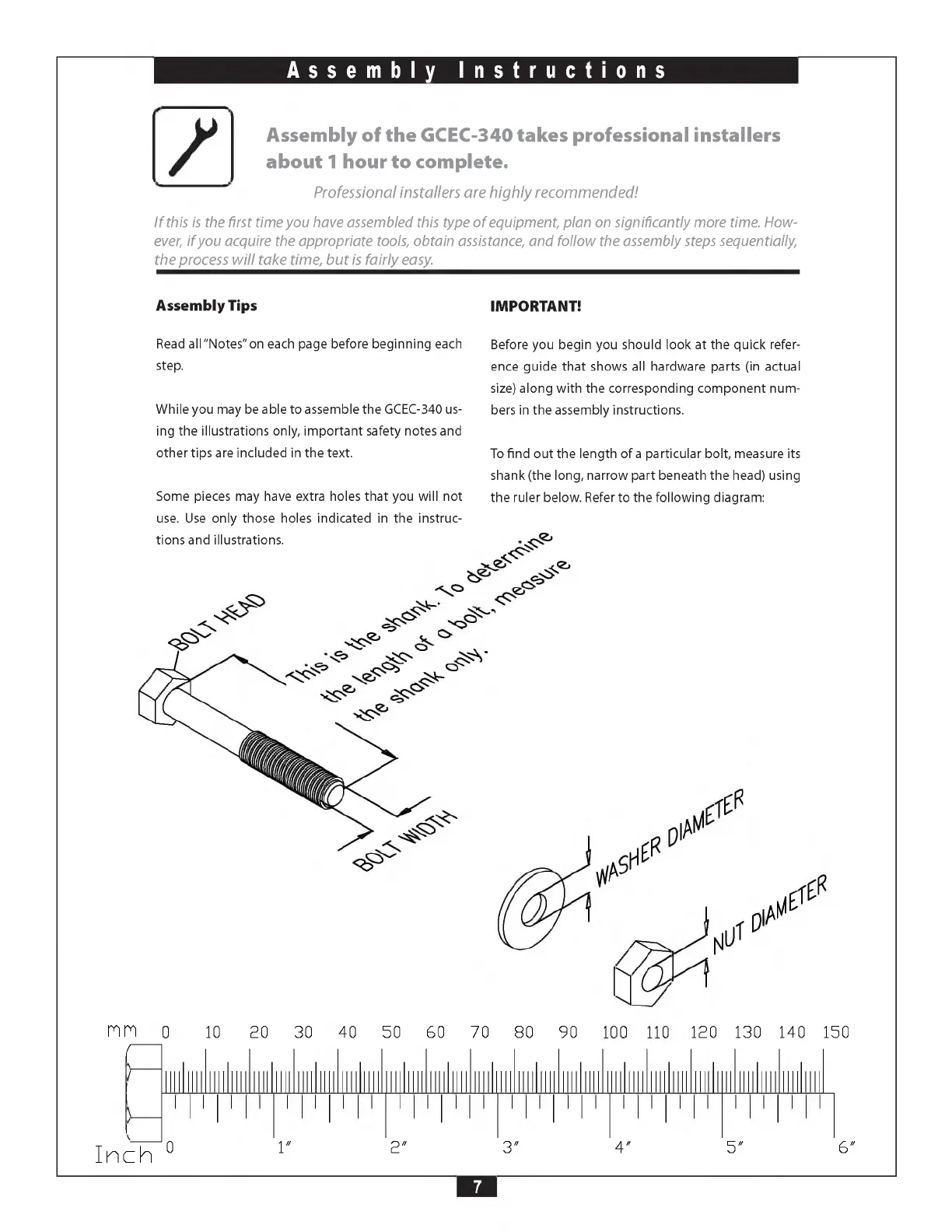

Assembly Instructions
Assembly of the GCEC-340 takes professional installers
about 1 hour to complete.
Professional installers are highly recommended!
If this is the first time you have assembled this type o f equipment, plan on significantly more time. How
ever, if you acquire the appropriate tools, obtain assistance, and follow the assembly steps sequentially,
the process w ill take time, but is fairly easy.
Assembly Tips
Read all “Notes" on each page before beginning each
step.
While you may be able to assemble the GCEC-340 us
ing the illustrations only, important safety notes and
other tips are included in the text.
Some pieces may have extra holes that you will not
use. Use only those holes indicated in the instruc
tions and illustrations.
IMPORTANT!
Before you begin you should look at the quick refer
ence guide that shows all hardware parts (in actual
size) along w ith the corresponding com ponent num
bers in the assembly instructions.
To find out the length of a particular bolt, measure its
shank (the long, narrow part beneath the head) using
the ruler below. Refer to the following diagram:
mm
/
10 20 30 40 50 60 70 80 90
|A^
120 130 140 150
Inch °
1 "
2 "
3" 4 " 5 " 6 "
