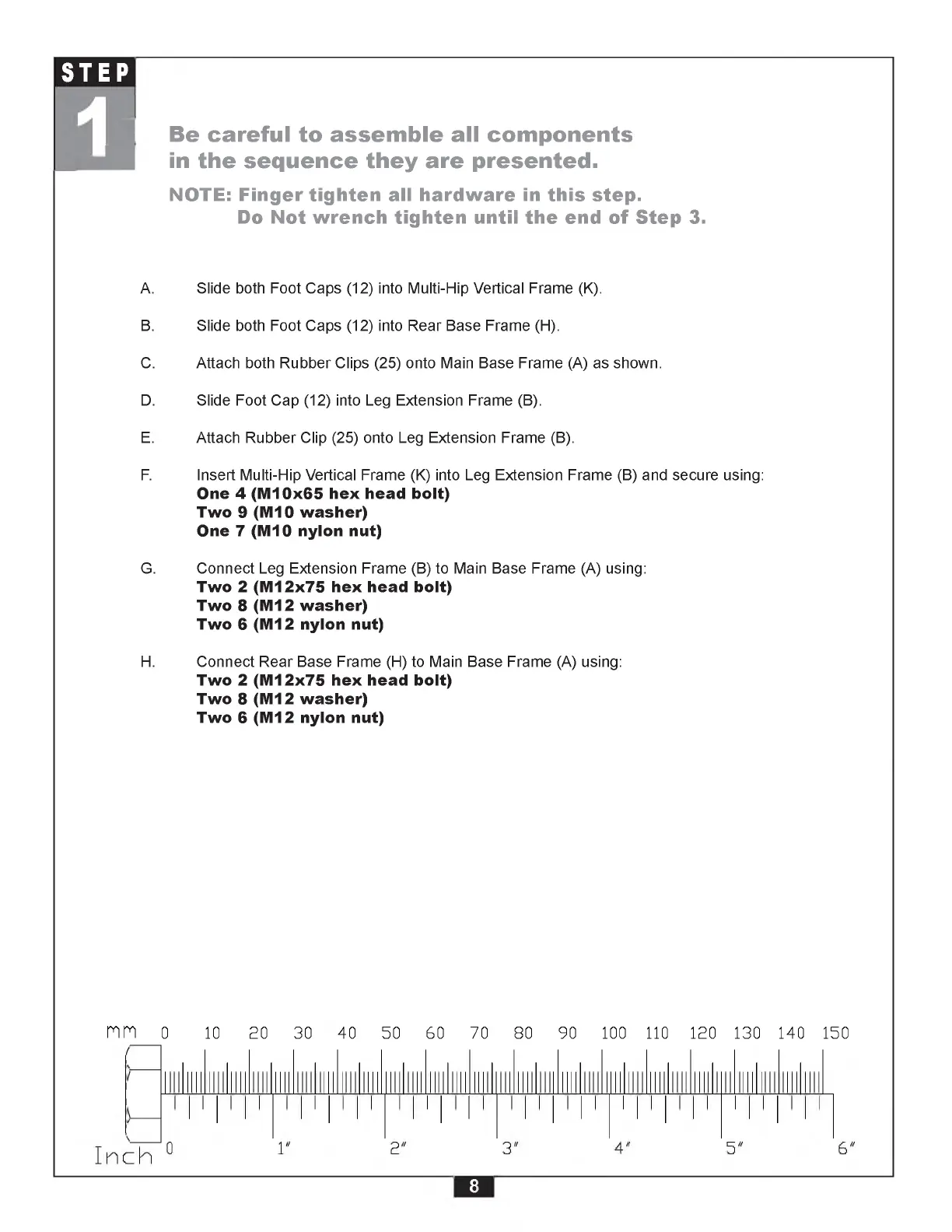

STEP
I I Be careful to assemble all components
■ ^ 1 in the sequence they are presented.
NOTE: Finger tighten all hardware in this step.
Do Not wrench tighten until the end of Step 3.
A. Slide both Foot Caps (12) into Multi-Hip Vertical Frame (K).
B. Slide both Foot Caps (12) into Rear Base Frame (H).
C. Attach both Rubber Clips (25) onto Main Base Frame (A) as shown.
D. Slide Foot Cap (12) into Leg Extension Frame (B).
E. Attach Rubber Clip (25) onto Leg Extension Frame (B).
F. Insert Multi-Hip Vertical Frame (K) into Leg Extension Frame (B) and secure using:
One 4 (M 10x65 hex head bolt)
Two 9 (M10 washer)
One 7 (M10 nylon nut)
G. Connect Leg Extension Frame (B) to Main Base Frame (A) using:
Two 2 (M 12x75 hex head bolt)
Two 8 (M12 washer)
Two 6 (M12 nylon nut)
H. Connect Rear Base Frame (H) to Main Base Frame (A) using:
Two 2 (M 12x75 hex head bolt)
Two 8 (M12 washer)
Two 6 (M12 nylon nut)
mm 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
8
