BodyCraft XPress - Assembly: Press Arm & Cable Arm

31
98
88
98
18
9
5
8
4
1
31
49
49
41
41
41
41
41
49
49
35
48
35
48
48
36
99
88
88
21
48
36
99
20
21
81
41
101
101
107
101
101
107
101
101
107

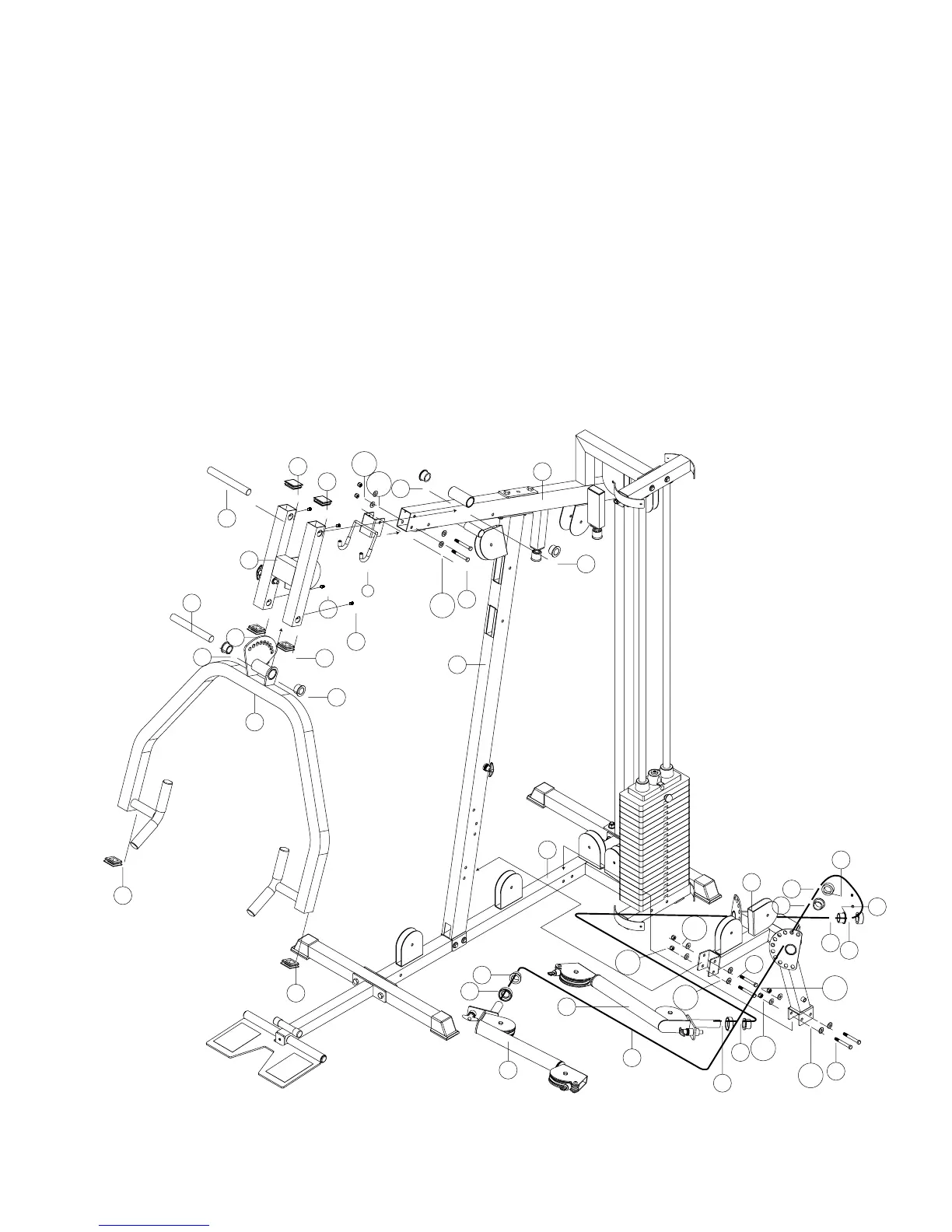

STEP 2 ASSEMBLE PRESS ARM & CABLE ARM ASSEMBLY
6
1. Attach Press Arm Selector(8) to Top Frame by aligning holes and inserting Pivot Axle(31). Lock into
place with pre-installed set screw.
2. Attach Press Arm(9) to Press Arm Selector(8) by aligning holes and inserting Pivot Axle(31). Lock into
place with pre-installed set screw.
3. Attach 50mm Plugs(41) onto ends of Press Arm(9) and Press Arm Selector(8).
4. Attach Pre-assembled Cable Arm Assembly(20) to Front Upright(4) and Base Frame(1) using two 3/8"X
3" Bolts(88), four 3/8" Washer and four Nuts(107).
Remember to keep all bolts loose to ensure holes will align easily.
Slide the axle of each Cable Arm(21) through the hole in selector plate of Cable Arm Assembly and
fasten using Axle Collar(36) with 5/16"X1/4" Set Screw(99).
Check to ensure that each arm pivots freely and any cables are not twisted.
5. Attach Lat Bar Holder(18) to Top Frame, using two 3/8"X3" Bolts, 3/8" Washers(101) and Nuts(107).
