Indoor Cycle B2

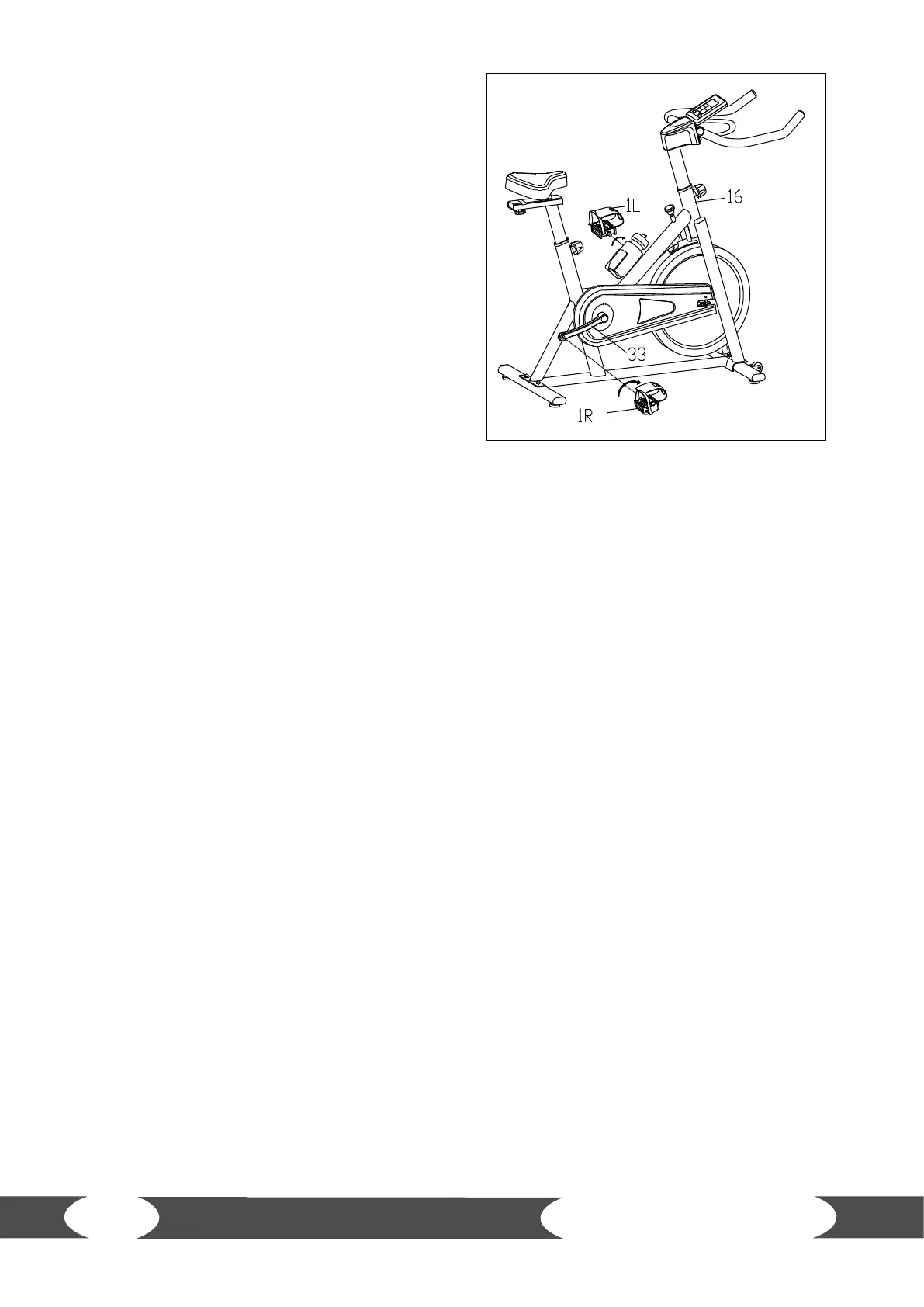

Step 4: Assembly of the Pedals
⚠ CAUTION
Make sure to screw in the pedals completely.
1. Screw the right pedal (1R) clockwise onto the
right crank arm (36).
2. Screw the left pedal (1R) counter-clockwise
onto the left crank arm (33).
3. Tighten all screw joints.
→
The assembly is now completed.
Step 5: Alignment of the Feet
If the oor is uneven, you can stabilize the equipment by turning the two setting screws under the
main frame.
1. Lift the equipment on the desired side and rotate the setting screws under the main frame.
2. Rotate the screws clockwise in order to remove them and to raise the equipment.
3. Rotate them counterclockwise in order to lower the equipment.
