BODYMAX CF485+ - Page 8

STEP 03
6
13
15
7
8
19
20
19
7
19
1
5
13
14
19
20
3

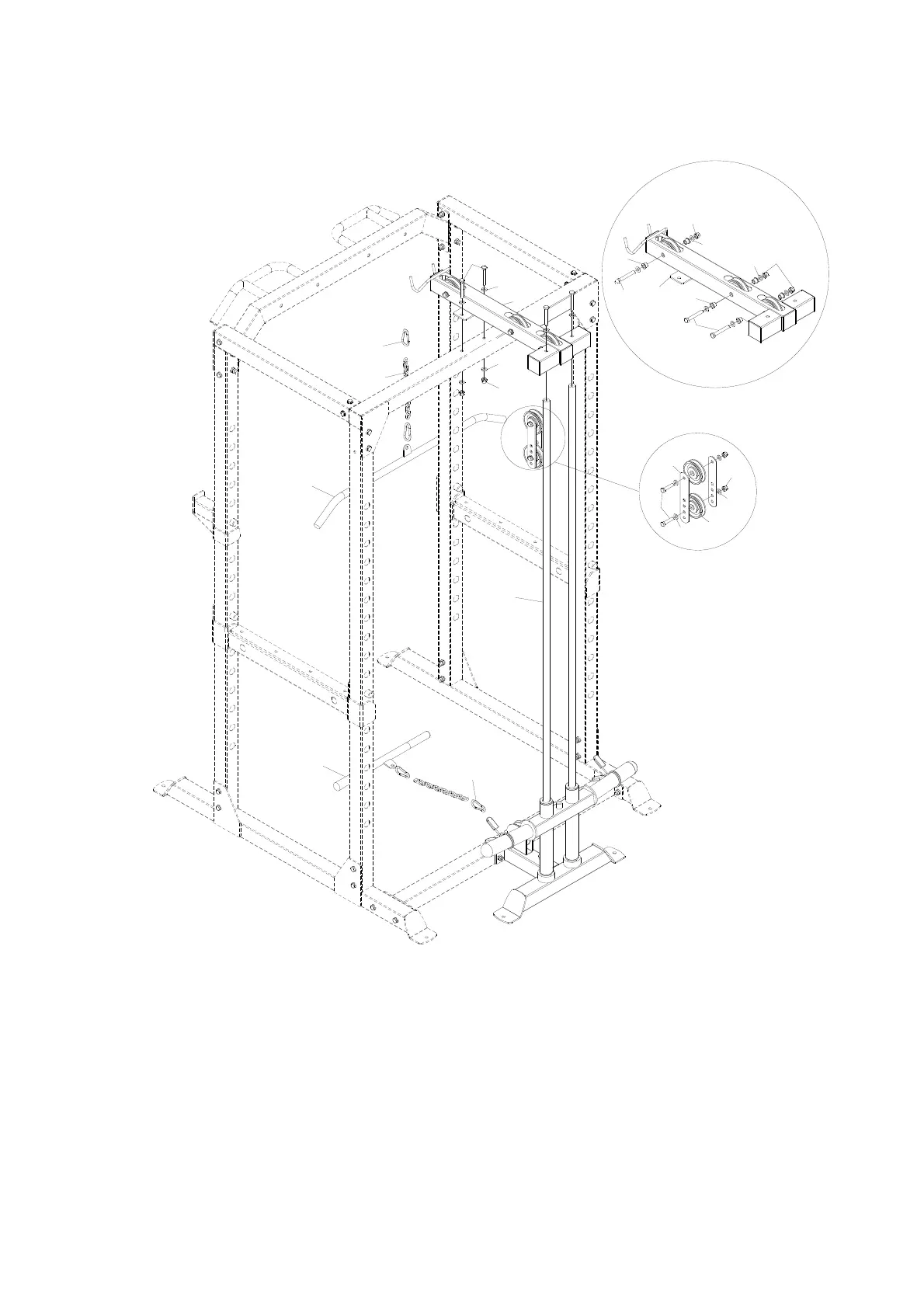

1. Attach three Pulleys (8) to Middle Upper Post (1) with three Bolts M10*75 (16), six Pulley Bushings
(12), six Washers 10 (19) and three Lock Nuts M10 (20) .
2. Attach Middle Upper Post (1) to CF485+ Heavy Power Rack and Guide Rod (3) with two Bolt M10*80
(17) , two Bolts M10*75 (16) ,six Washers 10 (19) and two Lock Nuts M10 (20).
3. Attach two Pulleys (8) to two Brackets (7) with two Bolts M10*50 (15), four Washers 10 (19) and two
Lock Nuts M10 (20).
