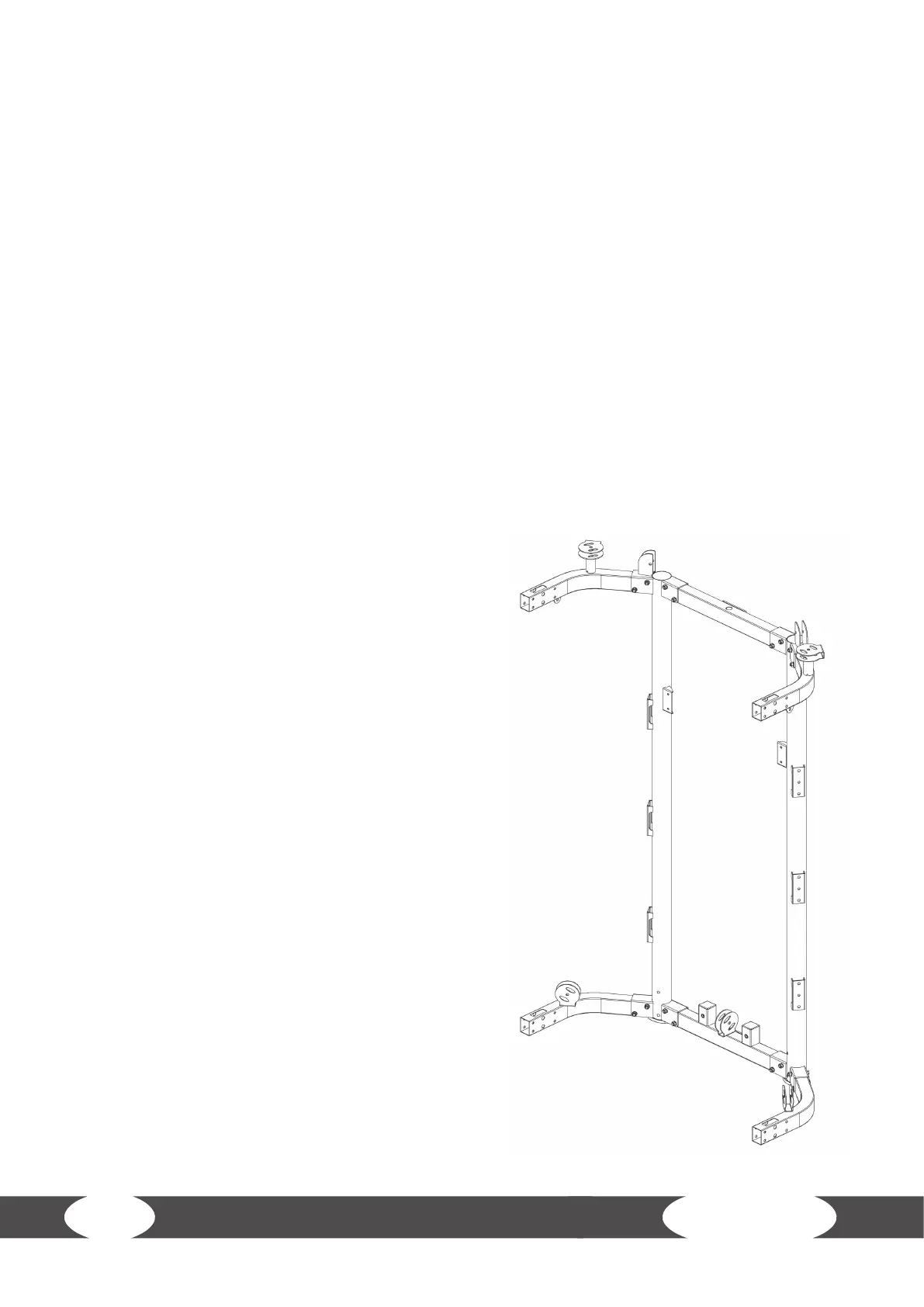

Step 1: Assembly of the Main Frame
L NOTICE
+ Install all bolts and nuts before tightening. Do not over tighten.
+ Not all bolts, washers and nuts are shown in the drawing as they are identical. For each bolt
connection, use one bolt (9), two washers (11) and one nut (10).
1. Attach the left bending tube (4) to the bottom of left upright frame (2) with two bolts (9), four
washers (11) and two nuts (10).
2. Attach the right bending tube (5) to the bottom of right upright frame (3) with two bolts (9), four
washers (11) and two nuts (10).
3. Attach the connection tube (1) to the bottom of the left and right upright frames (2 & 3) with a
total of four bolts (9), eight washers (11) and four nuts (10).
4. Attach the upper connection tube (6) to the top of the left and right upright frames (2 & 3) with
a total of four bolts (9), eight washers (11) and four nuts (10).
5. Attach the left upper bending tube (8) to the top of the left upright frame (2) with two bolts (9),
four washers (11) and two nuts (10).
6. Attach the right upper bending tube (7) to the top of the right upright frame (3) with two bolts
(9), four washers (11) and two nuts (10).
7. Tighten bolts and nuts.
