BODYMAX CTX5 - 2.4 Optional Leg Press Plate

FOOT PLATE
Assembly Instructions
NO.
SPARE PART NAME NOTE
QTY
1 Foot plat assembly 1
1
40
CTX5
2.4 Optional Leg Press Plate
L NOTICE
The leg press plate is an optional accessory for the CTX5 complete training system and is
not included in the scope of delivery of the Smith machine itself. The leg press plate must be
purchased separately.
Scan the QR code with the camera function or QR code scanner app of your mobile
device to visit our shop and nd more information on the leg press plate.
2.4.1 Scope of Delivery - Leg Press Plate
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠ CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.
2.4.2 Assembly - Leg Press Plate

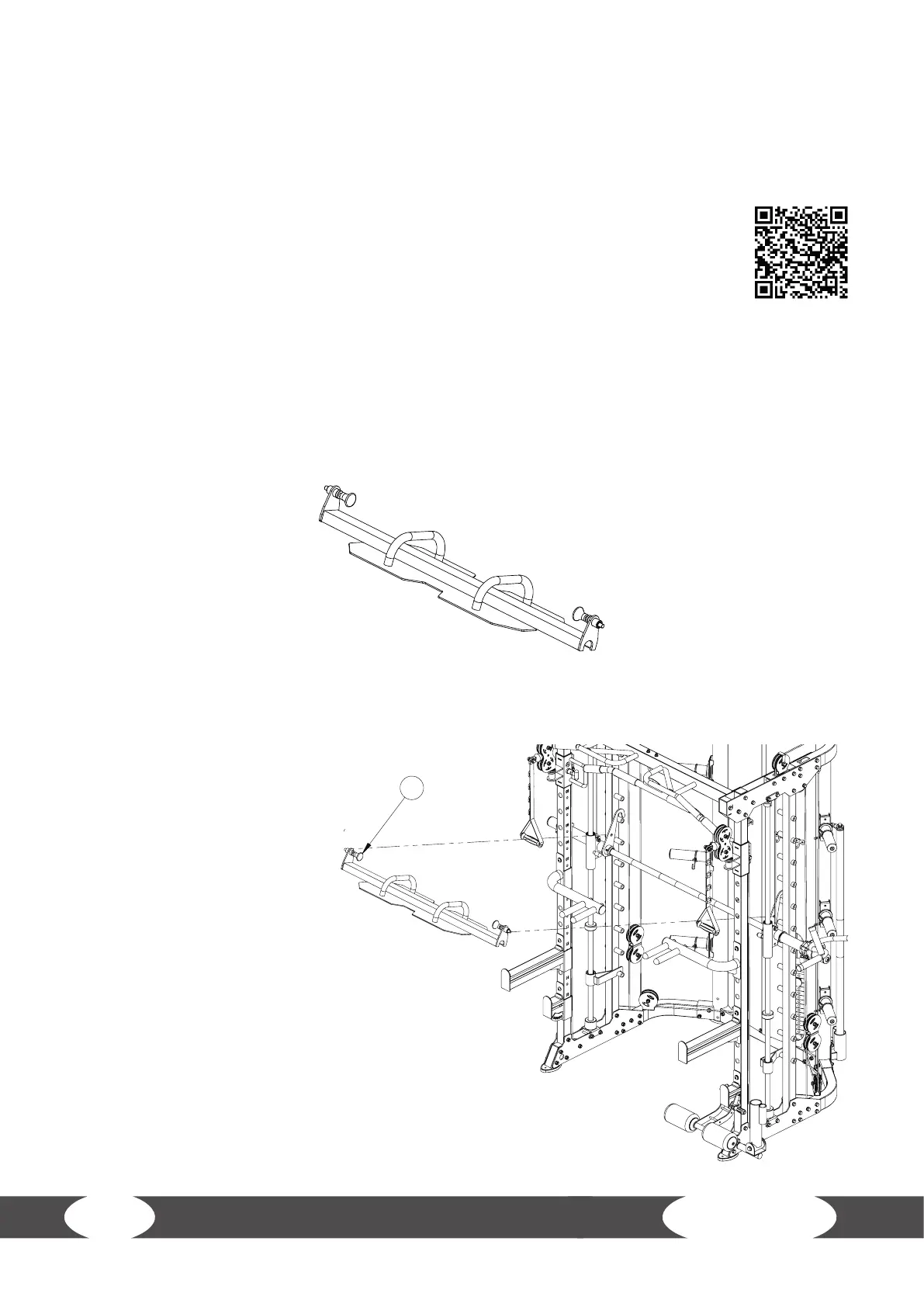

Attach the leg press plate (1) to the hooks of the barbell rod (41) and secure with the pins.
