BODYMAX CTX5 - Page 20

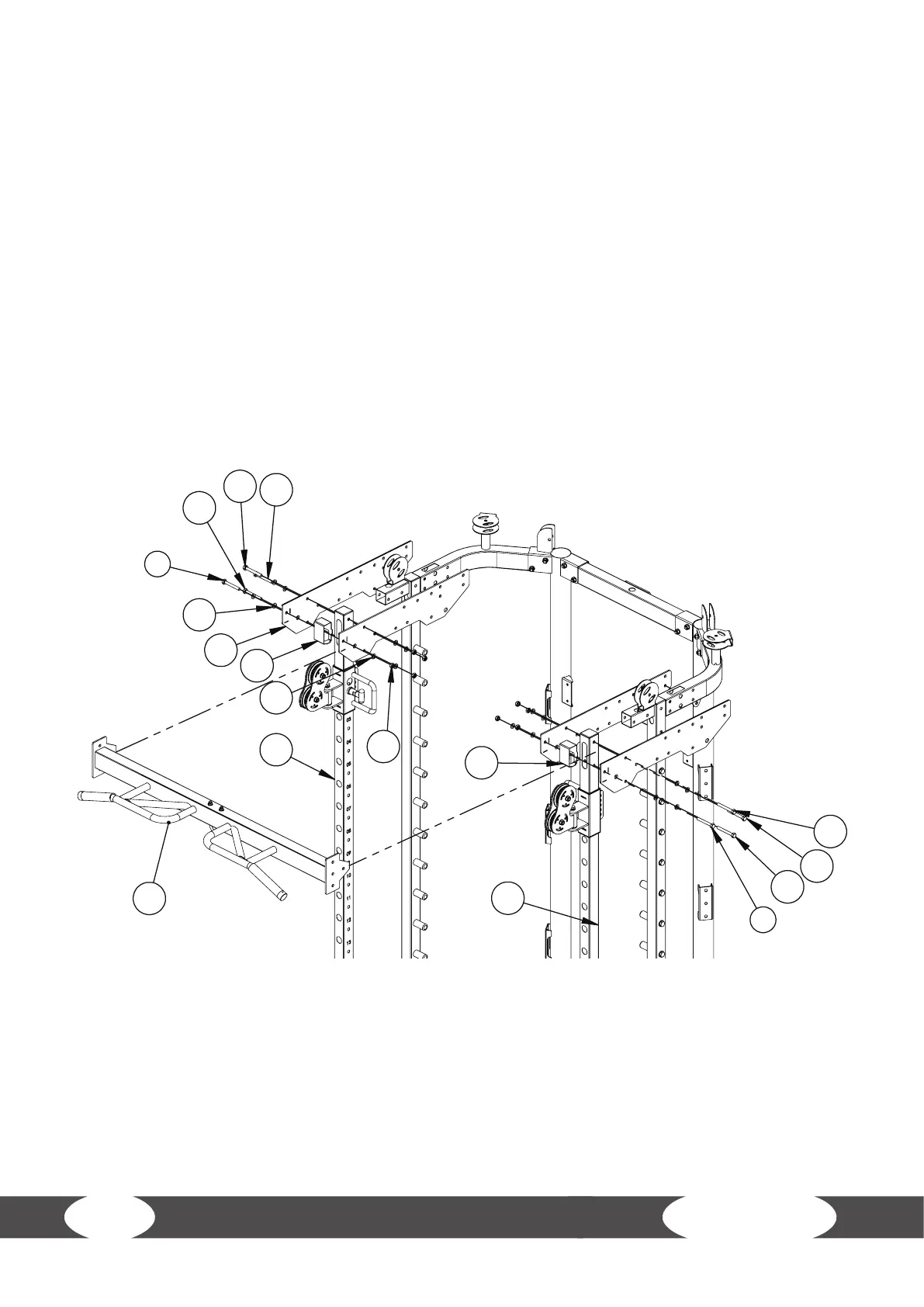

Assembly step（2）explosion drawing
12
13
18
17
19
22
9
24
11
10
11
9
24
24
24
9
24
24
23
23
11
10
11
11
10
11
20
CTX5
Step 2: Assembly of the Tubes and Chin Up Bar, Part 2
L NOTICE
+ Install all bolts and nuts before tightening. Do not over tighten.
1. Attach one end tube (23) between the upper plates (13) with one bolt (9), two washers (11) and
one nut (10) on each side of the machine.
2. Attach the chin up bar (12) to the inner side of the upper plates (13) and to the left and right
tubes with holes (18 & 17) with a total of six bolts (24), twelve washers (11) and six nuts (10).
3. Now tighten all bolts and nuts.
