BODYMAX CTX5 - Page 24

24
CTX5

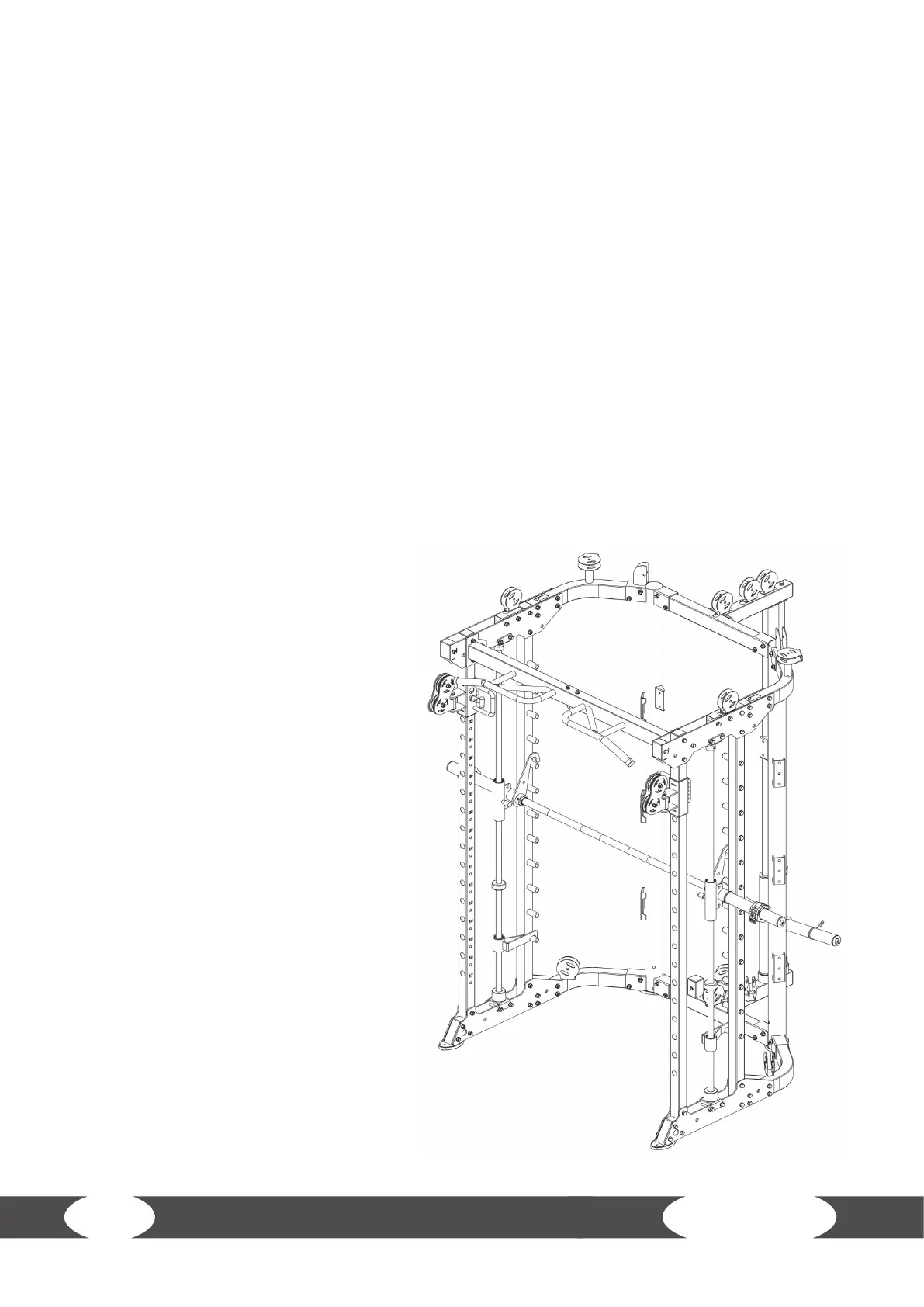

Step 4: Assembly of the Hollow Guide Rods
L NOTICE
Install all bolts and nuts before tightening.
1. Attach the short upper connection tube (44) to the upper connection tube (6) with two bolts
(52), two spring washers (39) and two washers (40).
2. Attach the lower connection tube (45) to the connection tube (1) with two bolts (52), two spring
washers (39) and two washers (40).
3. Attach the double pulley bracket (53) to the lower connection tube (45) with two bolts (51), four
washers (11) and two nuts (10).
4. Slide two rubber pads (48) and the big sliding sleeve (46) over the hollow guide rods (47).
5. Insert the guide rods (47) into the lower connection tube (45).
6. Attach the guide rods (47) to the lower connection tube with two bolts (49) and two washers
(11).
7. Attach the guide rods (47) to the short upper connection tube (44) with two bolts (50) and two
washers (11).
8. Attach the back barbell plate holders (55) to the big sliding sleeve (46) with one set screw (34)
each.
9. Tighten the bolts and nuts.
