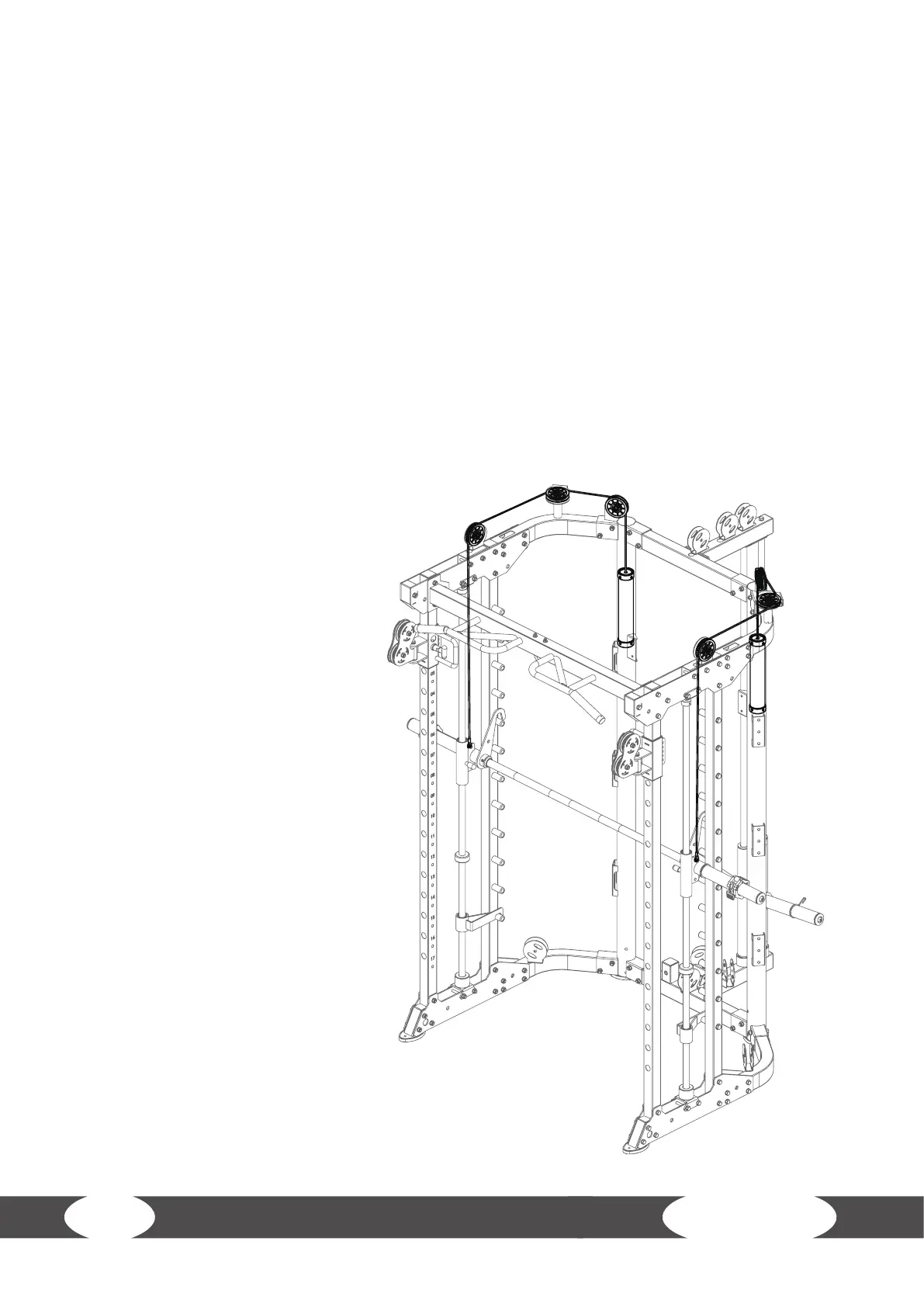

Step 5: Assembly of the Wires, Part 1
L NOTICE
+ Use the 2745mm wires (56) and 95mm pulleys (57).
+ The wires and pulleys must be assembled simultaneously.
+ Start with one side of the machine and repeat the steps on the other side.
1. Connect the wire (56) to the weight (61) and place the weight inside the right upright frame (3).
2. Route the wire (56) over one pulley (57, A) and attach the pulley (A) to the pulley bracket (A-1)
with one bolt (60), one pulley plate (58), two washers (11) and one nut (10).
3. Route the wire (56) around one pulley (57, B) and attach the pulley (B) to the pulley bracket (B-1)
with one bolt (59), one pulley plate (58) and one washer (11).
4. Route the wire (56) over over pulley (57, C) and attach the pulley (C) to the pulley bracket (C-1)
with one bolt (60), one pulley plate (58), two washers (11) and one nut (10).
5. Attach the loop end of the wire (56) to the outside of the sliding sleeve (29) with one bolt (49),
two washers (11) and one nut (10).
6. Repeat the steps 1 to 5 on the left side of the machine with the second wire (56).
