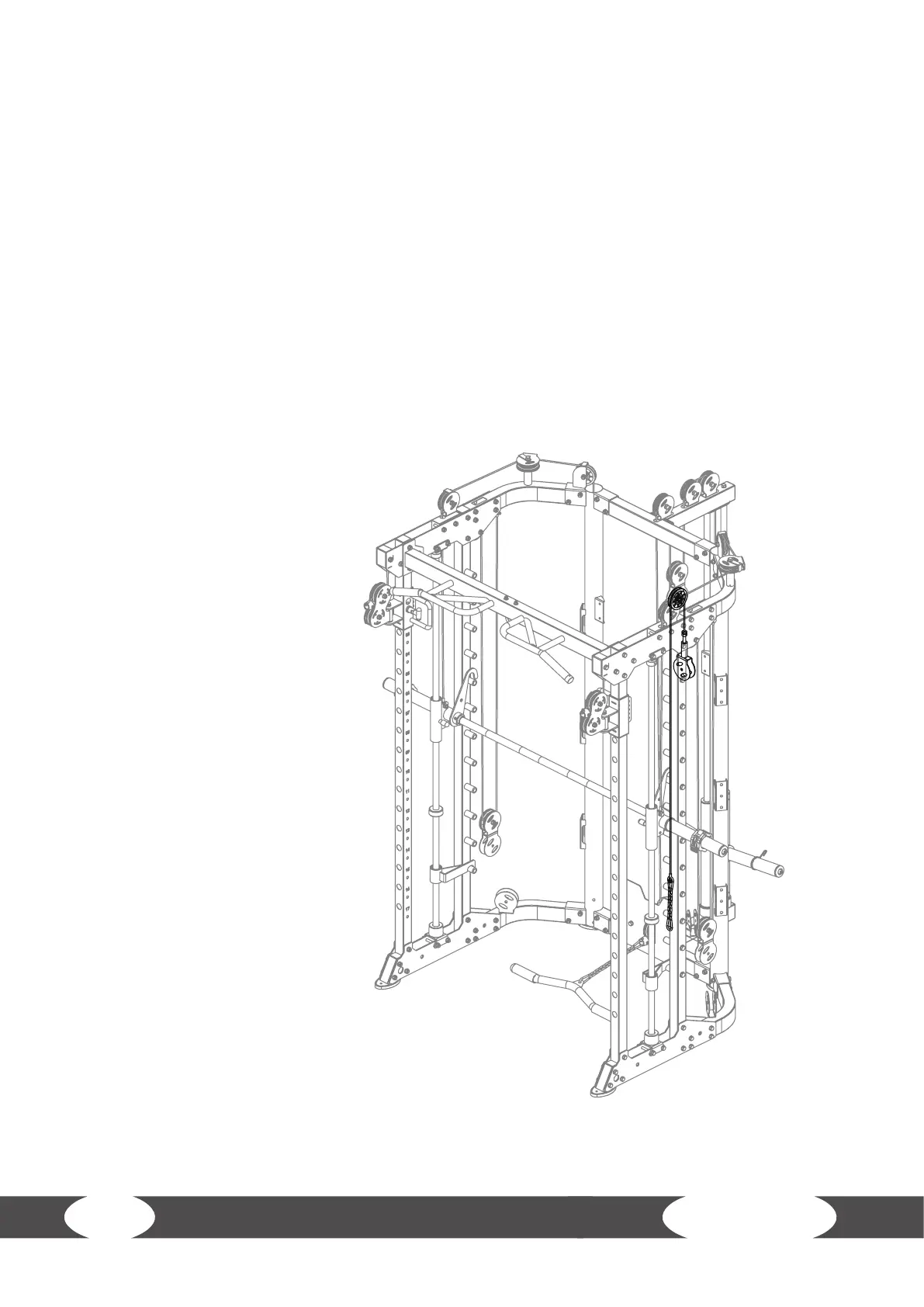

Assembly step（8）explosion drawing
Assembly step（8）explosion drawing
32
CTX5
Step 8: Assembly of the Wires, Part 4
L NOTICE
+ Use the 1705mm wire (70) and 95mm pulley (57).
+ The wire and pulley must be assembled simultaneously.
1. Attach the bolt end of the wire (70) to the pulley frame (69).
2. Route the wire (70) over one pulley (57) and attach the pulley (57) to the lower pulley bracket in
the hanging pulley frame (63) with one bolt (59), two washers (11) and one nut (10).
3. Attach the chain (71) to the end of the wire (70) and to the lower connection tube (45).
