BodyTrace BT005V - User Manual

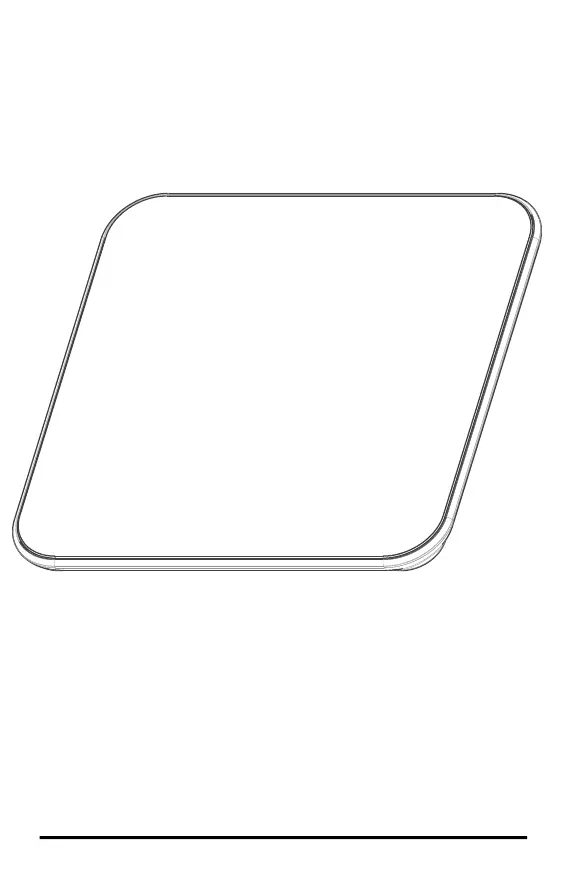

WEIGHT SCALE
BT005V
USER MANUAL
v1.1

Summary

Setup and Operation

Installing Batteries

Instructions for opening the battery door and inserting batteries correctly.

Using the Scale

Guidance on scale placement, taking measurements, transmission indicators, and aborting procedures.

Safety and Troubleshooting

Contraindications and Precautions

Lists warnings for use, environmental factors, and potential accuracy issues.

Troubleshooting and Error Codes

Addresses common problems, lists error codes (Er 1-11), and provides resolutions.

Product Information and Specifications

Storage, Maintenance, and Disposal

Instructions for device care, storage conditions, and proper disposal methods.

Measurement Functionality

Explains how body weight is measured using load cells and system components.

Technical Specifications and Symbols

Details device specs, ranges, symbols, and dimensions.

Regulatory and Contact Details

Covers FCC, IEC compliance, intended use, contents, and manufacturer contact information.

Overview

1. Function Description
2. Important Technical Specifications
3. Usage Features
4. Maintenance Features

This document is the user manual for the BT005V Weight Scale, version 1.1.

Function Description

The BT005V is a digital weight scale designed to measure the body weight of adults. It expresses body weight as a number in units of mass (kg or lb). The device utilizes load cells for measurement. When weight is applied to the glass platform, it is transferred to four load cells located above the device's feet. These load cells measure the exerted force, which is then converted into a mass value. The measurement system comprises a load platform, load cells, and control electronics with a display. This device is intended for indoor, home use and is not suitable for continuous monitoring during medical emergencies or operations. It is also not anesthesia proofed (AP/APG) and should not be used in the presence of flammable anesthetics.

Important Technical Specifications

• Model: BT005V
• Measurement Method: Load cells with strain gauges
• Measurement Range: 10-200 kg
• Resolution: 0.1 kg
• Accuracy:
  • 0-50 kg: ±0.3 kg
  • 50-100 kg: ±0.4 kg
  • 100-150 kg: ±0.5 kg
  • 150-200 kg: ±0.8 kg
• Expected Lifetime: 5 years or 10,000 measurements (may vary based on usage conditions)
• Power Supply: 4 x 1.5V AA alkaline batteries
• Battery Life: 300-500 measurements (may vary based on usage conditions)
• Operating Temperature: 10-40 °C
• Operating Relative Humidity: 15-90% (non-condensing)
• Operating Pressure: 80-105 kPa
• Storage Temperature: -20-55 °C
• Storage Relative Humidity: 0-90% (non-condensing)
• Storage Pressure: 80-105 kPa
• Device Weight: 2065 g (excluding batteries)
• Device Dimensions: 320×320×28 mm
• Device Ingress Protection: IP21 (against solid objects of 12.5 mm or greater and vertically falling water drops)
• Software Version: 4.6
• FCC ID: XMR201707BG96
• Electromagnetic Emissions: CISPR 11 Group 1, Class B
• Electromagnetic Immunity:
  • Electrostatic discharge (ESD) IEC 61000-4-2: ±8 kV contact, ±2 kV, ±4kV, ±8 kV, ±15 kV
  • Power frequency magnetic field IEC 61000-4-8: 30 A/m 50Hz/60Hz
  • Radiated RF IEC 61000-4-3: 10 V/m, 80 MHz-2.7 GHz, 80% AM at 1 kHz
• Symbols: Follow instructions for use, Caution (consult instructions for use), Weight range, Temperature range, Relative humidity range, Model number, Serial number, Date of manufacture, Ingress protection (IP21), Type BF applied part, Complies with European Community directives (CE), Do not dispose of this product as unsorted municipal waste (take for recycling).

Usage Features

Installing Batteries:

1. Open the battery door on the back of the device.
2. Install the four AA batteries provided, ensuring correct polarity (springs align with the negative sign).
3. Close the battery door.

Taking a Measurement:

1. Place the scale on a hard, even surface, avoiding carpet.
2. Step onto the glass platform and remain still.
3. Wait for the device to power on and perform the measurement.
4. Do not move or talk during the procedure.
5. After the measurement, the display briefly blinks, and results are shown.
6. Step off the glass platform.
7. The device automatically transmits measurement results, indicated by a symbol in the middle of the display. A successful transmission is also indicated before the device powers off.
8. To abort a measurement, simply step off the glass platform.

Contraindications:

• Do not use this device for infants.

Precautions:

• Use only Duracell alkaline AA batteries for optimal battery life and cellular data transmission.
• Keep the device and batteries away from children due to choking/strangulation risks.
• Do not use if the glass platform is cracked or severely scratched.
• Avoid use with high-frequency (HF) surgical equipment.
• Do not use if allergic to rubber or plastic.
• Intended for indoor, home use only; not for public use.
• Consult a medical professional if in doubt before use.
• Allow up to 30 minutes for the device to warm up/cool down to operating temperature before use.
• Do not use in the presence of flammable gases or high oxygen concentrations.
• Measurements may be inaccurate near strong electromagnetic fields (e.g., microwave ovens, wireless charging stations, X-ray machines).
• Maintain a minimum distance of 1 foot (30 cm) from wireless communication devices (Wi-Fi access points, mobile phones, cordless phones) during measurement to avoid interference.
• Do not self-diagnose or alter medical treatment based on device readings without consulting a medical professional.
• Do not touch batteries during measurement.
• The device is portable but should not be operated in transit.
• Do not use beyond its expected lifetime, as sensor performance may degrade.
• No third-party operator is required for measurements.

Troubleshooting:

• Device doesn't power on: Replace batteries with new Duracell AAs or reinsert batteries with correct polarity.
• Readings too high/low or vary significantly: Place the device on a hard, even surface (not carpet) and remain still without talking during measurement.
• Error codes (Er 1-11): Refer to the manual's error code table for specific resolutions, including battery replacement, avoiding movement, checking cellular coverage, or contacting customer support.

Maintenance Features

• Use only Duracell AA batteries.
• Store and use the device in the same location if possible, avoiding unnecessary movement when not in use.
• Store in a clean, dry place.
• Avoid direct sunlight, moisture, extreme heat, cold, or humidity.
• Avoid vibration, shaking, or other mechanical stresses.
• Clean with a soft, dry cloth. If necessary, use a dampened cloth and natural detergent. Do not use alcohol, benzene, or other harsh chemicals.
• Do not wash or splash with water; it is not water resistant.
• Keep away from infants and small children.
• Do not attempt to repair or modify the device at home, including replacing components like the glass platform or feet. Contact customer support for suspected incorrect operation.
• Servicing and repairs must be performed by authorized service personnel.
• Circuit diagrams, component lists, descriptions, and calibration procedures will be made available by the manufacturer or distributor upon request from authorized service personnel.
• Do not use the device while under maintenance or being serviced.
• Dispose of the device, its accessories, and batteries according to local waste disposal regulations and guidelines.
