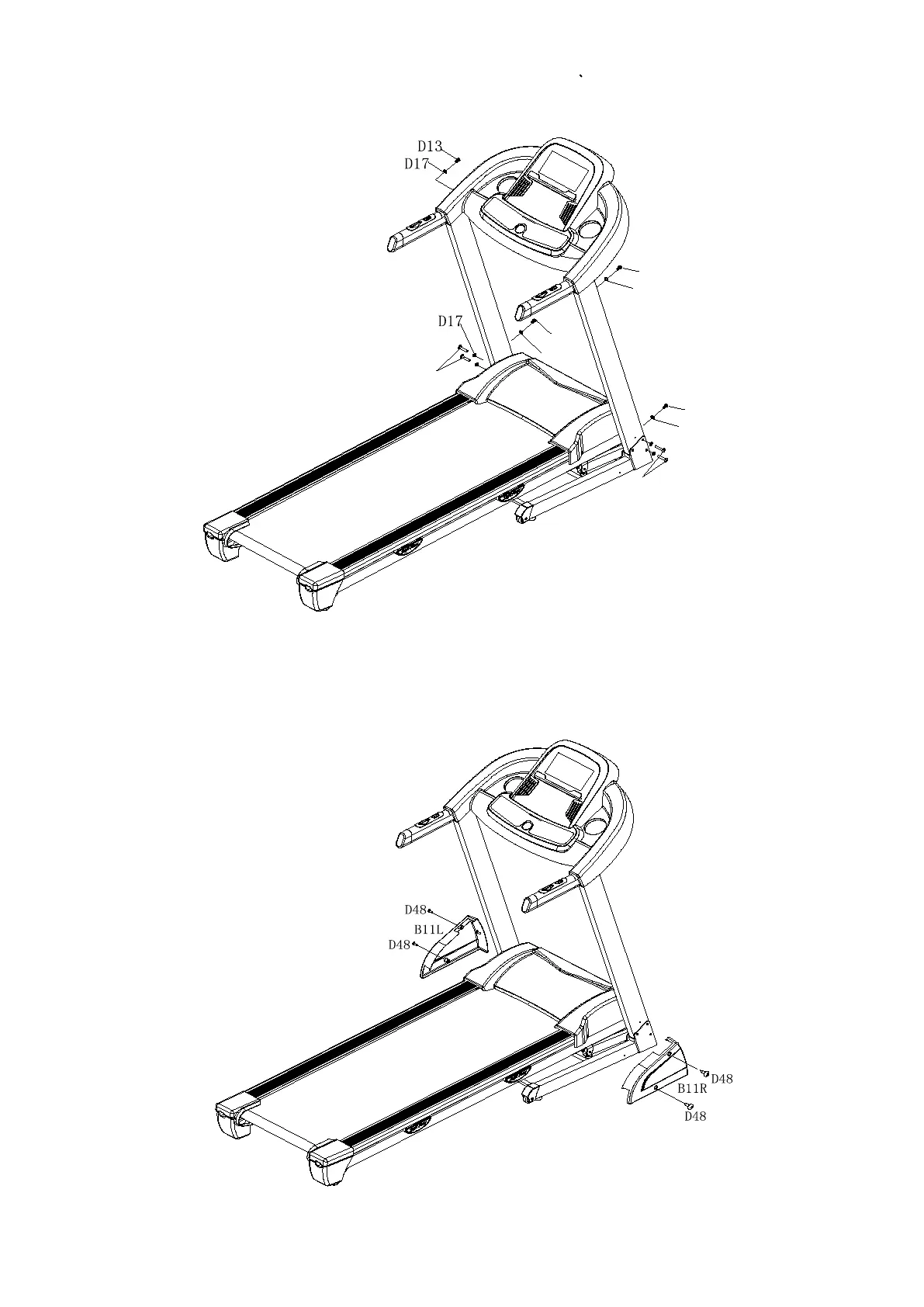

STEP 3: According to the picture, tighten the bottom frame with bolt M8*45 (D16) and inner washer (D17).
Then lock the console frame with M8*15 (D13) and inner washer (D17).
D16
D17
D13
D16
D17
D13
D17
D13
Step 4: Attach the left/right side covers (B11L) and (B11R) to the base frame with bolt ST4.2*19 (D48)
as shown in the picture below.
