9

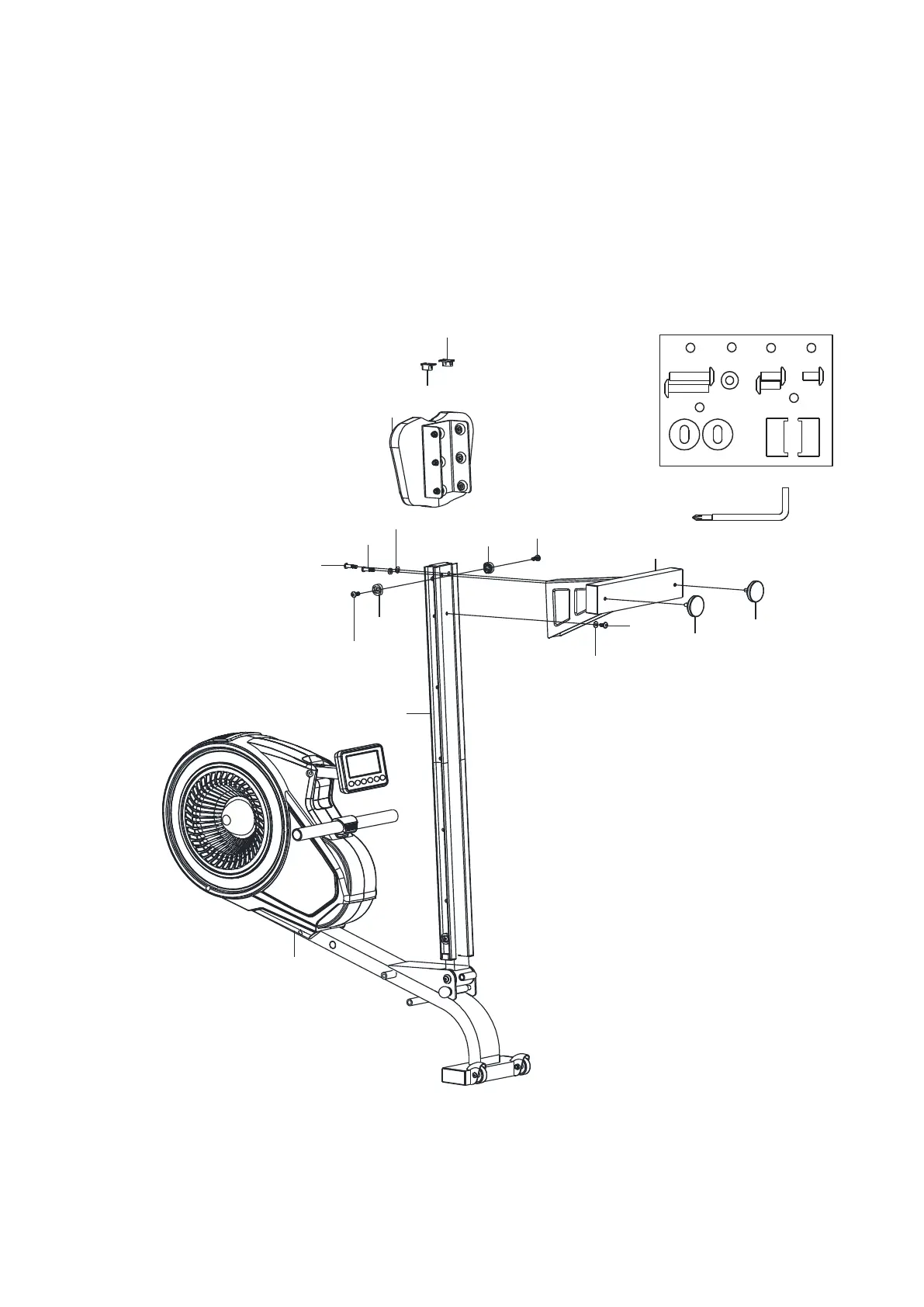

Step 3
Insert the seat (53) to the slide rail (45).
Insert two cushion rubbers (36) to the slide rail (45), slightly fasten with two ellen bolts (34).
Fasten two foot mats (55) on the rear support tube (54).
Attach the rear support tube (54) to the slide rail (45), fasten with one ellen bolt (19), three
flat washers (43) and two ellen bolts (42).
Then insert two end caps for side rail (40L/R) to the end of slide rail (45).
1
53
54
40R
40L
34
36
36
34
42
42
43
43
19
45
55
55
M8*40mm
42
2X
STEP: 3
¦µ8*¦µ17mm
43
3X
36
2X
40
2X
L/R
M8*20mm
34
2X
M8*16mm
19
1X
6mm
