4. Operation

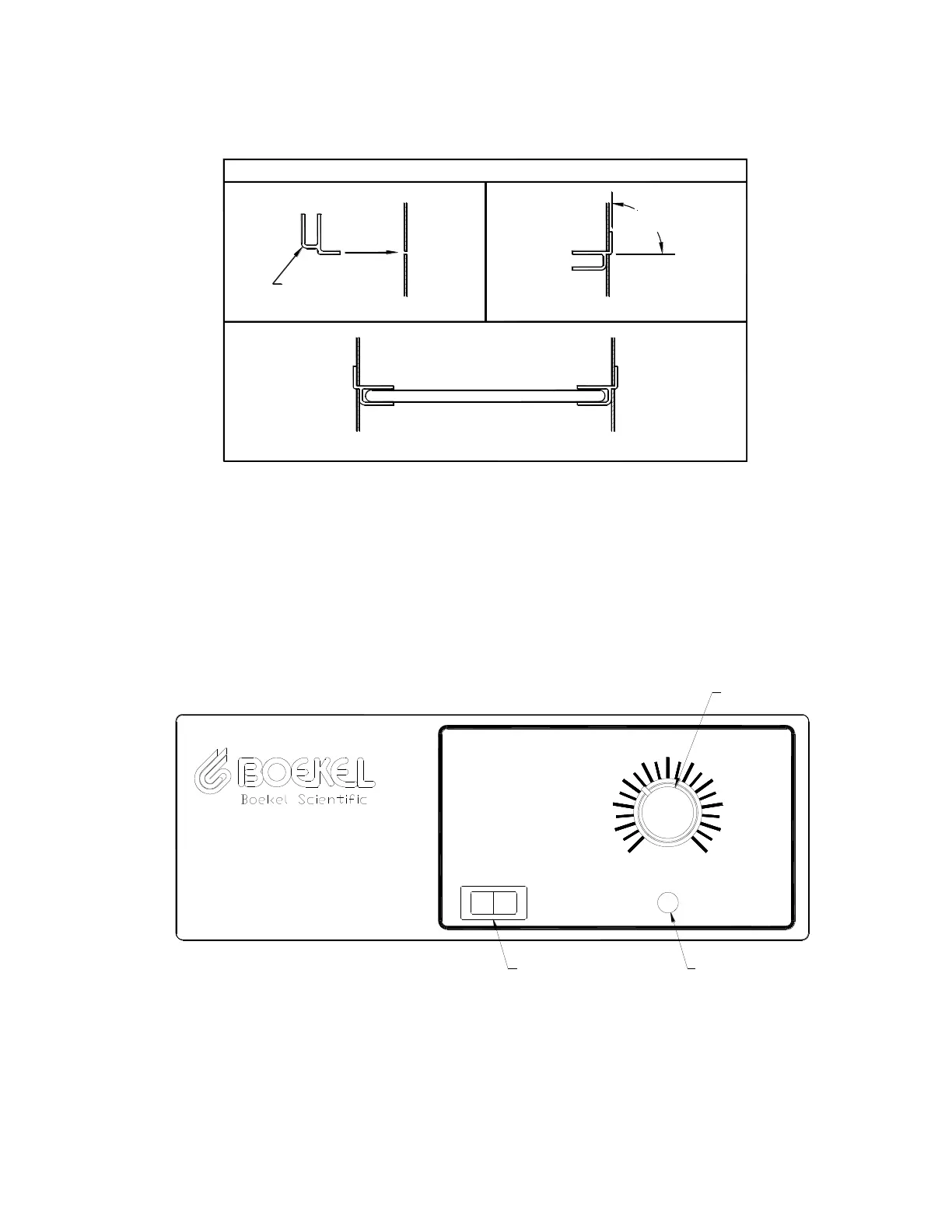

4.1 Controls and Indicator Lamps (see Figure below)
The power switch controls power to the unit.
The heater lamp indicates when the heater is operating.
The temperature adjust knob is used to control the chamber temperature.
Power
Switch
OI
Heater
Lamp
MODEL 132000
HEAT
0
1
2
3
4
5
6
7
8
9
10
Temperature
Adjust Knob
INNER WALL
SHELF
BRACKET
INNER WALL
STEP #1
STEP #3
SHELF
STEP #2
90°
INNER WALL
INNER WALL
132000 SHELF INSTALLATION DIAGRAM
