Accessories
RVCP
Remote Volume
Control Panel
Accessories
ANS500M
Sensor Microphone
(One included; additional available)
Components
BBF
Flush-Mount
Back Box
BBS
Surface-Mount
Back Box
WMAD
Front Cover/
Door
NOTE:
These items are
required for installation:
BBF or BBS, and one
WMAD.
Input Modules-
See Page 39;
Output Modules-
See Above

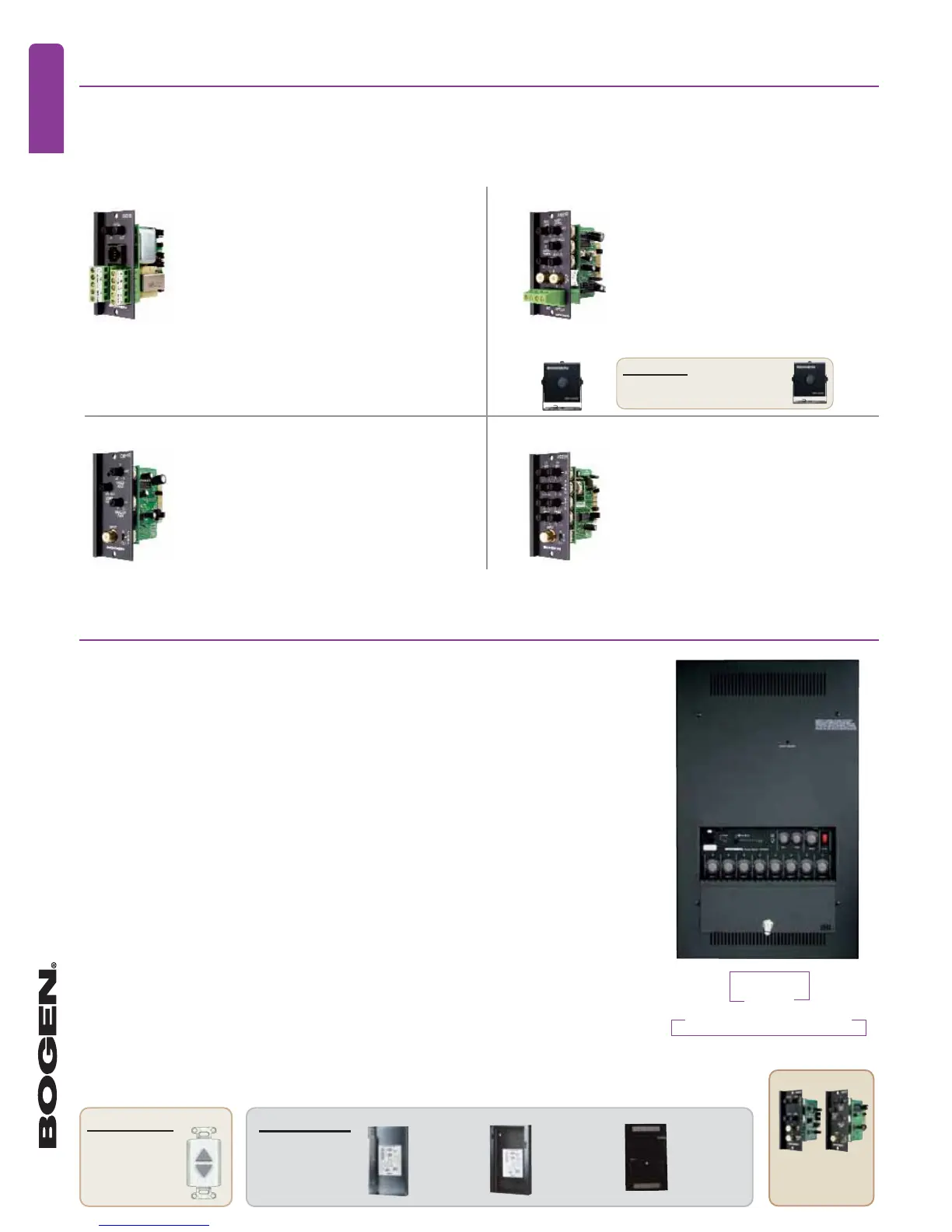

MODULES
PARAMETRIC EQUALIZER - PEQ1R
• 2 full parametric bands
• Frequency control
• ‘Q’ bandwidth control
• Gain control
• Bass and Treble control
• Unbalanced input
• Bypass switch
• Mutable input (lowest priority only)
• Gradual fade back from mute
• RCA connector
COMPRESSOR/LIMITER - CMP1R
• Compressor Ratio control
• Threshold control
• Make-up Gain control
• Bypass switch
• Unbalanced input
• Gradual fade back from mute
• Mutable input (lowest priority only)
• RCA connector
RELAY INPUT/OUTPUT - RIO1S
• Transformer-isolated, balanced line-level input
• 600-ohm or 10k jumper-selectable input impedance
• 8-ohm, 750mW output
• Input and output level controls
• Relay responds to selectable priority level
• External control of priority muting
• N.O. or N.C. relay contacts
• Input can be muted from higher priority modules,
with signal fade back
• Output can gate with relay priority level
• Screw terminal strips
• RJ11 connection with line output and dedicated
N.O. relay contact
Signal-Processing Output Modules (Input Modules on Page 39)
Bogen’s plug-in signal-processing output modules automatically insert themselves into the mix bus
signal path leading to the power amplifier stage when installed. (Shipping weight: 1 lb. each.)
Wall-Mount Power Vector Amplifiers
WV100, WV150, WV250
The Wall-Mount Power Vector Series combines up to 8 modular inputs and signal-processing outputs
to meet various application requirements. The amplifier’s convenient and efficient wall-mount design
provides a protected and accessible audio system in a permanent and inconspicuous mounting.
Product Features:
• 100-, 150-, and 250-watt models; each with large
power reserve
• 8 module input bays, accepts up to 2 signal-
pro
cessing output modules and 8 input modules
• Wide selection of advanced input and signal-
processing output modules
• Four priority levels between modules
• 4-ohm, 8-ohm, 25V, and 70V outputs
• Secure, permanent wall mounting (in-wall with
BBF or surface-mount with BBS)
• 11-segment LED output level meter registers Peak
or Average output
• Adjustable output level limiter with active indicator
• Front-mounted tape output provides unbalanced
signal level output
• Independent volume controls for each input
• Motorized master volume control, with optional
accessory RVCP for remote operation
• External mute control
• Bass and treble controls with center detent
• 125 Hz Low Cut switch
• Tone control bypass switch
• Optionally installable front-mounted input combo
jack with 1/4" stereo phone and female XLR
capabilities for connection to user-supplied
modules
• Thermal, short-circuit, and overload protection
• Thermally controlled 3-speed fan
• Listed to UL Standard 60065 for US and Canada
• Components required for installation:
Door (WMAD) and Back Box (BBF or BBS),
both sold separately
• Modules required, but sold separately
RACK-MOUNTABLE
version
on Page 38
AMBIENT NOISE SENSOR - ANS1R
• Maximum Gain control
• Ramp Speed control
• Activity Threshold control
• Ambient MIC input threshold control
• Stereo AUX input (summed mono)
• AUX level input control
• Gradual fade back from mute
• Connect up to 4 sensor mics (1 included)
• Mutable input (lowest priority only)
• RCA connectors
www.bogen.com
40
AMPLIFIERS
ADVANCED OUTPUT MODULES
MODULAR AMPLIFIERS
Technical Specifications, Dimensions,
and Weights can be found on Page 79
ANS1R
with Sensor
Microphone
