FOLDING

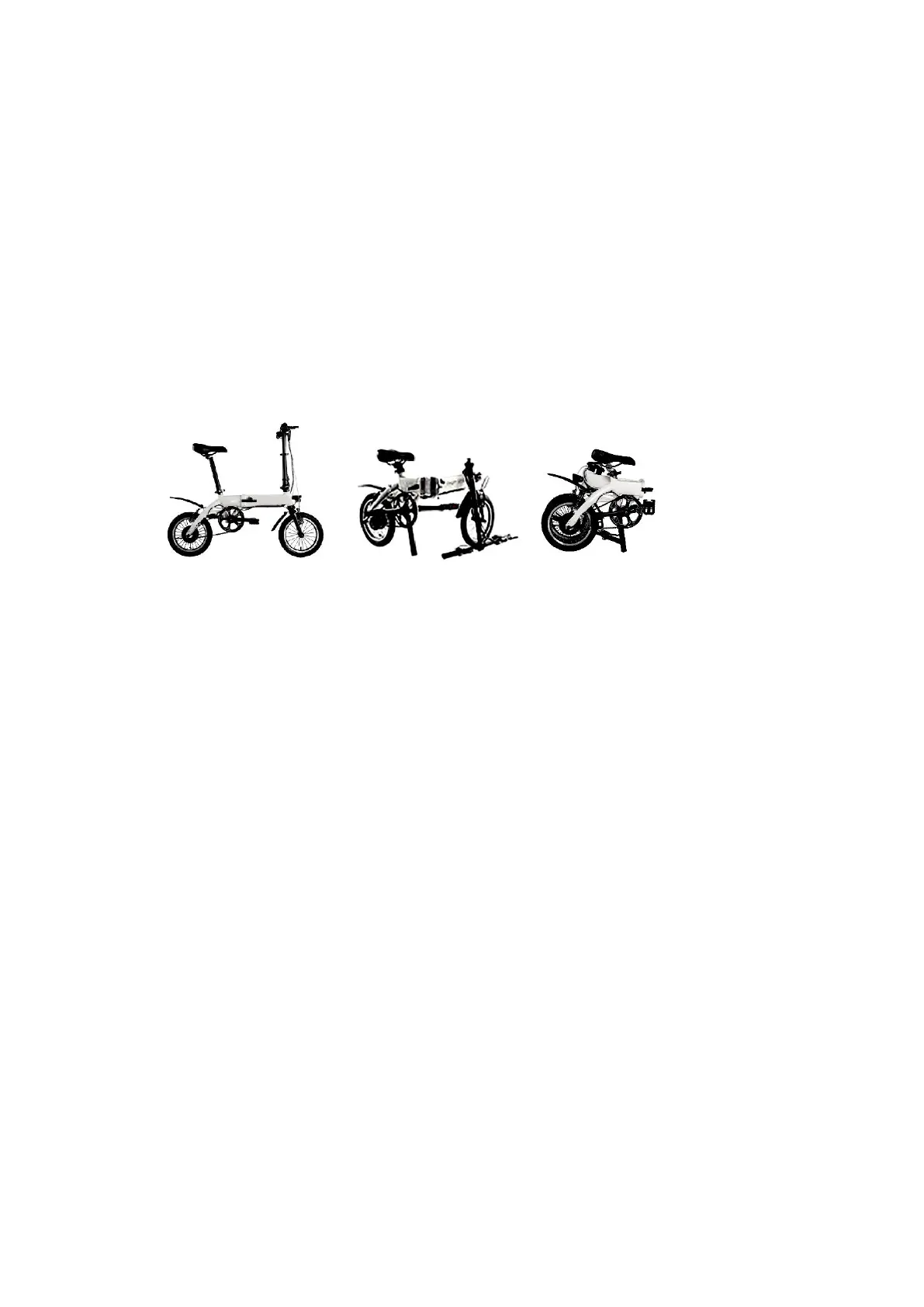

Folding process
1. Adjust the seat tube and the crank: release the quick-release lock to insert the seat tube at
the bottom, fasten it again and turn the left crank angle to 90° anticlockwise (picture 1)
2. Adjust the front handles: release the steerer tube hendle to turn the horizontal handle bar
backward and fasten it, so that the display will be well protected.
Release the lock to fold down the steerer tube and fix the handle bar at the desired height
within the safety parameters, so it doesn’t touch the ground (picture 2).
3. Fold the bike frame: open the folder lock, fold the front wheel almost parallel with the rear
wheel part, to complete the whole folding process (picture 3).
Image is for illustrative purpose only
