18

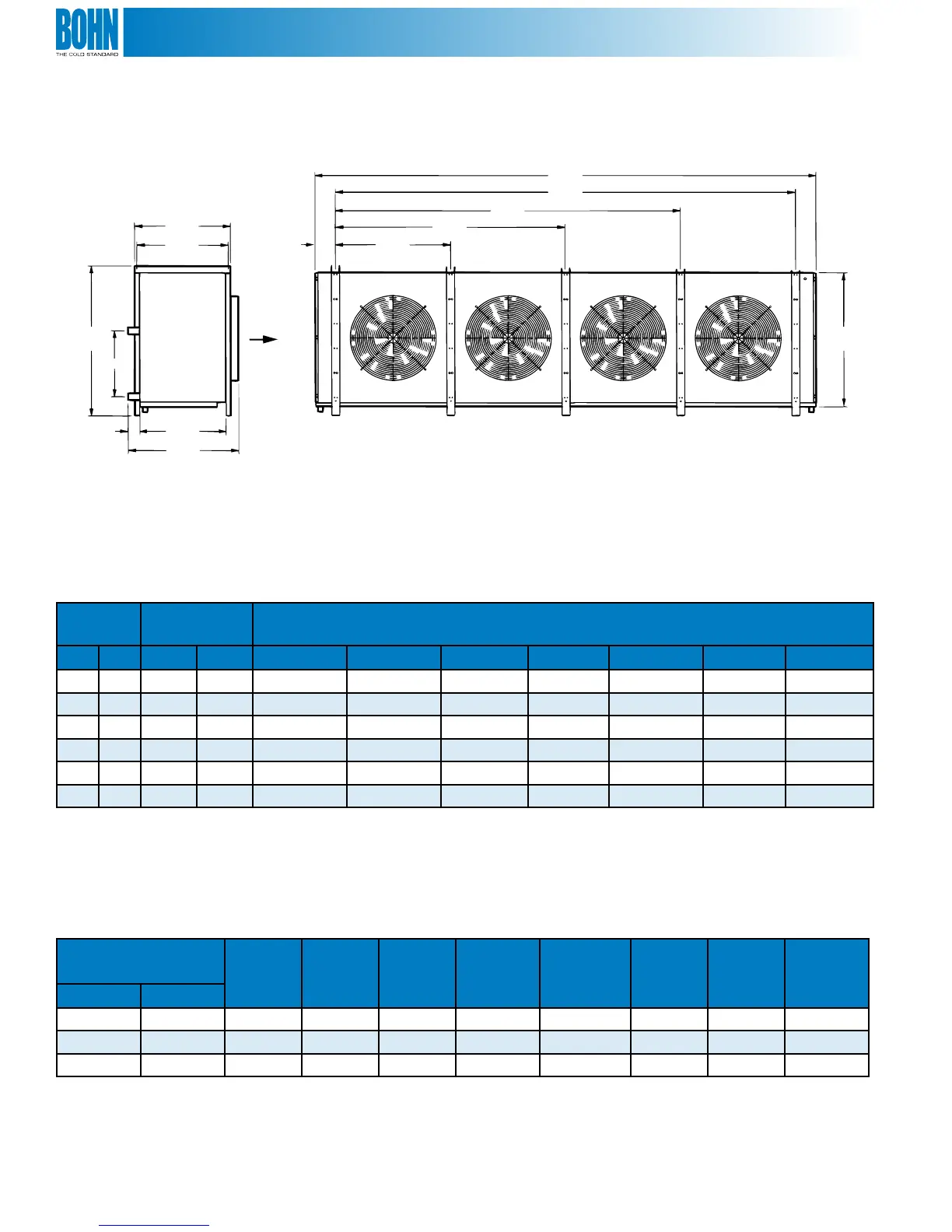

Dimensional Data
Diagram 2. All Models
Table 15. All Models Dimensions
A
B
C
D
E
35
21
/
32
34
23
3
/
4
32
4
7
/
16
41
3
/
32
7
9
/
16
G
F
Refrigerant
Piping End
Electrical
End
Accepts 5/8” Hanger Rod
Air Defrost
Models
Electric & Hot Gas
Defrost Models
Dimensions (in./mm.)
6 FPI 8 FPI 6 FPI 4 FPI A B C D E F G
1170 - 1020 890 135-13/32 3,439 120-9/32 3,055 40-3/32 1,018 80-3/16 2,037 - - 44-1/2 1,130 50-5/16 1,278
1400 - 1200 1050 135-13/32 3,439 120-9/32 3,055 40-3/32 1,018 80-3/16 2,037 - - 44-1/2 1,130 50-5/16 1,278
1610 - 1390 1220 135-13/32 3,439 120-9/32 3,055 40-3/32 1,018 80-3/16 2,037 - - 50-7/32 1,276 55-13/16 1,418
1900 2160 1650 1440 142-1/2 3,620 127-25/32 3,246 42-19/32 1,082 85-3/16 2,164 - - 50-7/32 1,276 55-13/16 1,418
2200 2500 - - 185-1/2 4,712 170-3/8 4,328 42-19/32 1,082 85-3/16 2,164 127-25/32 3,246 44-1/2 1,130 50-5/16 1,278
2440 2780 2120 1860 185-1/2 4,712 170-3/8 4,328 42-19/32 1,082 85-3/16 2,164 127-25/32 3,246 50-7/32 1,276 56-1/4 1,429
* 3-Phase Motors are 1140 RPM
Air throw data based on 30 ft. ceiling height with no obstructions where velocity drops to 50 fpm
Table 16. Electric & Hot Gas Defrost Models Air Throw
Electric & Hot Gas
Defrost Models
Standard
Motor
RPM
Standard
HP
Air
Throw
Air Throw
w/ Collar
Optional
High CFM
Motor RPM
Optional
HP
Air
Throw
Air Throw
w/ Collar
6 FPI 4 FPI
450 - 950 400 - 840 850 1/2* 70 85 1,750 2 80 100
1020 - 1390 890 - 1220 850 1 & 1-1/2 100 120 1,750 3 115 145
1650 - 2120 1440 - 1860 1,140 1-1/2 120 145 1,750 3 130 150
