Bohn BHA - Dimensional Data

17
Dimensional Data
A
B
C
26
1
/
4
24
1
/
4
21
5
/
32
29
1
/
2
4
9
/
16
G
F

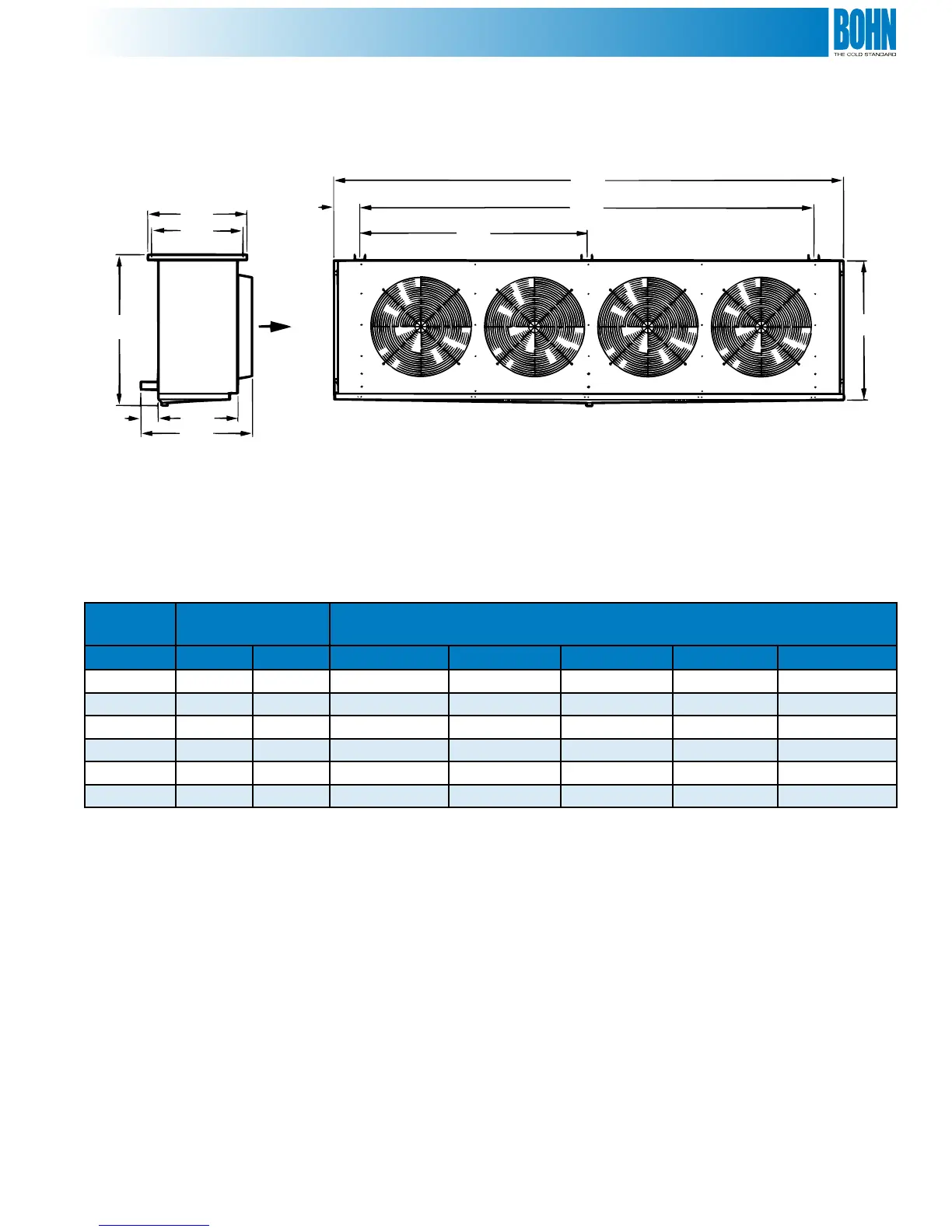

Diagram 1. All Models
6
7
/
8
Refrigerant
Piping End
Accepts
1
/
2
” Hanger Rod
Electrical
End
8
Air Defrost
Models
Electric & Hot Gas
Defrost Models
Dimensions (in./mm.)
6 FPI 6 FPI 4 FPI A B C F G
520 450 400 83-3/32 2,111 68-1/8 1,730 - - 37-3/16 945 40-11/32 1,025
630 550 480 83-3/32 2,111 68-1/8 1,730 - - 37-3/16 945 40-11/32 1,025
750 640 560 105-5/32 2,671 90-3/16 2,291 45-3/32 1,145 37-3/16 945 40-11/32 1,025
850 740 650 105-5/32 2,671 90-3/16 2,291 45-3/32 1,145 37-3/16 945 40-11/32 1,025
930 810 710 135-7/32 3,435 120-1/4 3,054 60-1/8 1,527 37-3/16 945 40-11/32 1,025
1100 950 840 135-7/32 3,435 120-1/4 3,054 60-1/8 1,527 37-3/16 945 40-11/32 1,025
Table 14. All Models Dimensions
