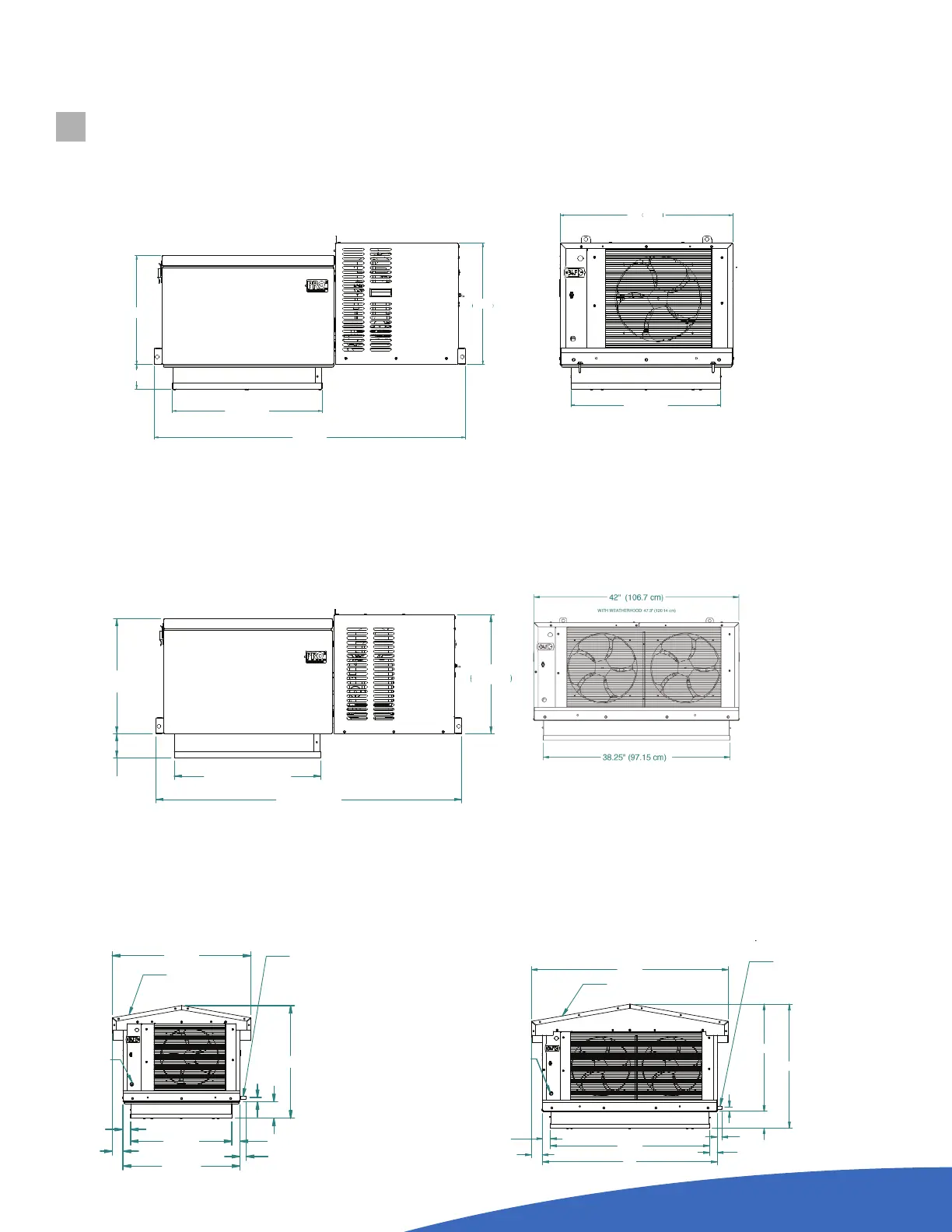

DIMENSIONAL DRAWINGS
FIGURE A
P2 Cabinet Dimensions Without Weather Hood
FIGURE B
P3 Cabinet Without Weather Hood
FIGURE C
P2 Cabinet With Weather Hood
FIGURE D
P3 Cabinet With Weather Hood
25”X25” PANEL OPENING REQUIRED FOR EVAPORATOR SECTION OF “P2” CABINET SIZES.
* - 21.5” (54.61 cm) ON OUTDOOR MODELS WITH WEATHER HOOD
25”X38.5” PANEL OPENING REQUIRED FOR EVAPORATOR SECTION OF “P3” CABINET SIZES.
* - 23.5” (59.69 cm) ON OUTDOOR MODELS WITH WEATHER HOOD
28.5" 72.4cm
24.75" (62.87 cm)
17.5"
(44.5 cm)
4"
(10.16 cm)
24.75" (62.84 cm)
52" (132 cm)
20"
50.9cm
FIGURE 2 - B CABINET DESIGN
25"X25" PANEL OPENING REQUIRED FOR EVAPORATOR SECTION OF "B" CABINET SIZES.
WITH WEATHERHOOD: 33.8" (85.85 cm)
*
* - 21.5" (54.61 cm) ON OUTDOOR MODELS WITH WEATHERHOOD
28.5" 72.4cm
24.75" (62.87 cm)
17.5"
(44.5 cm)
4"
(10.16 cm)
24.75" (62.84 cm)
52" (132 cm)
20"
50.9cm
FIGURE 2 - B CABINET DESIGN
25"X25" PANEL OPENING REQUIRED FOR EVAPORATOR SECTION OF "B" CABINET SIZES.
WITH WEATHERHOOD: 33.8" (85.85 cm)
*
* - 21.5" (54.61 cm) ON OUTDOOR MODELS WITH WEATHERHOOD
42" (106.7 cm)
38.25" (97.15 cm)
19"
(48.3 cm)
20.00"
50.8cm
24.75" (62.87 cm)
4"
(10.16 cm)
52" (132 cm)
FIGURE 3 - C CABINET DESIGN
25"X38.5" PANEL OPENING REQUIRED FOR EVAPORATOR SECTION OF "C" CABINET SIZES.
WITH WEATHERHOOD: 47.3" (120.14 cm)
*
* - 23.5" (59.69 cm) ON OUTDOOR MODELS WITH WEATHERHOOD
AGENCY LISTINGS
AIR FLOW
UOM: inches
33 7/8
24 3/4
ELECTRICAL
CONNECTION
27 1/2
1
1 1/2
2
28 9/16
2 5/8
1 13/16
1 1/8 49 3/16 1 1/8
23 7/16
10 1/4
23 11/16 24 3/4 3
51 3/8
5/8 CONDENSATE
DRAIN OUTLET
WEATHERHOOD
4 1/16
AGENCY LISTINGS
AIR FLOW
UOM: inches
ELECTRICAL
CONNECTION
2 5/8
1 7/8
42
1 1/8
1 7/8
4 1/16
1
25 11/16
29 3/4
10 1/4
23 11/16 24 3/4 3 1/16
51 1/2
1 149 1/2
47 1/4
38 1/4
WEATHERHOOD
5/8 CONDENSATE
DRAIN OUTLET
