Bohn PRO3 - Recommended Unit Placement; One PRO3 System Placement; Two PRO3 Systems Placement

PRO
3
TOP MOUNT PACKAGED REFRIGERATION SYSTEM
4
Top View
One PRO
3
System
Evaporator
Section
Compressor
Section
Evaporator
Airow
Top View
Two PRO
3
Systems
Multiple units must be spaced
properly to provide adequate
air circulation.
W
Min.
W
Min.
2 x Width
Min.
Evaporator
Section
Compressor
Section
Evaporator
Section
Compressor
Section
W = Unit Width
Evaporator
Airow
Evaporator
Airow

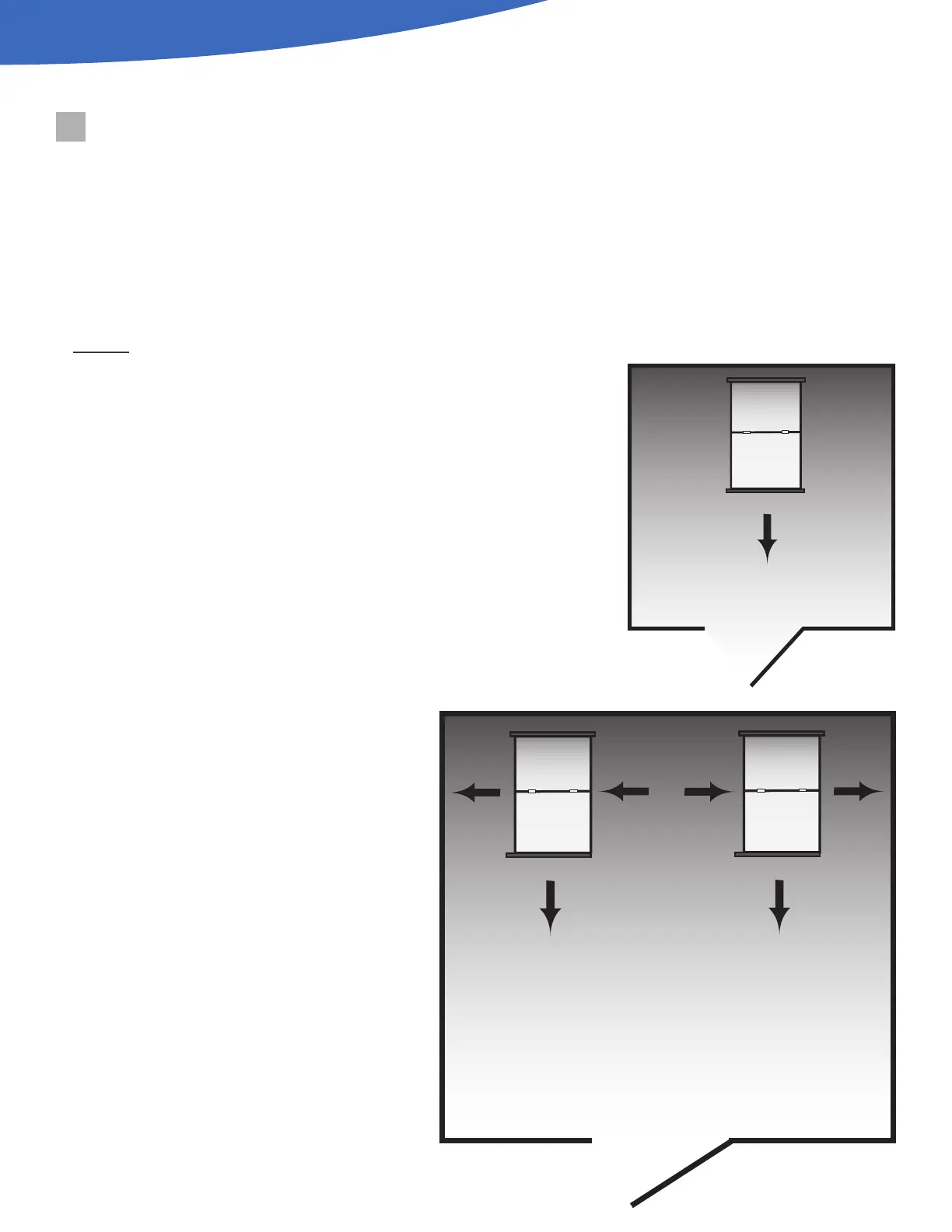

RECOMMENDED UNIT PLACEMENT
FOR OUTDOOR MODELS
Some general rules for the evaporator section placement
which must be followed are:
1. Ensure that the structural integrity of the box can withstand
the weight of the top mounted equipment.
2. The air pattern must cover the entire room.
3. NEVER locate the evaporator section over doors.
4. Location of aisles, racks, etc. must be known.
5. Never remove or unlock any panel cam-locks to install
top mounted equipment.
The size and shape of the storage will generally determine
the type and number of units to be used and their location.
NOTE: Always avoid placement of
units directly above doors and door
openings.
