Bohn PRO3 - Outdoor Model Installation Diagrams; Curb Placement on Roof; Roof Membrane Installation; Unit Placement on Roof

7
7
7
7
7

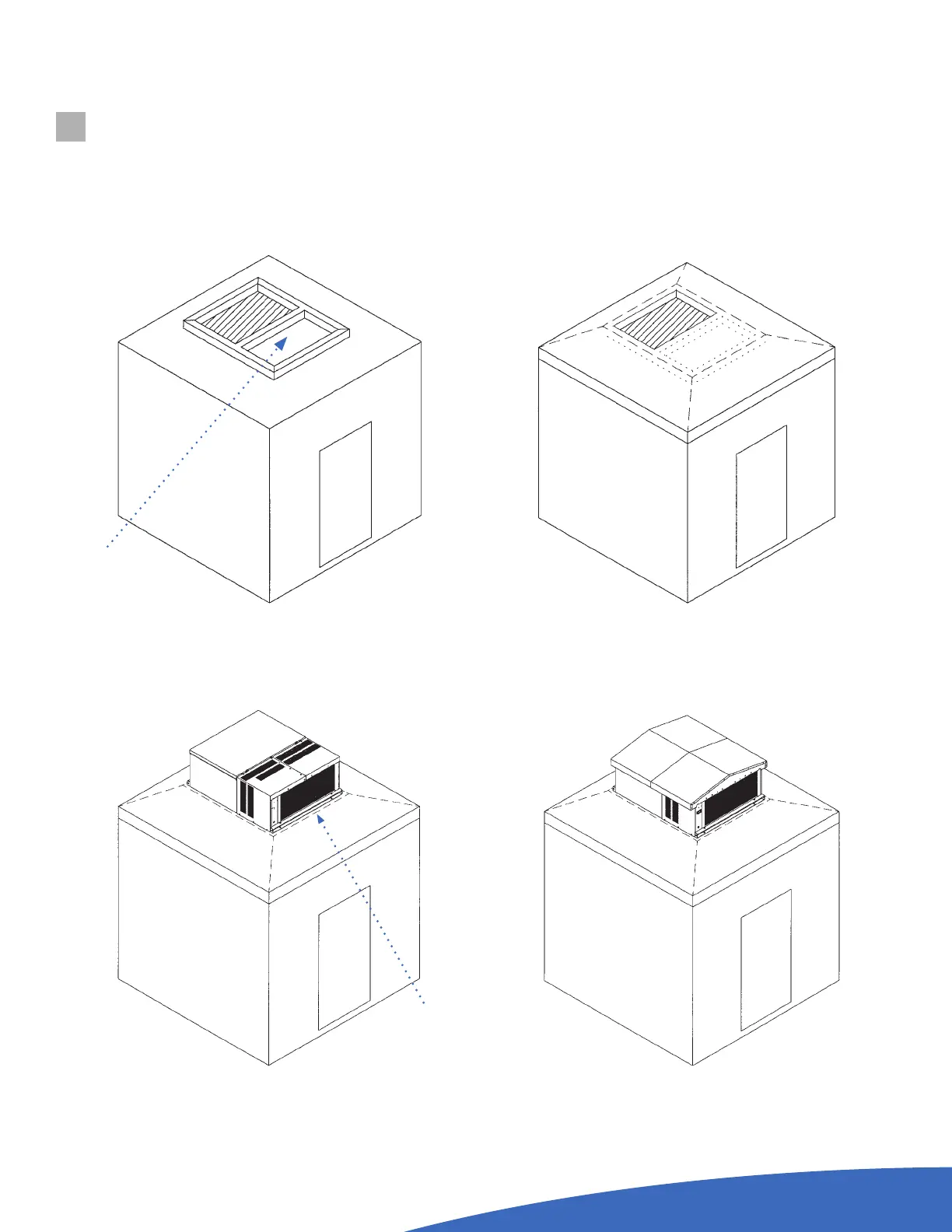

Figure 1. Curb placed on roof of walk-in cooler.
Figure 2. Roof membrane placed over curb.
Figure 3. Outdoor unit placed on roof of walk-in color.
(see rigging instructions).
Figure 4. Weather hood installed after electrical
service connection.
This area of
curb may be solid.
Note: Do not caulk
around the base of
compressor compartment.
OUTDOOR MODELS
Example Outdoor Curb Installation
(Curb supplied by others)
