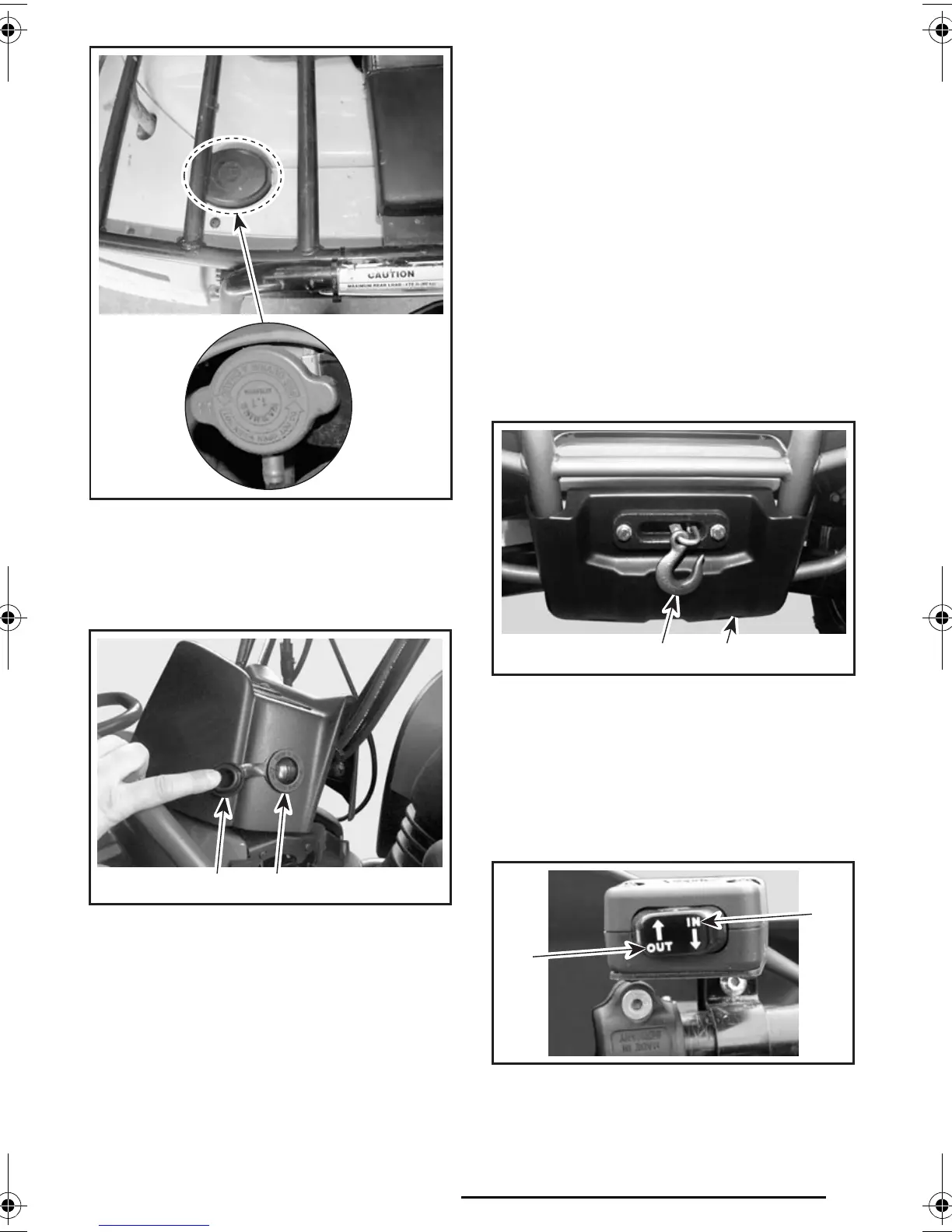

25) 12-Volt Power Outlet
Quest MAX and Traxter MAX Series
It is located on left side of cluster.
TYPICAL
1. Protective cap
2. Power outlet
Convenient for handheld spotlight or
other portable equipment.
Remove cap to use. Always reinstall pro-
tective cap after use to protect against
weather.
Do not exceed the rating capacity. See
SPECIFICATIONS.
An auxiliary supply is available to connect
additional accessories. Two wires are
hidden in the wiring harness at the rear
of vehicle. See an authorized Bombardier
ATV dealer for more details.
26) Fuses
Quest MAX and Traxter MAX Series
The electrical system is protected with
fuses. Refer to MAINTENANCE for de-
tails.
27) Winch
Quest MAX XT and Traxter MAX XT
Located behind front skid plate.
1. Winch
2. Front skid plate
28) Winch Control Switch
Quest MAX XT and Traxter MAX XT
Located on the LH side of the handle-
bar, near multi-function switch.
1. In
2. Out
To take out wire rope from winch,
press the left side of switch.
V01A48Y
V01L0FY
12
1
V01A1OY
2
V04A15Y
2
1
