TRAXTER MAX SERIES

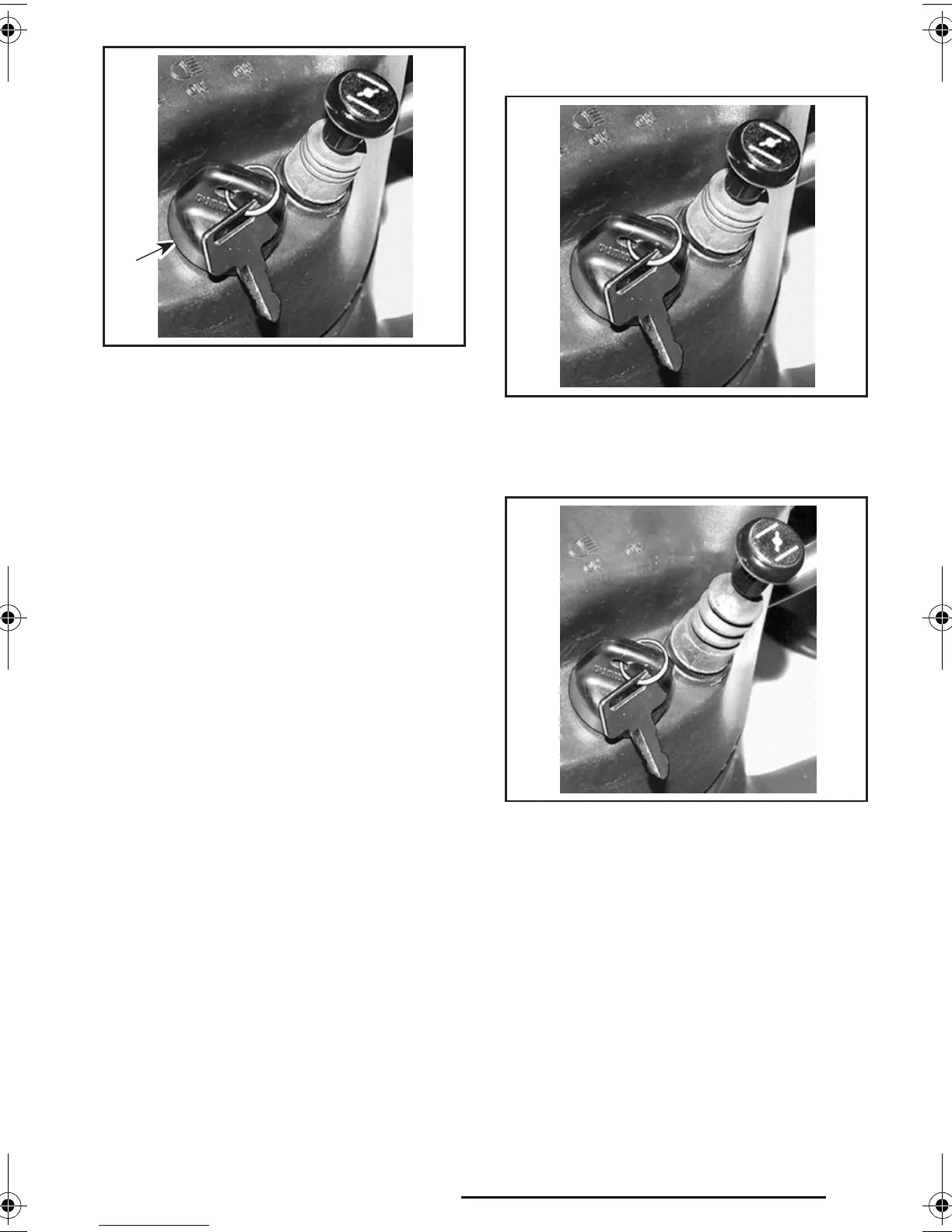

1. Ignition switch
Insert key in switch and turn to the de-
sired position. To remove key, turn key
to OFF then pull it out.
The ON with lights position, turns on
all lights with either the engine running
or not. The headlamps automatically
dim to low intensity. Remember that
having the lights on without the engine
running discharges the battery. Al-
ways turn ignition to OFF after engine
has been stopped.
NOTE: While engine can be stopped
by turning ignition key OFF, we recom-
mend the engine be stopped by press-
ing the start/stop switch.
Traxter MAX Series
Auto Shut-Down
If for some reason, the engine is not
started within approximately 6 min-
utes, the MPEM (Multi-Purpose Elec-
tronic Module) will shut down to cut all
electrical system functions. Simply
turn the key to OFF then to ON to re-
gain normal use.
11) Choke Knob Lever
Traxter MAX Series
Located at bottom of cluster. This de-
vice features a variable lever to ease
cold start.
Position OFF is for normal use with a
warm engine (pushed in).
CHOKE KNOB LEVER IN THE OFF POSITION
The full choke position is used for low-
er temperature (fully extended).
CHOKE LEVER IN THE FULL CHOKE POSITION
The other positions between OFF and
FULL position, will be use depending
on the temperature.
To adjust the choke lever resistance, lift
the rubber bellows then screw the
choke lever nut with your fingers. Do not
torque excessively because the choke
lever won’t move easily. Put back the
rubber bellows in its original position.
V01I17Y
1
V01I17Z
V01I18Y
