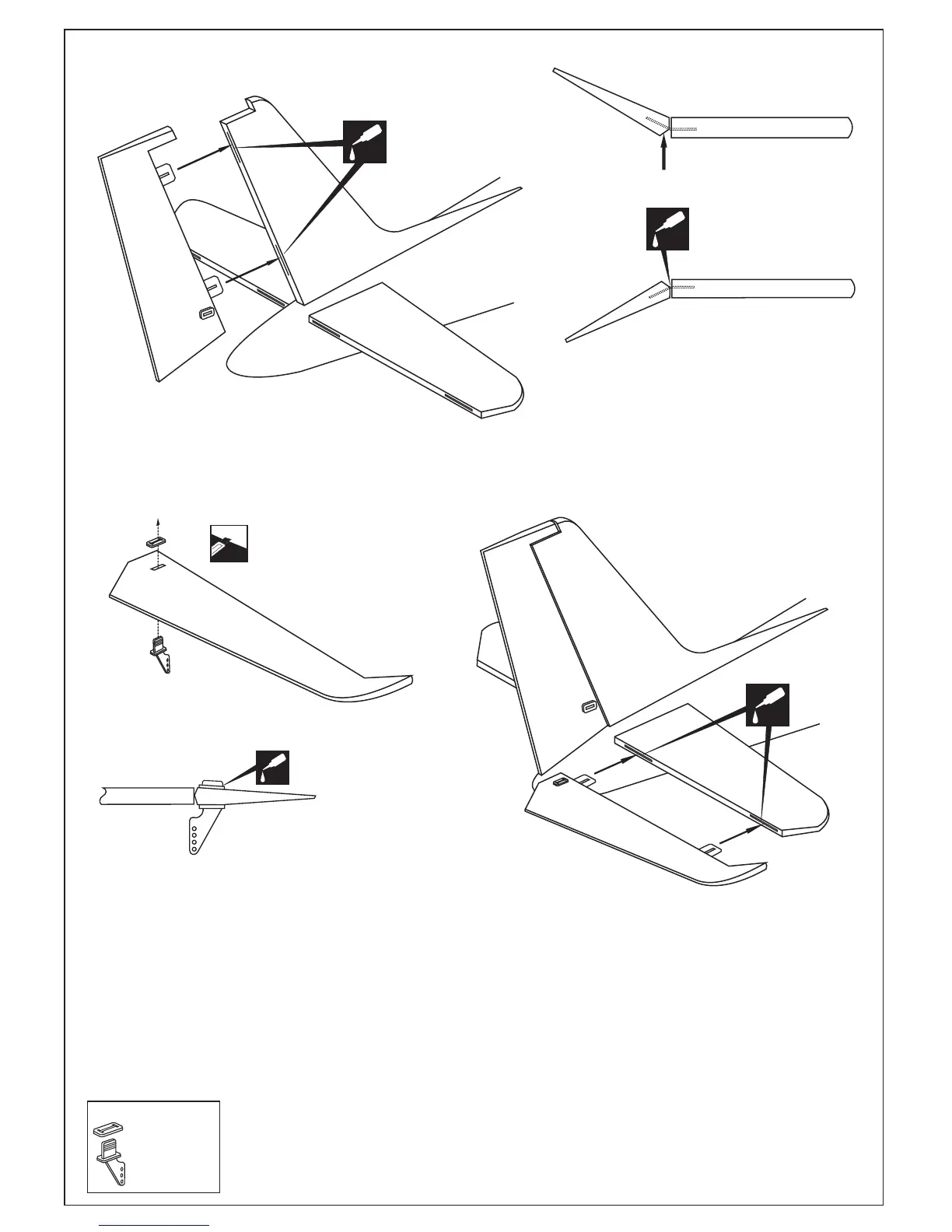

BONANZA BEECHCRAFT - Rudder Installation; 9- Rudder Attachment and Hinging

Plastic control horn
.....................1
CA
Apply thin CA
glue on the top
of the hinge
Apply a thin layer of petroleum jelly
VERTIAL STABILIZER
VERTICAL STABILIZER
TOP-VIEW
! Securely glue together. If coming off during fly,
you lose control of your air plane.
Cut away only
the covering
Note: the rectangular hole for the control horn
installation is pre-cut at factory.
CA
Thin CA
! Securely glue together. If coming off during fly,
you lose control of your air plane.
CA
Thin CA
CA
Thin CA
Repeat the previous procedures to hinge the second
elevator to the other side of the horizontal stabilizer.
9- Rudder
