ANNEX 1 - CHECKING OIL LEVEL ON ATEX-SPECIFIED GEAR UNITS
Gear units are normally supplied with a yellow oil level plug of the spill type.
To check the oil level, first identify the yellow level plug.

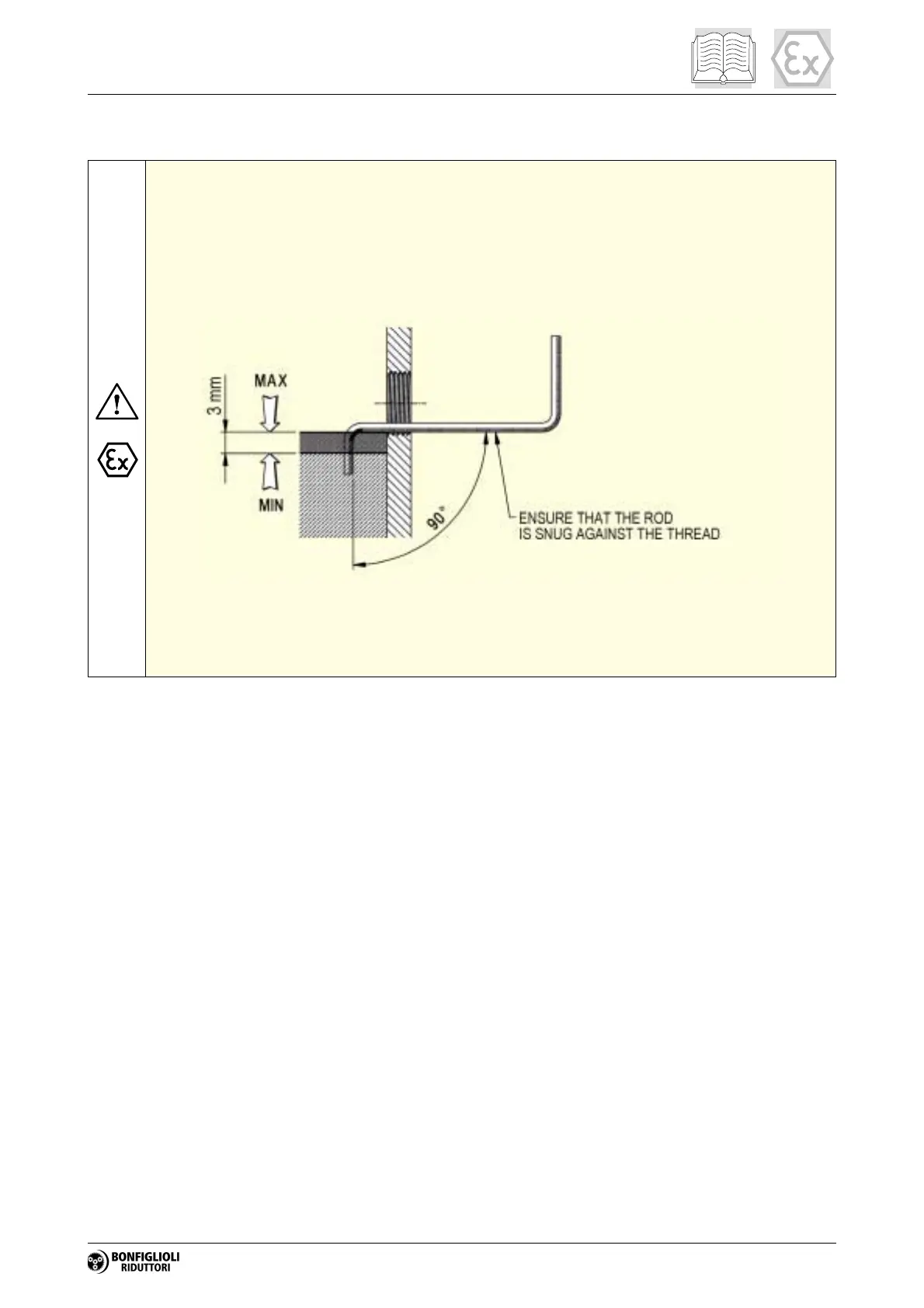

Remove the plug and insert a bar of the right size for the hole and of the shape shown in the figu
-
re below.
If the level is more than 3 mm below the overflow level, top up and check the reason for the drop
in oil level.
Helical in-line gear units C11, C21 and C31 (all mounting positions) and bevel helical gear units
A10, A20 and A30 in mounting positions B6 and B7 only do not feature a level plug. The oil level
must therefore be checked, not as described above, but via a hole provided for the purpose in
the manner described hereafter.
