20 / 64
IOM Manual VF-W_ATEX_gb - Translation of original instructions in Italian - Rev 03_0 - 30/09/16

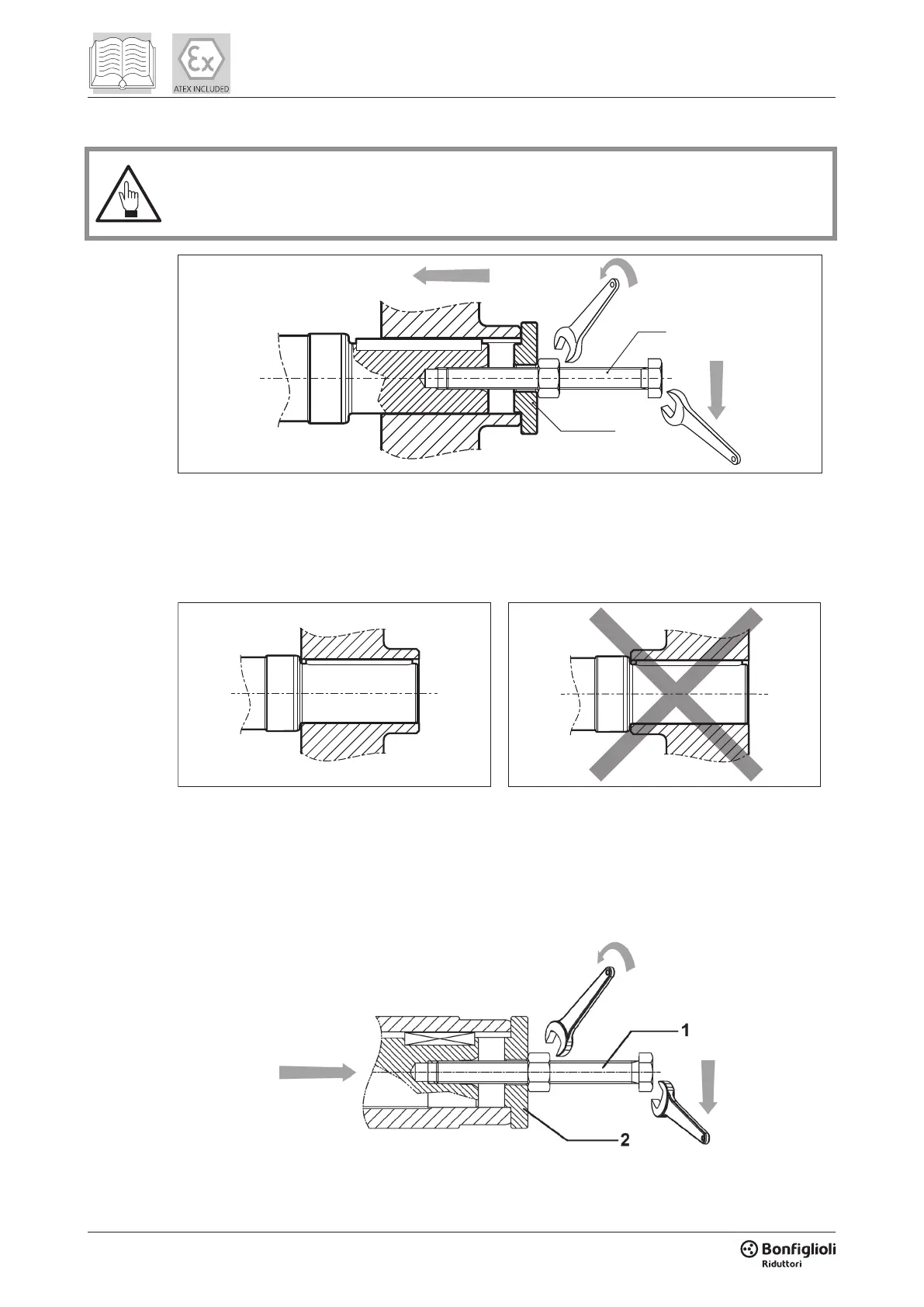

5.1.1 Gearboxes with solid shafts (input and output)
Do not use hammers or other tools which might damage the gearbox shafts or bearings to t
external parts. Proceed as shown below, following the recommendations given in the “INSTALLING
CONNECTING ELEMENTS” section in this manual:
Bolt (1) and spacer (2) shown above are not included in the supply.
2
1
To minimise the loads on the shaft bearings, when mounting transmission mechanisms with asymmetrical
hubs use the con guration shown in diagram (A) below:
(A)
5.1.2 Gearboxes with hollow output shaft and keyway or with splined hollow output shaft
Proceed as shown in the following diagram to couple gearboxes with a hollow output shaft to solid machine
shafts. See also the “PREPARING CUSTOMER SHAFTS” section in this manual.
The tie bolt (1) and spacer (2) are not included in the consignment.
