3 TECHNICAL INFORMATION
3.1 EQUIPMENT IDENTIFICATION
The gearbox bears the following identifying nameplate. The nameplate provides essential information and
specications for correct and safe use. The designation of the gearbox is explained in the sales catalogue.
If the gearbox is supplied tted with a motor (gearmotor), all information regarding the motor itself is
provided in the motor’s own manual.

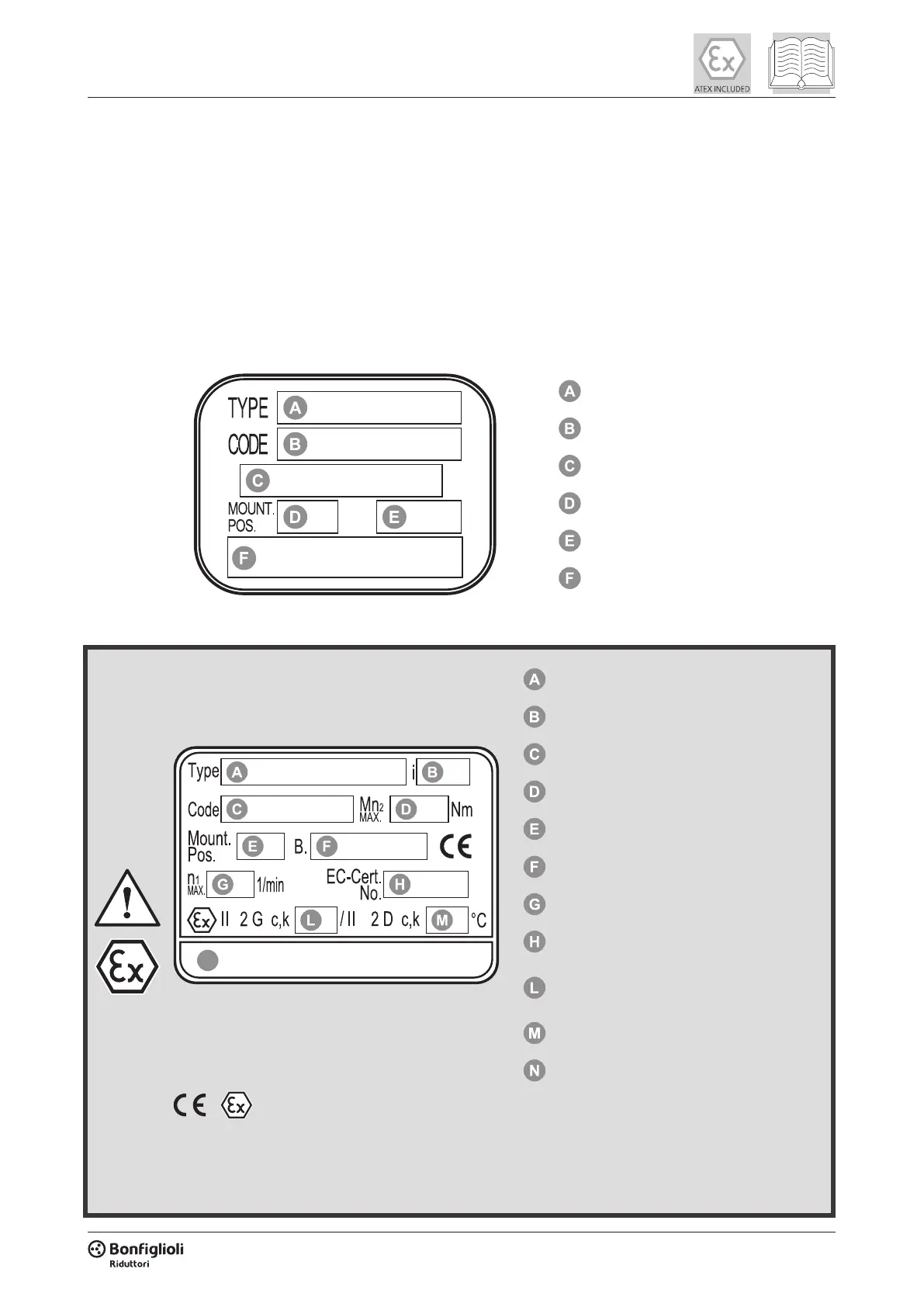

Nameplate information
Gearbox type
Product code
Month / Year of manufacture
Mounting position
Gear ratio
Name of manufacturer
Nameplate data for ATEX-specied
gearboxes
Gearbox type
Gear ratio
Product code
Transmissible torque [Nm] at n
1
= 1400 rpm
Mounting position
Month / Year of manufacture
Maximum drive speed
Deposited certicate no.
Temperature class, or
maximum surface temperature
Maximum surface temperature
Name of manufacturer
N
CE - Ex Mark
●
Environmental limits (ambient temperature range: - 20°C to + 40°C).
● T
emperature class: T4 for 2G and 135°C for 2D. Some types of gearbox, as specied in
the catalogue, are exceptions to this rule and are marked temperature class: T3 for 2G or
160°C for 2D.
●
Notied body with whom the technical le has been deposited.
