- 13 -
1) Cut the desired length for your bag from the roll
using a pair of scissors. Cut as straight as
2) Open the appliance lid
① by pressing the lid
release ⑧and opening the lid ① upwards.

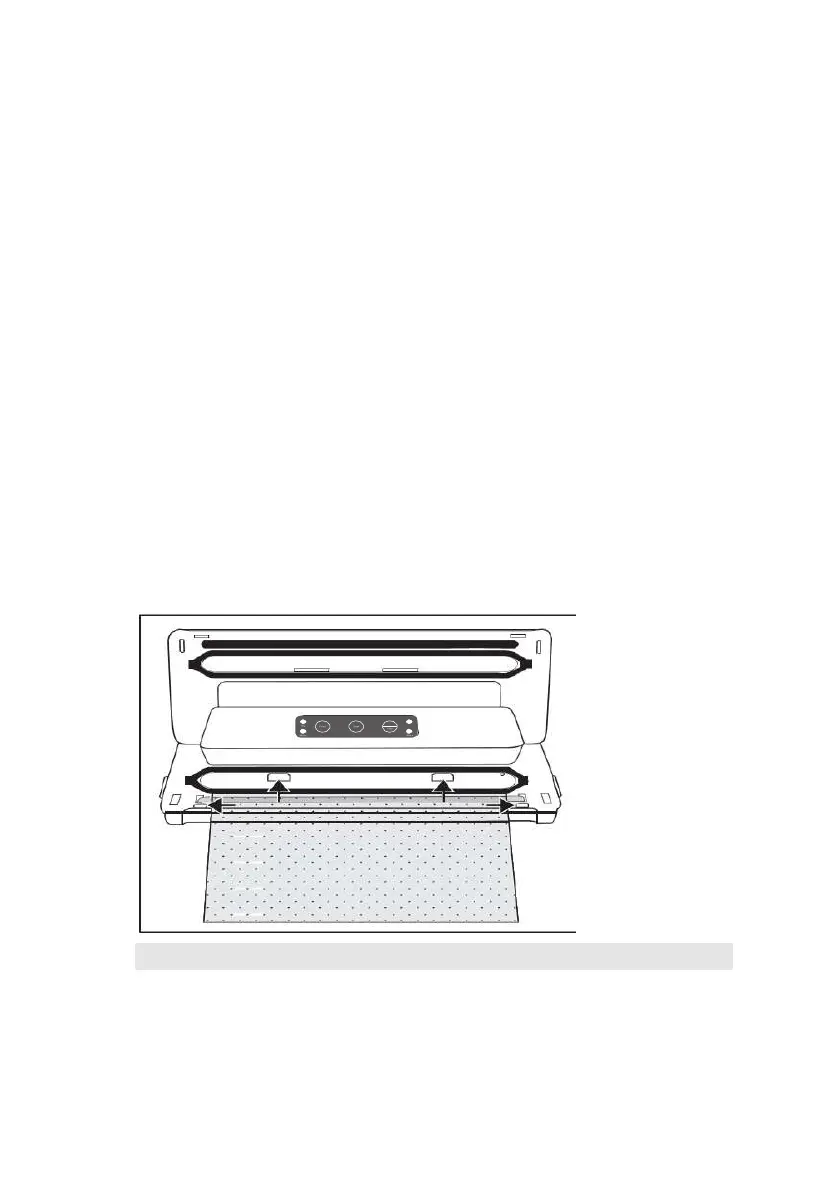

3) Lay the open end of the bag as far into the
appliance so that the opening of the bag is located
centrally under the lower sealing ring
⑤. The bag
should be inserted no further than the rear limiters
⑥
and must lie between the front limiters ⑦. If the
bag lies over one or both of the two limiters ⑦, then
the bag cannot be correctly welded.
NOTE
►The bag opening must lie flat on the welding wire
VAC Seal
VAC Seal
possible.
