ASSEMBLY AND DISMANTLING OF
THE SIDE RUNNER FRAMES

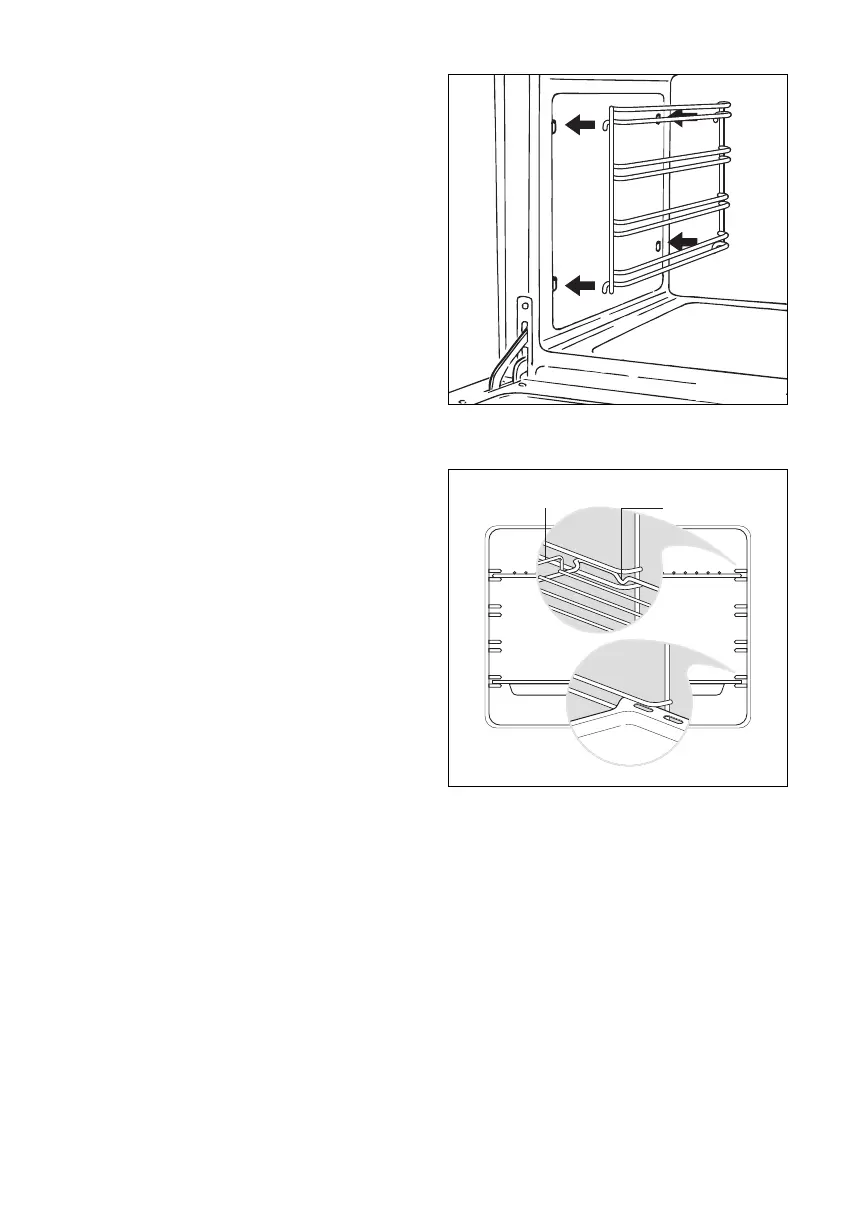

• Fit the side runner frames into the
holes on the side walls inside the
oven (fig. 7.6).
• Slide into the guides, the shelf and
the tray (fig. 7.7).
• The rack must be fitted so that the
safety notch, which stops it sliding
out, faces the inside of the oven; the
guard rail shall be at the back.
• To dismantle, operate in reverse
order.
Fig. 7.6
Fig. 7.7
Guard rail
Stop notch
