- 5 -
STEP 4:
STEP 5:

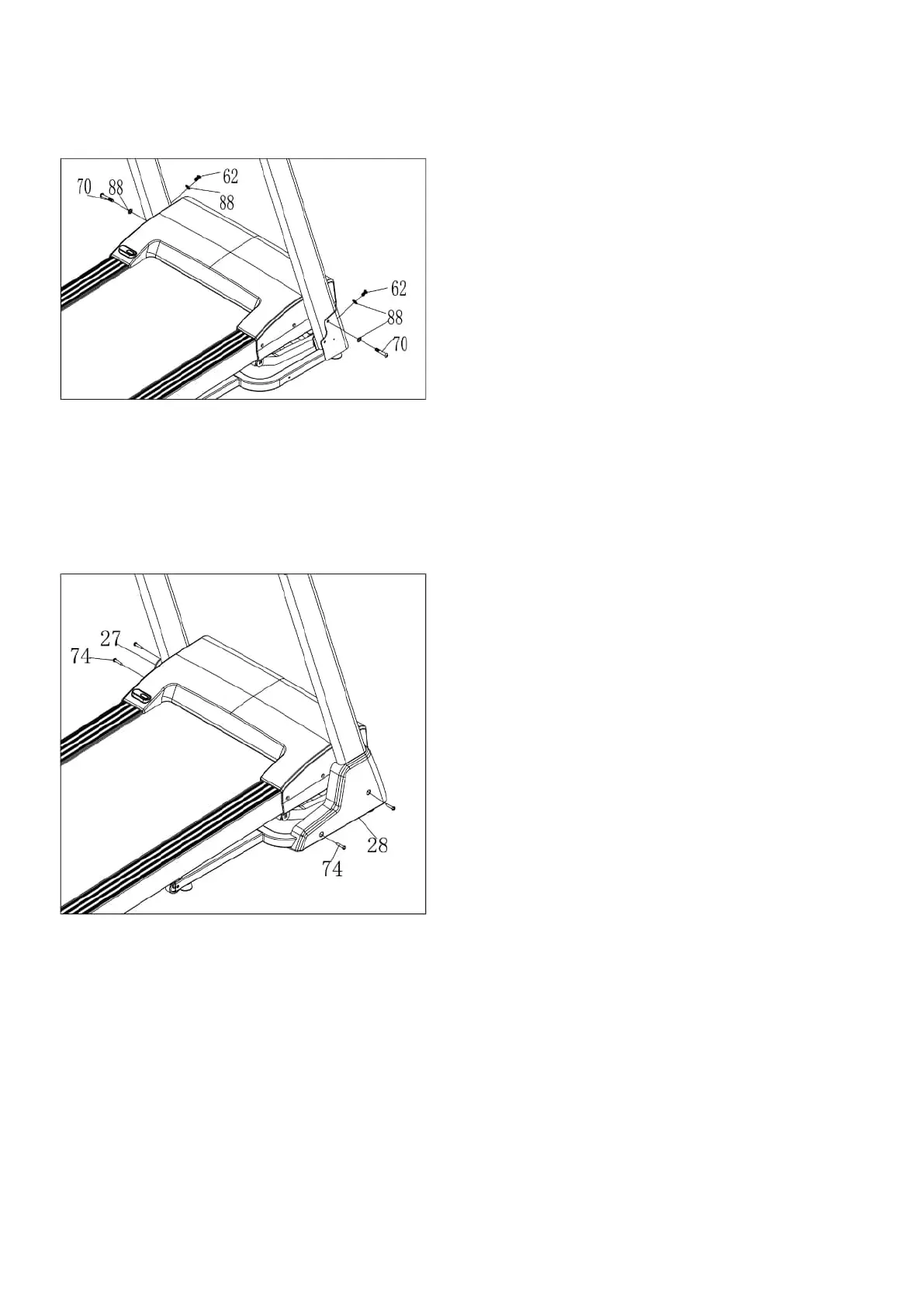

1. Use the 5# Allen wrench (10), the Bolt
(70) and the Lock washer (88) to pass
through the base and the right upright
frame, and lightly lock them on the base.
2. Use the 5# Allen wrench (10), the Bolt
(62) and the Lock washer (88) to lightly
lock the right upright frame on the base.
3. The left side is the same as the right
side, as in the left view.
Note: Keep your hands on the upright
frame during the locking process to avoid
injury from falling down.
1. Put the Right base cover (28) to the
Main frame (1), then use the Wrench with
screwdriver (12) and the Bolt (74) to lock
the Right base cover (28) onto the Main
frame (1).
2. Left side is the same as the right side.
