47
Toll Free: 877-BOSCH-99
Boschtools.com

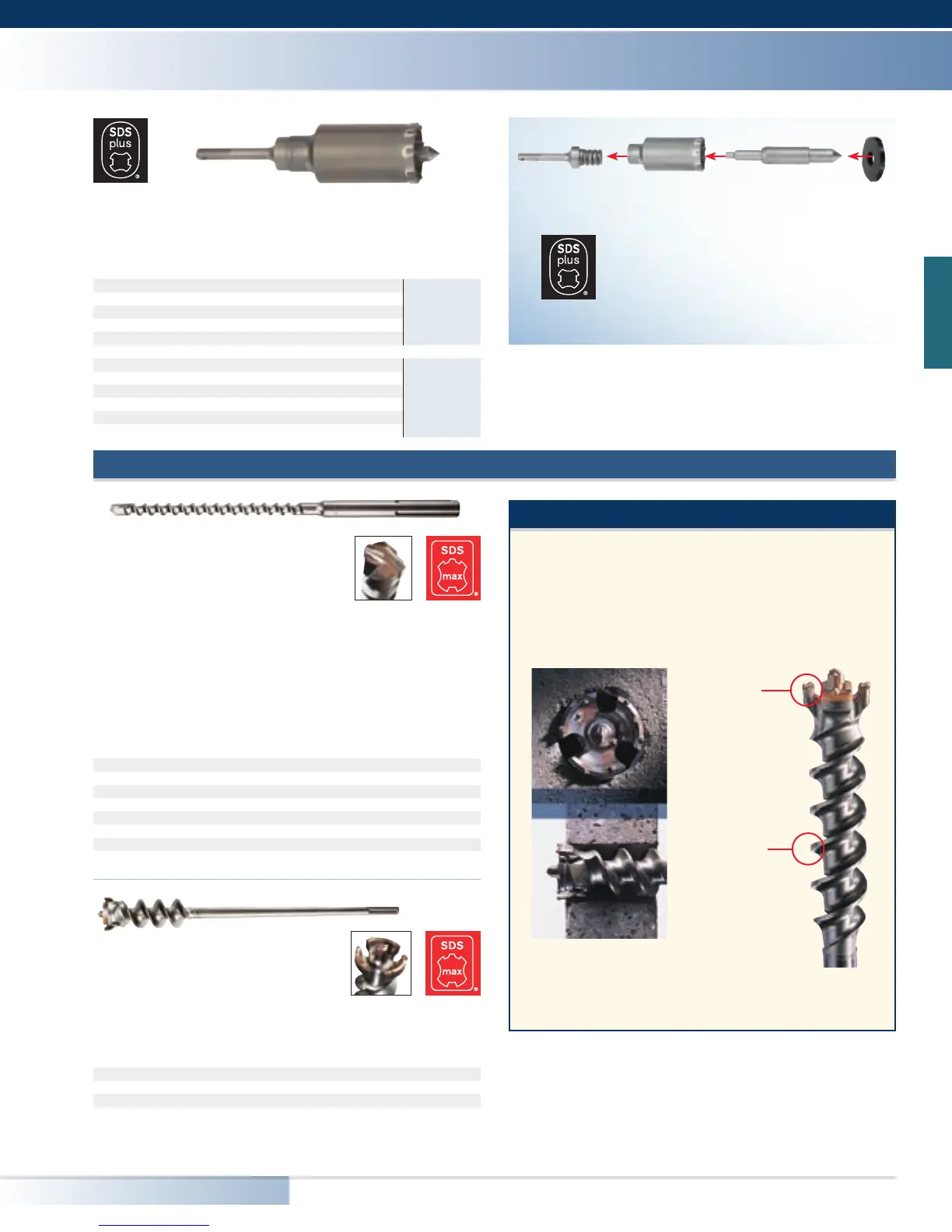

SDS-plus
®
Rotary Hammer Core Bits
Bosch SDS-plus® rotary hammer core bits are designed for core drilling with smaller
hammers with a core body length of 4-1/8" and a usable cutting depth of 3"
Centering
Pin
Thin Wall
Core Bit
SDS-plus
®
Core
Shank
Guide
Plate
Speed-Core™ Thin Core Bits
Core Bit Assembly
(1) Screw core bit onto shank
(2) Centering pin in hole
(3) Attach guide plate
SDS-max®
Hammer Carbide
SDS-plus
®
and SDS-max
®
are registered trademarks of Robert Bosch GmbH.
NOTE: Drill bits (or extension + drill bit) in excess of 8" should never exceed 600 RPM.
SDS-max® Rotary Hammer Bits
Bosch carbide rotary hammer bits feature tips that
stay sharper longer and deliver more holes within
their ANSI specification than competitors’ bits. Also,
Bosch shafts wear at a much slower rate than most
others and can take more abuse because of Bosch’s
technologically advanced conditioning process.
• Manufactured to ANSI standards, Bosch bits also meet and exceed ISO
(International Standards Organization) standards. 98% of the carbide tips
are molded to the specific ANSI size. Only 2% (specials) of all bit diameters
are ground to size
• SDS-max® rotary hammer bits not only fit Bosch SDS-max® hammers, but
also competitive SDS-max® drive hammers and Hilti hammers using TE-Y
and TE-FY shanks
Thru-Hole Bits
Item # Diameter
Usable
Length
Overall
Length
HC5005 3/8" 8" 13"
HC5010 1/2" 8" 13"
HC5011 1/2" 16" 21"
HC5012 1/2" 11" 16"
HC5013 1/2" 21" 28"
HC5015 9/16" 8" 13"
HC5016 9/16" 16" 21"
HC5017 9/16" 21" 28"
Item # Diameter
Usable
Length
Overall
Length
HC6501 1-3/4" 18" 24"
HC6511 2-1/8" 18" 24"
HC6521 2-1/2" 18" 24"
HC6531 3-1/8" 18" 24"
Thru-Hole Bit Features
• Ideal for horizontal drilling applications
• Drill all the way through material without stopping
Bosch thru-hole bits are one-piece bits designed
for fast working without the need to change shanks.
The all-in-one core with SDS-max® or Spline shank
transmits power directly to the end of the bit. In
addition, thru-hole bits are economical due to their
long life (dimensions are nominal).
Aggressive
Wild-Bore
TM
Tip
Designed for fast
break-through and
large chip removal
Special Flute
Designed for
faster chip removal
SDS-max® Thru-hole Rotary
Hammer Bits
One-piece thru-hole bits are designed for fast
working without the need to change shanks. The
all-in-one core with SDS-max® shank transmits power directly to the end of the
bit. Additionally, thru-hole bits are economical due to their long life.
Core Bit
Item #
Bit
Diameter
Center Pin
Item #
Guide Plate
Item #
Shank
Item #
T3900 1" N/A N/A
4-1/8" shank
length T3917
or
11-7/8" shank
length T3918
T3901 1-1/8" N/A N/A
T3902 1-1/4" T3925 T3930
T3903 1-3/8" T3925 T3931
T3904 1-1/2" T3925 T3932
T3905 1-3/4" T3926 T3933
4-1/8" shank
length T3919
or
11-7/8" shank
length T3920
T3906 2" T3926 T3934
T3907 2-1/2" T3926 T3935
T3908 3" T3926 T3936
T3909 3-1/2" T3926 T3937
T3910 4" T3926 T3938
Masonry/Concrete Drilling
