CHIP DEFLECTOR
Always wear eye protection.
The chip deflector is not
intended as a safety guard.
The chip deflectors help keep dust and chips
out of your face, it will not stop objects larger
than dust thrown from the bit.
To remove chip shield from bases, press
inward on tabs until it releases from base and
remove. To attach, place deflector into position
as shown in (Fig. 10). Then flex sides of
deflector while pushing until it snaps into place.
The plunge base’s chip shield can also be
flipped out.
INSTALLING TEMPLET GUIDE ADAPTER
Place templet guide adapter over the holes in
the center of the sub-base, and align the two
threaded holes in the bottom of adapter with
the countersunk holes in sub-base. Fasten
adapter with the screws provided. Note that the
adapter is reversible, so the release lever may
be positioned as desired. (Fig. 9)
-10-

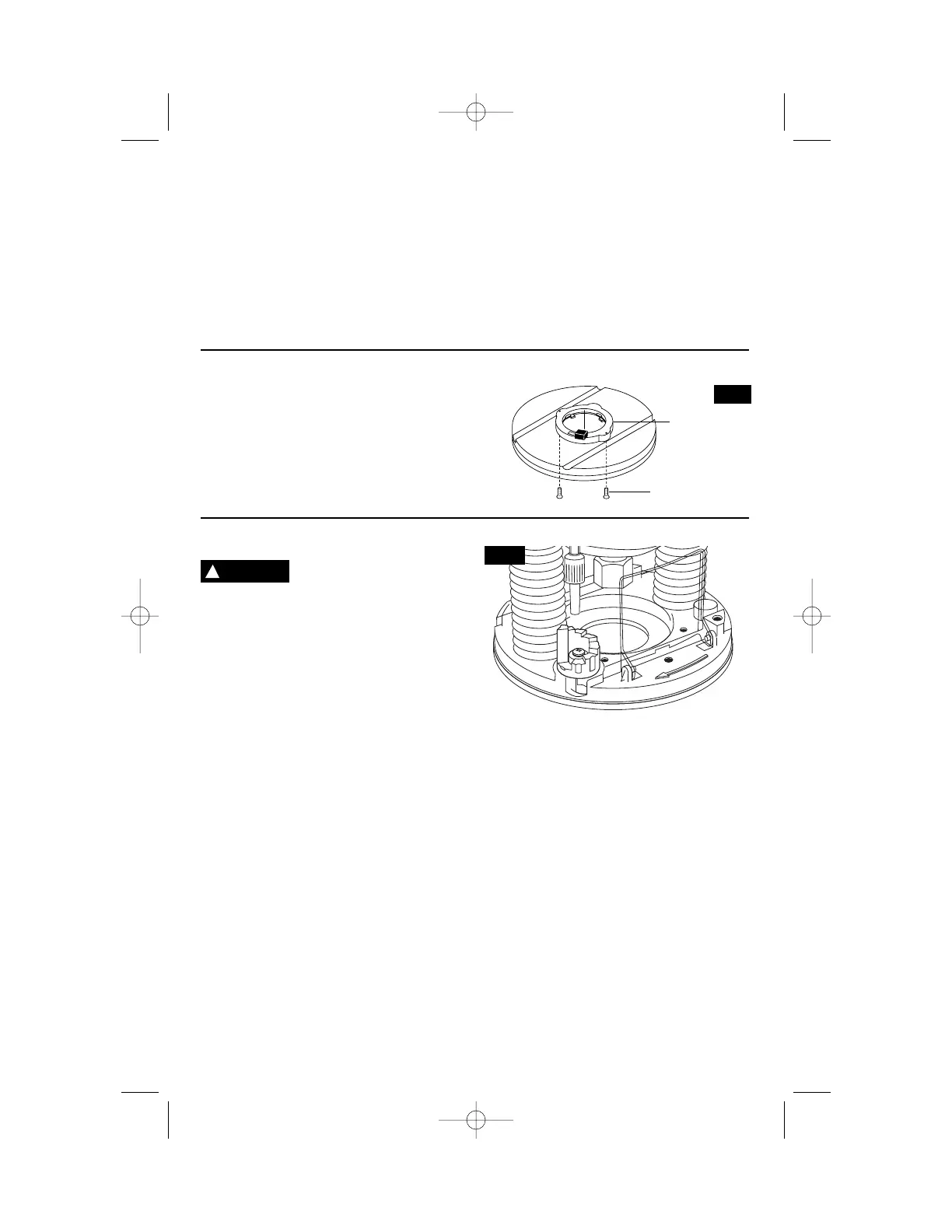

TEMPLET GUIDE
ADAPTER
MOUNTING SCREWS
FIG. 9
FIG. 10
!
WARNING
• To position switch on the left, line up the
base’s arrow with arrow on the motor
housing that is below the switch.
3. Slide motor into base until resistance in felt.
(The base’s guide pin is now engaged into
slot on motor.)
4. Turn the motor clockwise until it stops.
5. Push the motor into the base as far as it will
go.
6. Fasten the base clamp lever.
To Next Page
