Functional Description and Specifications
Disconnect the plug from the power source before making any assembly,
adjustments or changing accessories. Such preventive safety measures reduce
the risk of starting the tool accidentally.
!
WARNING

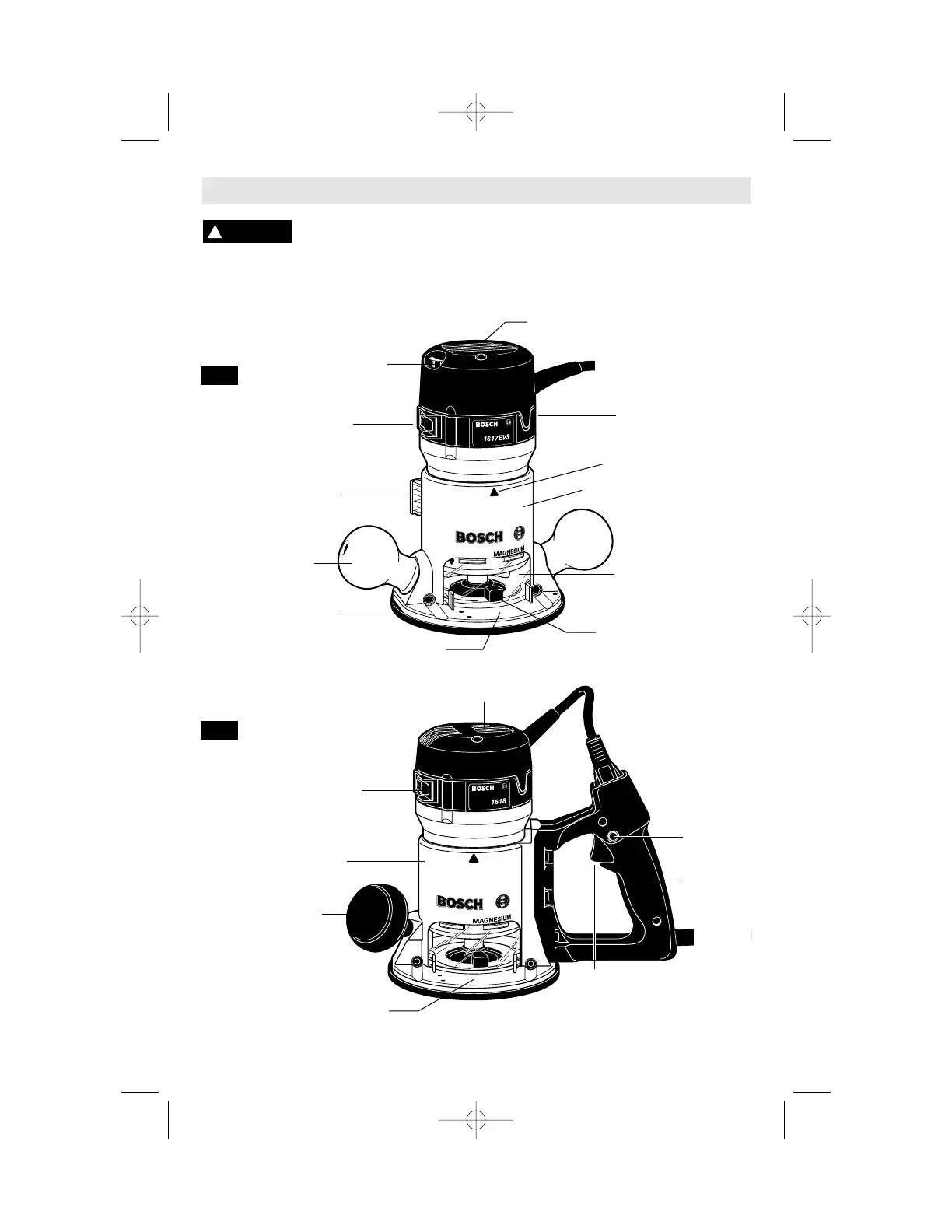

FIG. 1
SPEED CONTROL DIAL
Models 1617EVS
& 1618EVS only
SUB -BASE
TRIGGER
SWITCH
"LOCK-ON"
BUTTON
D-HANDLE
ROUND
HANDLE
BASE CLAMP LEVER
CHIP DEFLECTOR
MOTOR HOUSING
ROCKER ON\OFF SWITCH
POWER ON/OFF
SWITCH
TEMPLET GUIDE
QUICK CHANGE LEVER
MOTOR ALIGNMENT ARROW
FIG. 2
AIR VENTS
AIR VENTS
REVERSIBLE
HANDLE
BIT ROTATION ARROW
BIT ROTATION ARROW
Routers
BASE TYPE S
BASE TYPE D
BM 2610908996 5/03 5/20/03 9:06 AM Page 6

Bosch 1617EVSPK Specifications

General

Motor Power	2.25 HP
Variable Speed	Yes
Speed Range	8, 000 - 25, 000 RPM
Voltage	120V
Cord Length	10 ft
Power	2.25 HP
Collet Capacity	1/4 inch and 1/2 inch
Base Type	Fixed and Plunge
Type	Router
Amperage	12 A
Includes	Fixed Base, Plunge Base, 1/4" and 1/2" collets, wrench
