-19-
RA1170 EDGEFORMING DUST
EXTRACTION HOOD
Do not reach in area of the
bit while the router is ON
or plugged in. To avoid entangling hoses,
do not use this dust extraction hood at
the same time as any other dust
extraction hood.

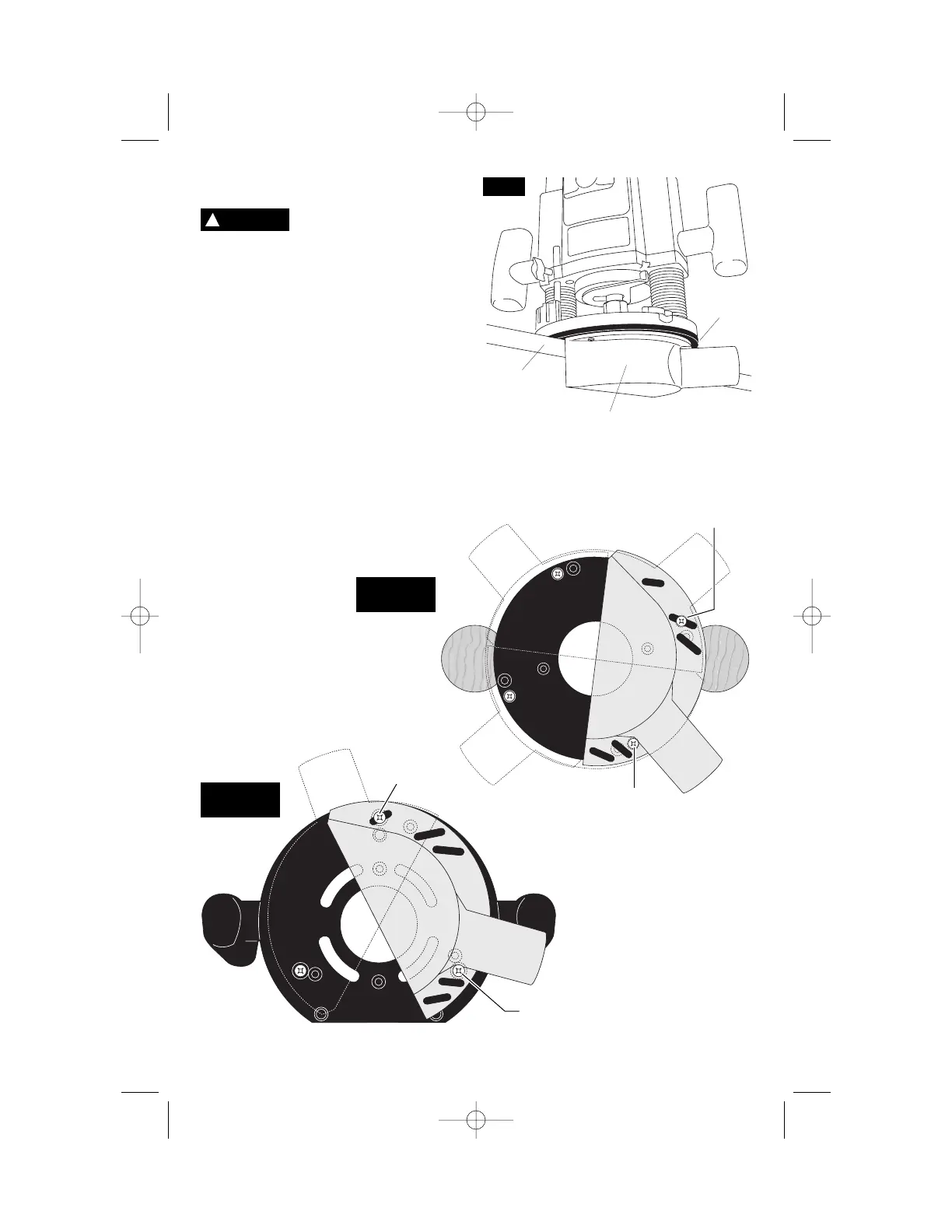

The RA1170 dust extraction hood (optional
accessory) is used for dust collection when
edge-forming (Fig. 24).
ATTACHING DUST EXTRACTION HOOD
You can attach the edge-forming hood in
several places according to your needs or
preferences. This hood is attached using two
of the screw holes on the router base that
are used to attach the router’s sub-base.
Choose the desired location for the hood.
Loosen and take out the two screws from
the router base and attach the dust
extraction hood — over the router’s sub-
base — using the screws provided with the
hood. Securely tighten the screws. (Figures
25 & 26).
DUST
EXTRACTION
HOOD
ROUTER
SUB-BASE
WORKPIECE
EDGE
!
WARNING
4mm x 16mm
SCREW
4mm x 16mm
SCREW
4mm x 16mm
SCREW
SUB-BASE
DUST
EXTRACTION
HOOD
4mm x 16mm
SCREW
FIG. 24
DUST
EXTRACTION
HOOD
FIG. 25
PLUNGE BASE
FIG. 26
OTHER BASES
BM 2610908996 5/03 5/20/03 9:06 AM Page 19

Bosch 1617EVSPK Specifications

General

Motor Power	2.25 HP
Variable Speed	Yes
Speed Range	8, 000 - 25, 000 RPM
Voltage	120V
Cord Length	10 ft
Power	2.25 HP
Collet Capacity	1/4 inch and 1/2 inch
Base Type	Fixed and Plunge
Type	Router
Amperage	12 A
Includes	Fixed Base, Plunge Base, 1/4" and 1/2" collets, wrench
