Bosch 1619EVS - Dust Collection While Edge Forming; Attaching Dust Extraction Hood

-15-
" !!$


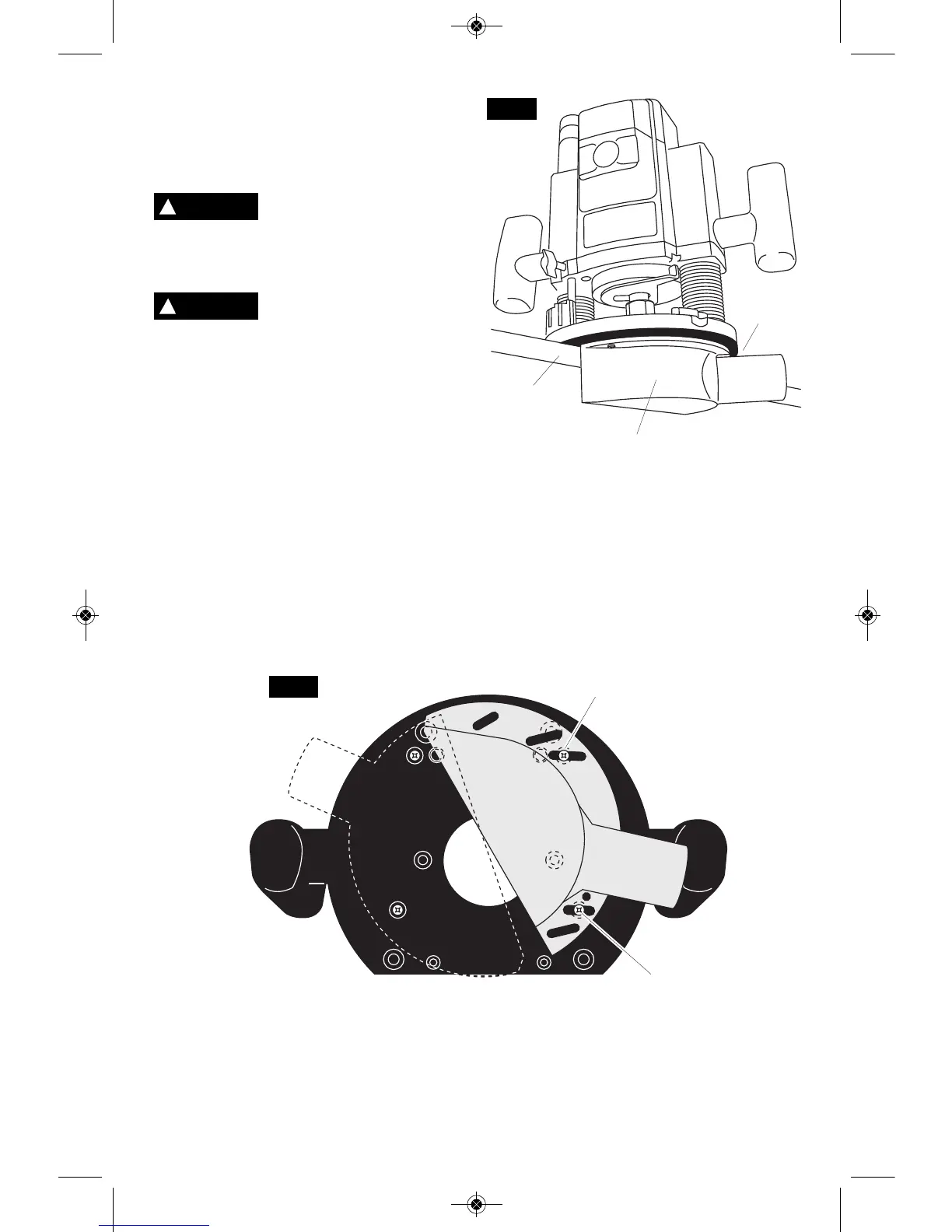

The RA1170 dust extraction hood (optional
accessory) is used for dust collection when
edge-forming (Fig. 15).
,(+(5+<5+,9:;(5+;/,:,
05:;9<*;065: (5+ ;663
4(5<(3-69<:,6-;/,:,(**,::690,:
6 56; 9,(*/ 05 (9,( 6- ;/, )0; >/03, ;/,
96<;,90:6973<..,+05
!6(=60+,5;(5.305./6:,:
+6 56; <:, ;/0: +<:;
,?;9(*;065 /66+ (; ;/, :(4, ;04, (: (5@
6;/,9+<:;,?;9(*;065/66+
!!" !%!!
You can attach the hood in several places
according to your needs or preferences. This
hood is attached using two of the screw holes
on the router base that are used to attach the
router’s sub-base. Choose the desired
location for the hood. Loosen and take out the
two screws from the router base and attach
the dust extraction hood — over the router’s
sub-base — using the screws provided with
the hood. Securely tighten the screws (Fig.
16).
The dust extraction hood itself is sized to
accept 35mm vacuum hoses. Also included is
the VAC002 adapter that will connect the
hood to 1-1/4’’ and 1-1/2’’ vacuum hoses.
!
WARNING
!
CAUTION
?44
$
" 
" !
%!!

?44
$
FIG. 16
" !
%!!

"!
" 
$

