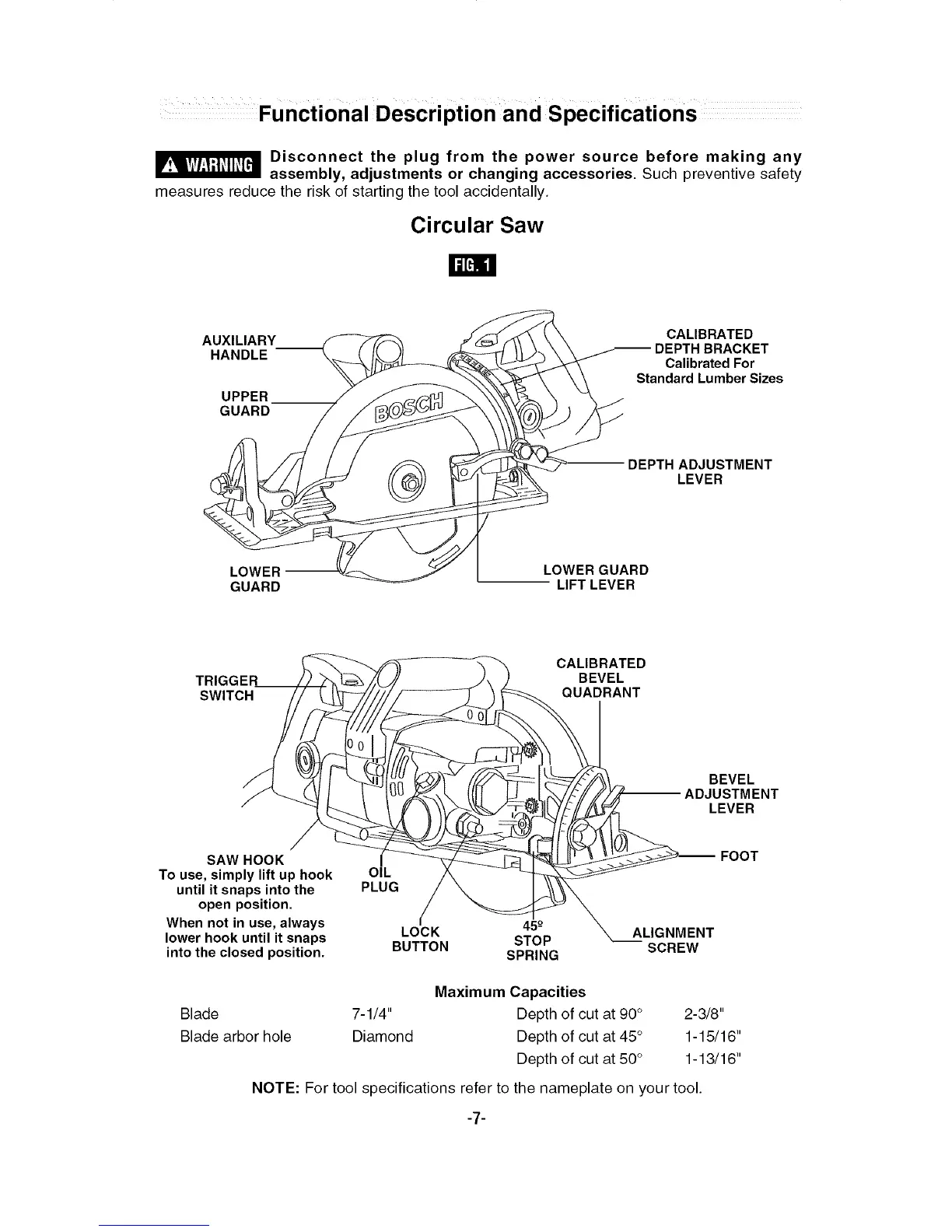

Functional Description and Specifications
_ isconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
Circular Saw
I1=1[_151
AUXILIARY CALIBRATED
HANDLE BRACKET
Calibrated For
Standard Lumber Sizes
UPPER
GUARD
ADJUSTMENT
LEVER
LOWER LOWER GUARD
GUARD --LIFT LEVER
TRIGGER
SWITCH
CALIBRATED
BEVEL
QUADRANT
BEVEL
LEVER
SAW HOOK
To use, simply lift up hook OIL
until it snaps into the PLUG
open position.
When not in use, always 45 -o
lower hook until it snaps LOCK STOP
into the closed position. BUTTON SPRING
ALIGNMENT
SCREW
FOOT
Maximum Capacities
Blade 7-1/4" Depth of cut at 90 ° 2-3/8"
Blade arbor hole Diamond Depth of cut at 45 ° 1-15/16"
Depth of cut at 50 ° 1-13/16"
NOTE: For tool specifications refer to the nameplate on your tool.
-7-
