2 Overview
The Bosch line of intelligent zone sensors provides the function and fl exibility needed
to manage the conditions important to the comfort and productivity of the zone
occupants. The ZS series are available in a variety of zone sensing combinations to
address most application needs. These combinations include temperature, relative
humidity, and carbon dioxide (CO2) for indoor air quality (IAQ) improvement.
They are built to be fl exible, allowing for easy customization of what the user/
technician sees. Designed to work with the DDC Control Air 5600, 5830, and 6120
controllers, the ZS sensor line includes the ZS Base, ZS Slidebar, ZS Push, and ZS
Manager.

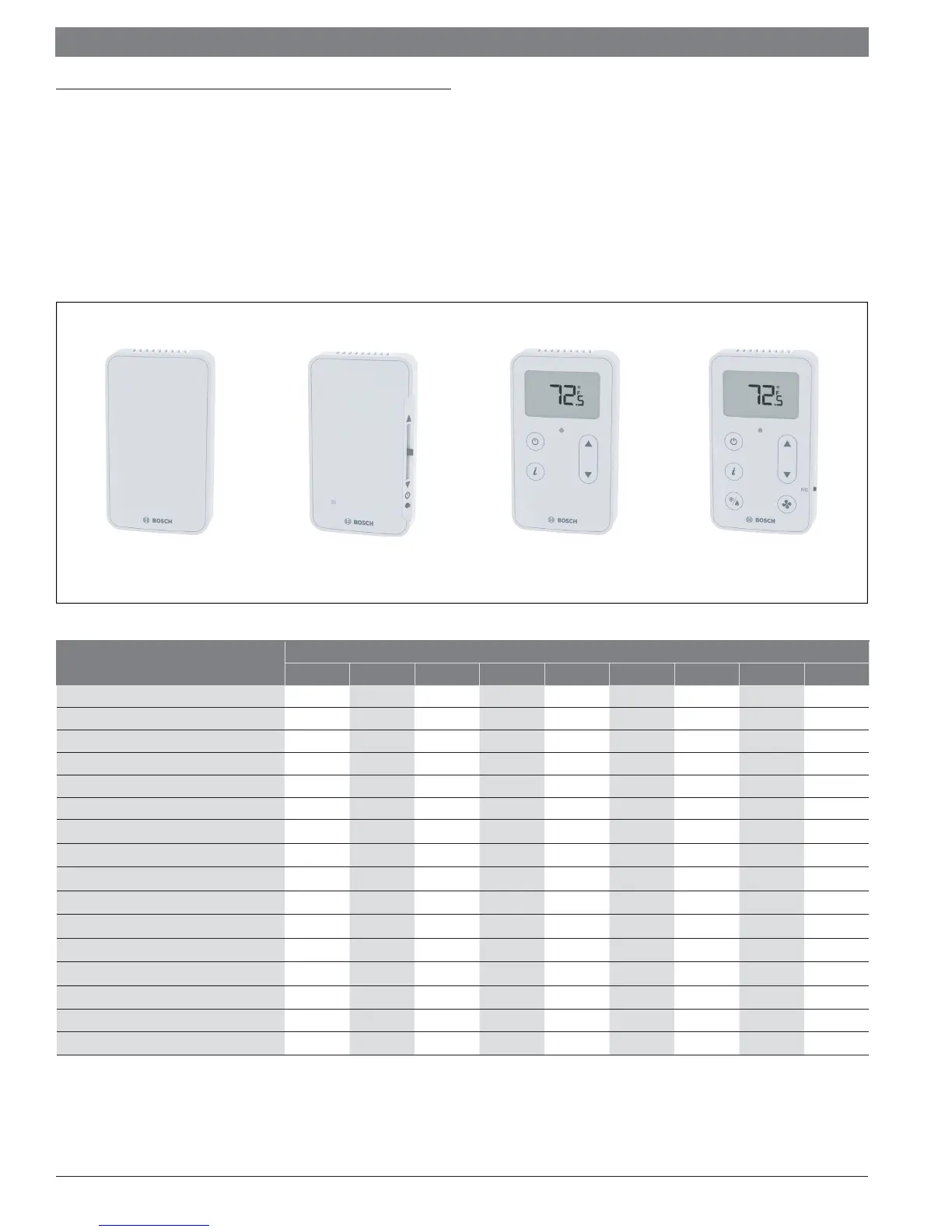

Figure 1
ZS-1, ZS-1H
ZS Base
ZS-1S
ZS Slidebar
ZSP-1, ZSP-1H,
ZSP-1HC
ZS Push
ZSM-1, ZSM-1H,
ZSM-1HC
ZS Manager*
ZS Series Sensors
Features
Model
ZS-1 ZS-1H ZS-1S ZSP-1 ZSP-1H ZSP-1HC ZSM-1 ZSM-1H ZSM-1HC
Part Number
8733951033 8733951034 8733951035 8733951036 8733951037 8733951038 8733951039 8733951040 8733951041
Temperature

Humidity

CO2

Neutral color

Addressable / supports daisy-chaining

Hidden communication port

Mounts on standard 2” x 4” electrical box

Occupancy status indicator

Push-button occupancy override

Set-point adjust

Large, easy-to-read LCD

Alarm indicator

Fan Mode Control (ON/AUTO)

System Mode Control (HEAT/COOL/AUTO/OFF)

°F to °C conversion button**

Table 1
 Previously known as FHP560, I/O Zone 583, and FLEX 6126 respectively.
 Previously known as ZS Base, ZS Plus, ZS Pro and ZS Pro-F respectively.
* Available only by special request if ordered in 2018.
** Readout only.
